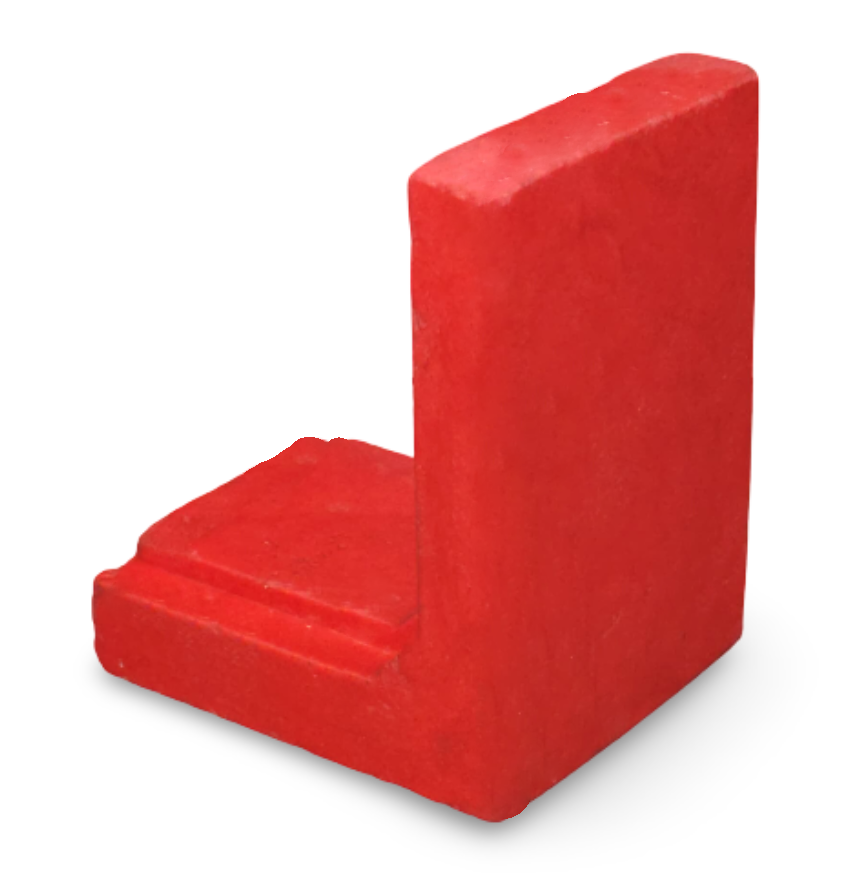

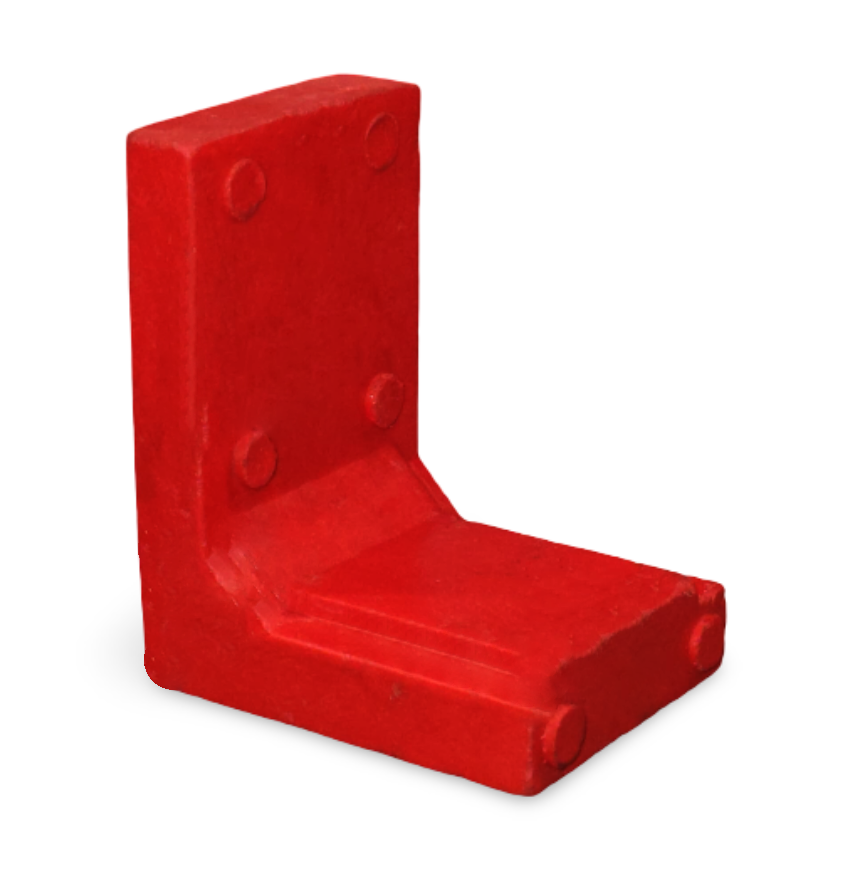

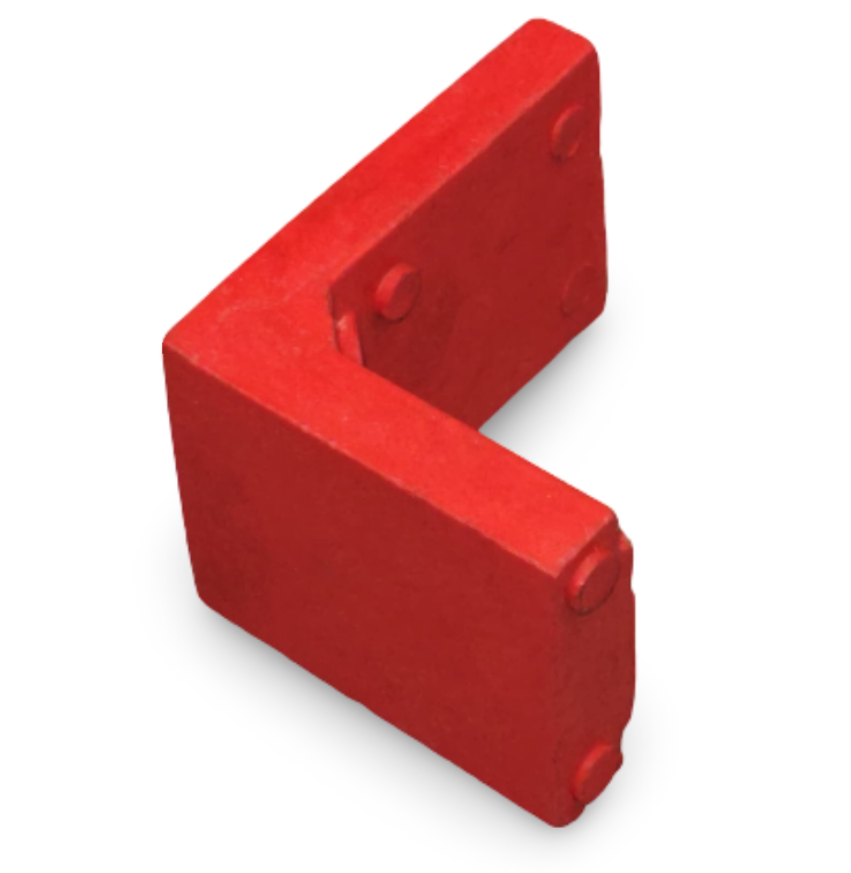

INSULATOR L-60MM
- Category: INSULATOR
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100
L-60 mm Insulator is a 60mm height electrical support insulator used for mounting and isolating live parts like busbars in panels and switchboards.
Enquire on WhatsAppProduct Details
Model: L-60
Height: 60 mm
Diameter (Approx.): 30 mm to 45 mm (varies by make)
Material: DMC (Dough Molding Compound) or Thermoset resin
Insert Material: Brass (threaded)
Thread Size: Commonly M6 or M8
Rated Voltage: Up to 660V AC
Color: Usually red or brown
Flame Resistance: UL94-V0 grade (in standard versions)
Temperature Range: -40°C to +130°C
Key Features
High mechanical and dielectric strength
Strong thermal insulation
Non-hygroscopic and weatherproof
Compact, easy-to-install cylindrical shape
Flame-retardant and durable
Applications
Busbar support in electrical panels
Isolation of live components in control cabinets
Switchgear and distribution boards
Industrial and commercial power control systems
Capacitor and transformer base insulation
