FAN JG-AC-9025 ( 3.5 INCH)
- Category: PANEL COOLING FAN
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

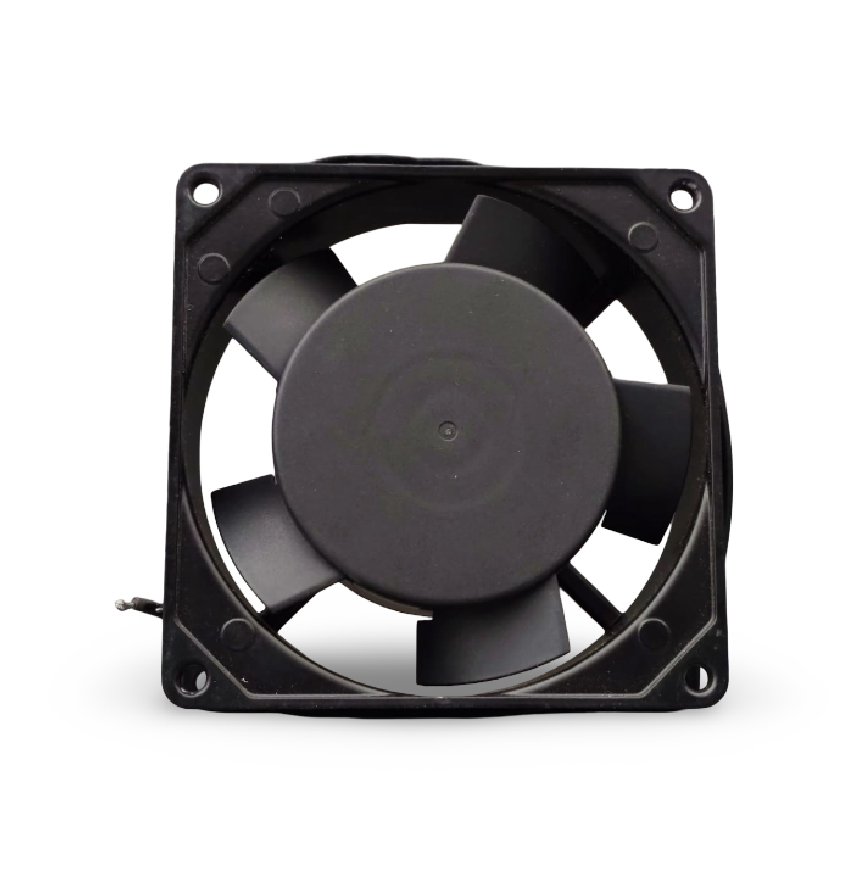

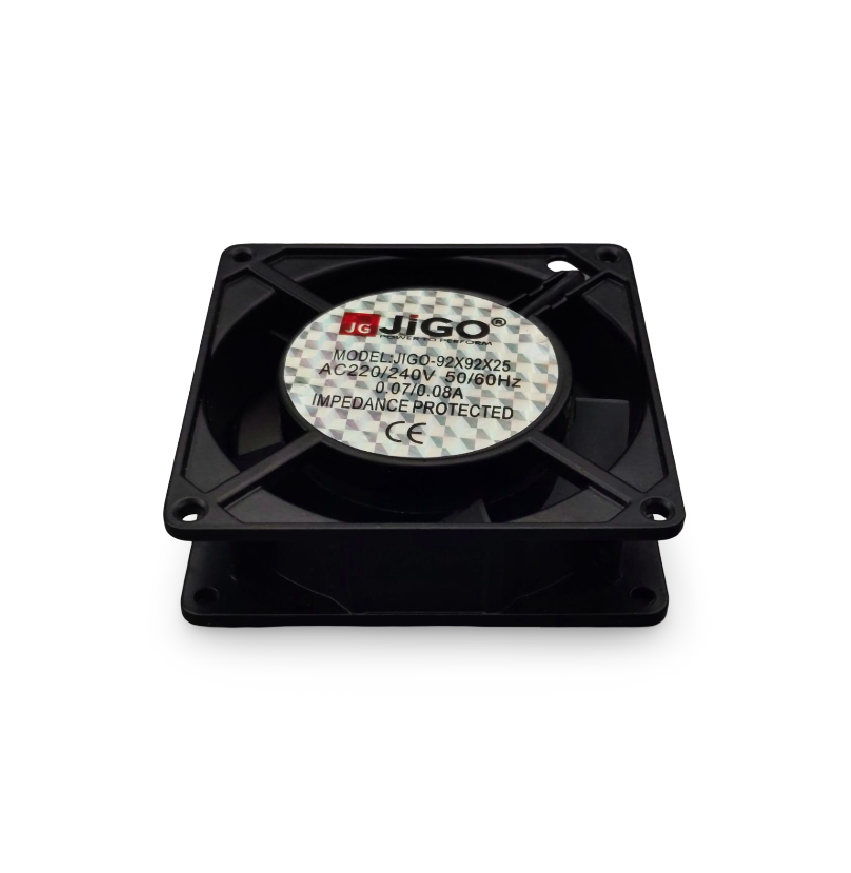

The JIGO JG-AC-9025 is a 3.5-inch AC panel cooling fan designed for effective ventilation in control panels, electrical cabinets, and compact industrial equipment. With quiet operation, durable construction, and long-life bearings, it offers dependable performance in demanding environments.
Enquire on WhatsAppProduct Details:
Model: JG-AC-9025
Size: 90 × 90 × 25 mm
Frame Type: Square
Operating Voltage: AC 220–240V, 50/60 Hz
Power Consumption: Approx. 15–25 W
Speed: 2600–3000 RPM
Airflow: ~40–55 CFM
Bearing Type: Sleeve or Ball Bearing (based on model)
Frame Material: Die-cast aluminum
Blade Material: Flame-retardant plastic (PBT)
Motor Protection: Impedance protected
Operating Temperature: –10°C to +65°C
Key Features:
Compact 3.5" size fits smaller enclosures
Strong airflow with low noise operation
Long-life bearing options (sleeve or ball)
Corrosion-resistant aluminum frame
Reliable performance in 24/7 operation
Easy panel mounting with standard hole spacing
Applications:
Electrical and control cabinets
Power supplies and inverters
Small automation systems
Battery backup/UPS systems
Telecom/network equipment
HVAC system modules
