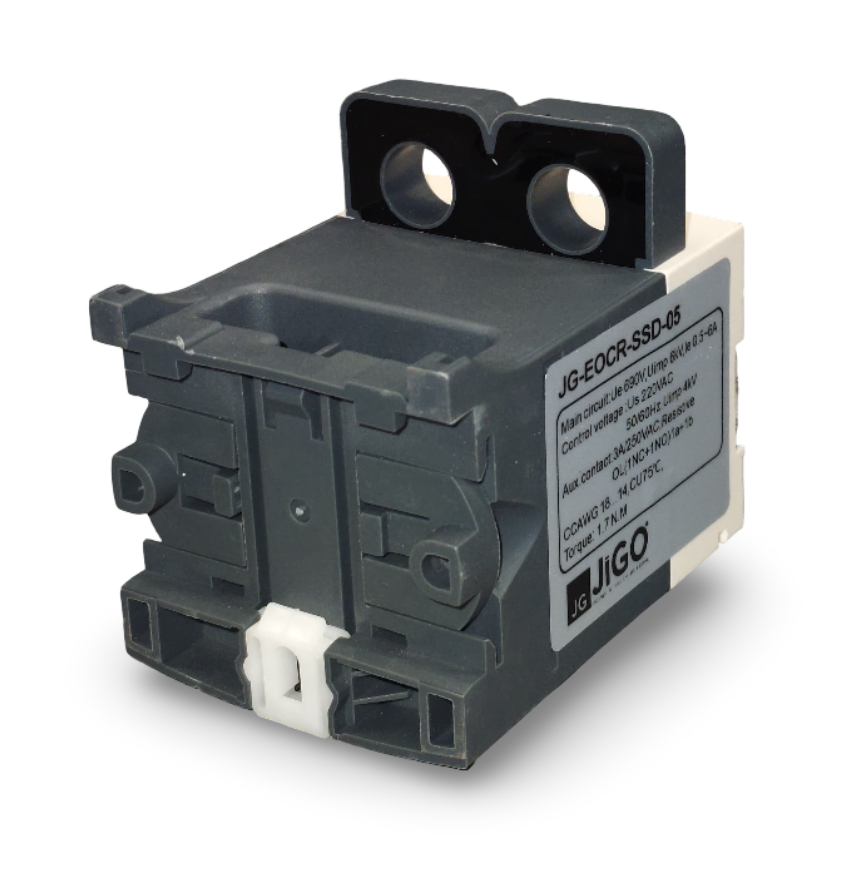

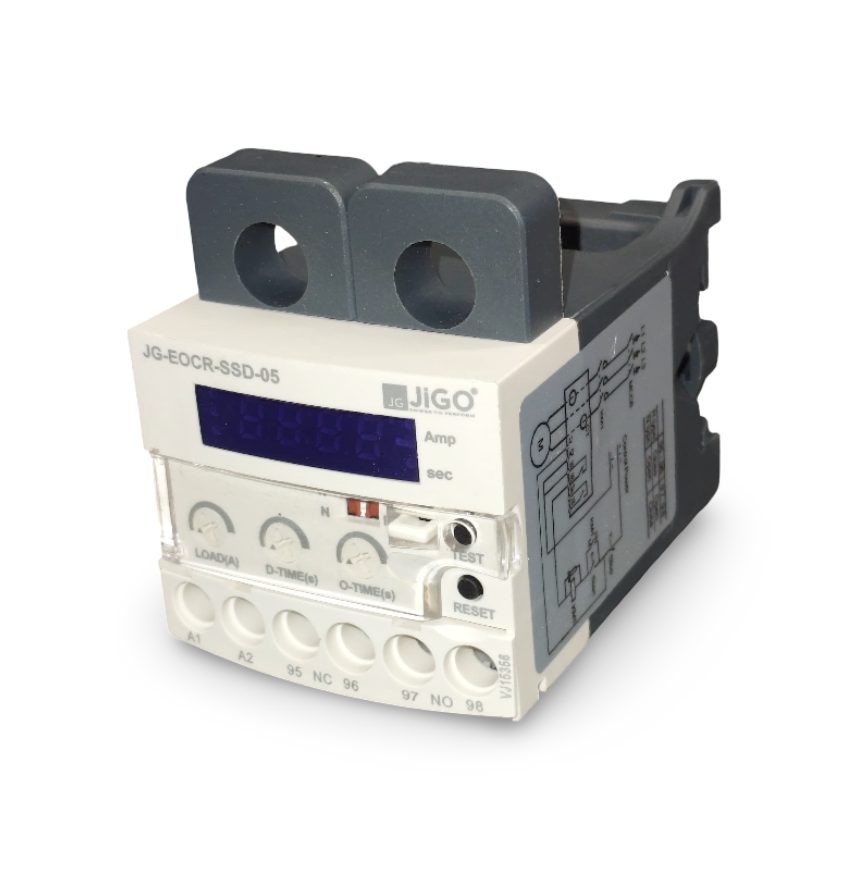

JG-EOCR-SSD-05-220AC Thermal Overload Relay
- Category: OVER LOAD RELAYS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
JG-EOCR-SSD-05-220AC is a digital motor protection relay with built-in display and advanced current sensing, ideal for overload and phase protection of motors operating at 220VAC. It ensures reliable motor control with adjustable settings and quick fault detection.
Enquire on WhatsAppProduct Details
Model: JG-EOCR-SSD-05-220AC
Rated Voltage: 220VAC
Current Range: 0.5A to 5A (adjustable)
Display: Digital 7-segment LED display
Trip Settings: Overcurrent, phase loss, unbalance, locked rotor
Output Contact: 1C (changeover contact), 5A @ 250VAC
Trip Time: Adjustable (Class 10, 20, 30)
Reset Type: Manual / Auto
Mounting Type: DIN rail or screw mount
Indicator Lights: LED indicators for Power, Trip, Phase Fault
Temperature Range: -10°C to +55°C
Enclosure: Flame-retardant plastic housing
Weight: Approx. 180g
Key Features
Wide current protection range (0.5A–5A)
Clear digital display for real-time monitoring
Multi-fault protection (OC, PL, UB, LR)
LED fault indication for easy diagnostics
Compact design ideal for MCC & control panels
Auto and manual reset modes
High durability and precision relay switching
Applications
Industrial motor protection
HVAC systems
Pumps and compressors
Textile and printing machinery
Conveyor belts and elevators
MCC Panels & Starter panels
Automation systems in factories and buildings
