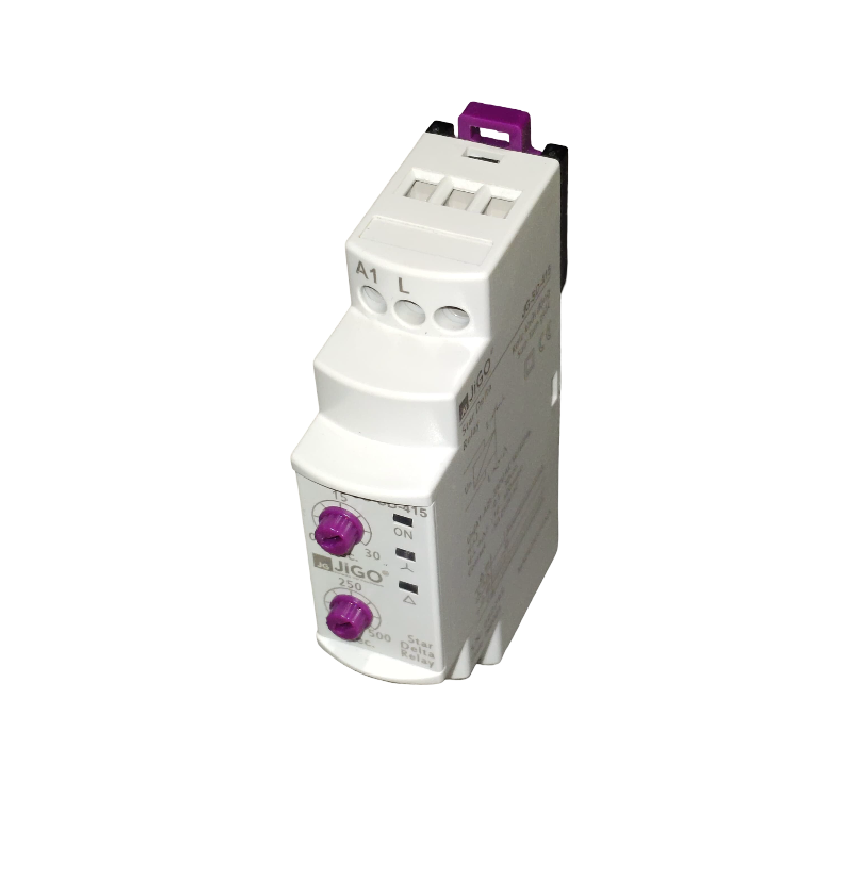

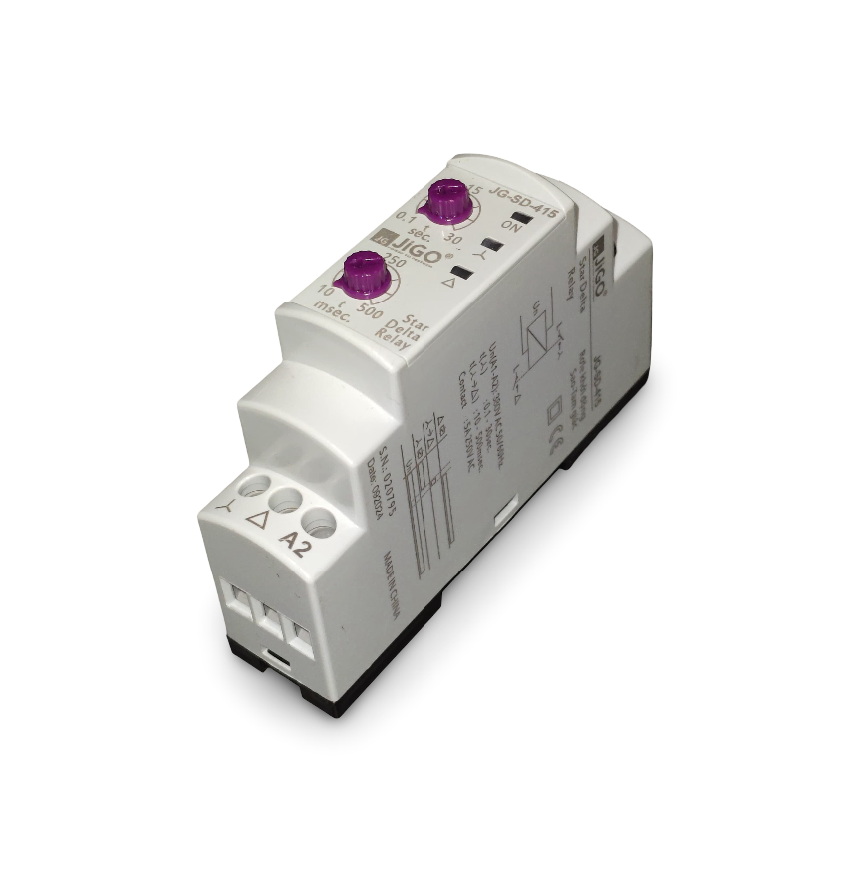

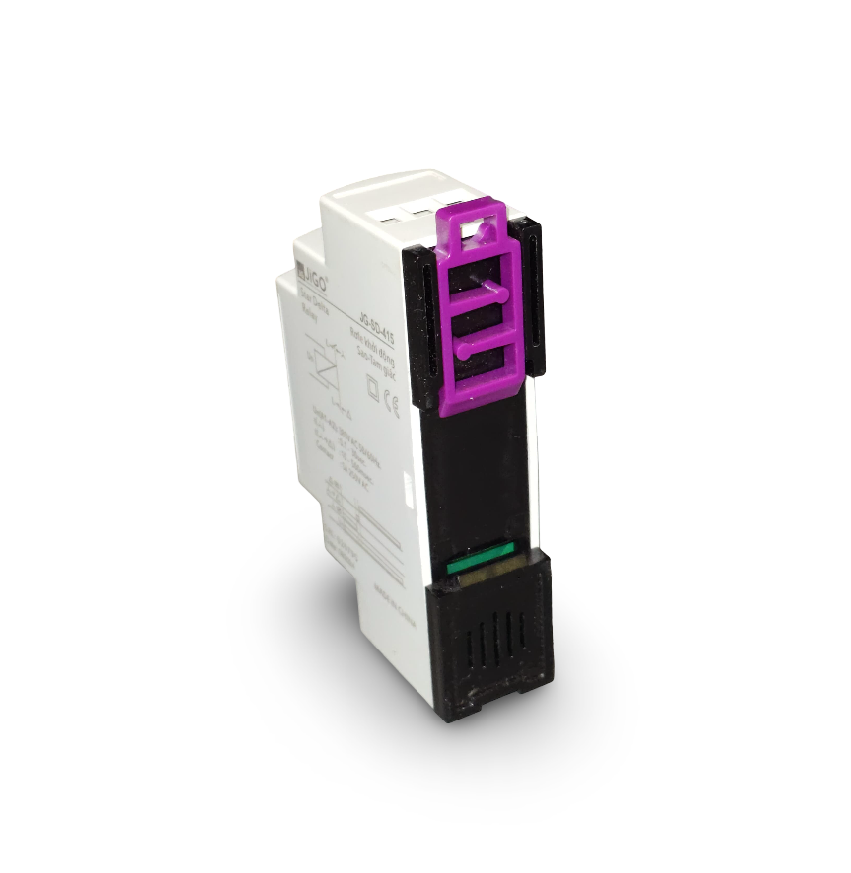

JG-SD-415 Timer Relay
- Category: TIMERS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 700
The JG-SD-415 is a Star-Delta Timer built to control the transition from star to delta configuration in motor starters. Operates on 415V AC, helping reduce starting current and extending motor life.
Enquire on WhatsAppProduct Details:
Model: JG-SD-415
Type: Star-Delta Timer
Input Voltage: 415V AC
Time Range:
Star Time: 0 to 30 seconds adjustable
Delta Delay: ~50–100ms (internal)
Contact Configuration: 2 Changeover relays (SPDT)
Indication: LED indicators for power ON and timing
Mounting: DIN rail / panel mounting
Material: Durable ABS body
Key Features:
Operates directly on 415V AC supply
Time delay adjustment for precise motor start control
Compact and rugged design
Quick DIN rail installation
Long operational life with stable performance
Clear LED indicators for operational clarity
Applications:
Industrial motor starters
Textile, cement, and plastic machinery
Pumps, blowers, fans
HVAC systems and compressors
Automated manufacturing units
