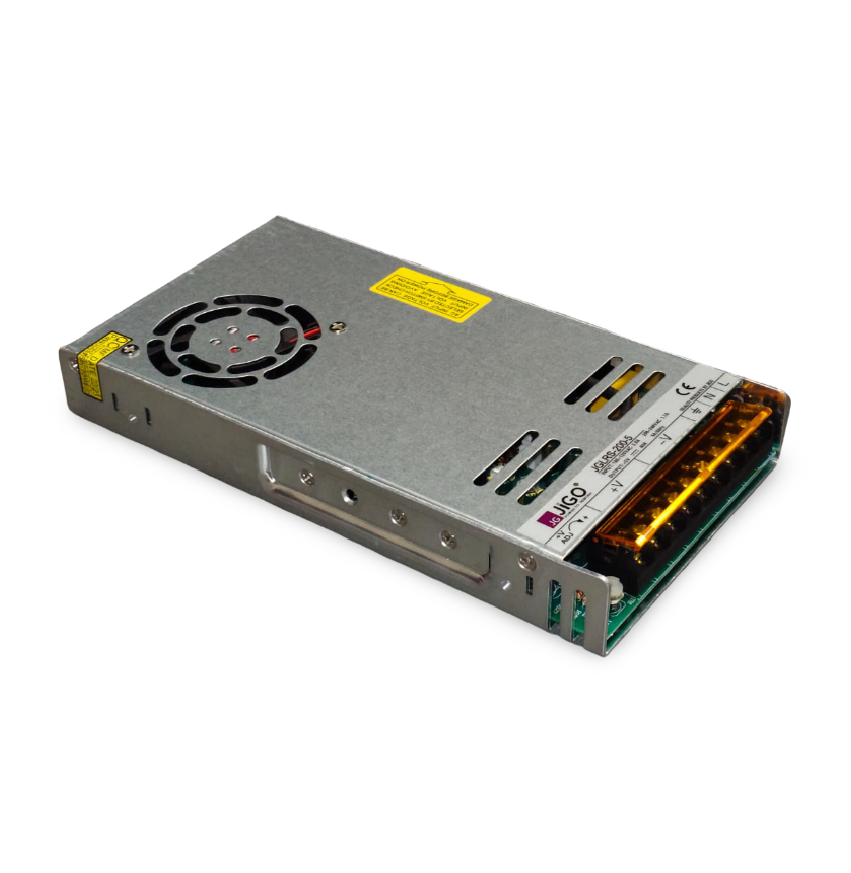

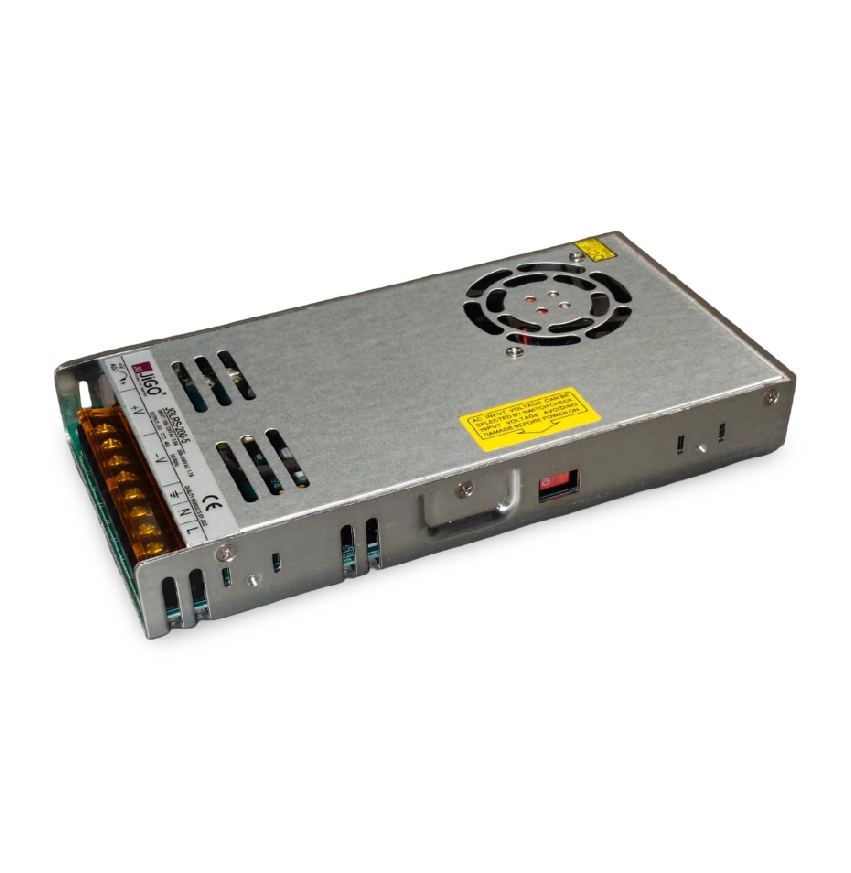

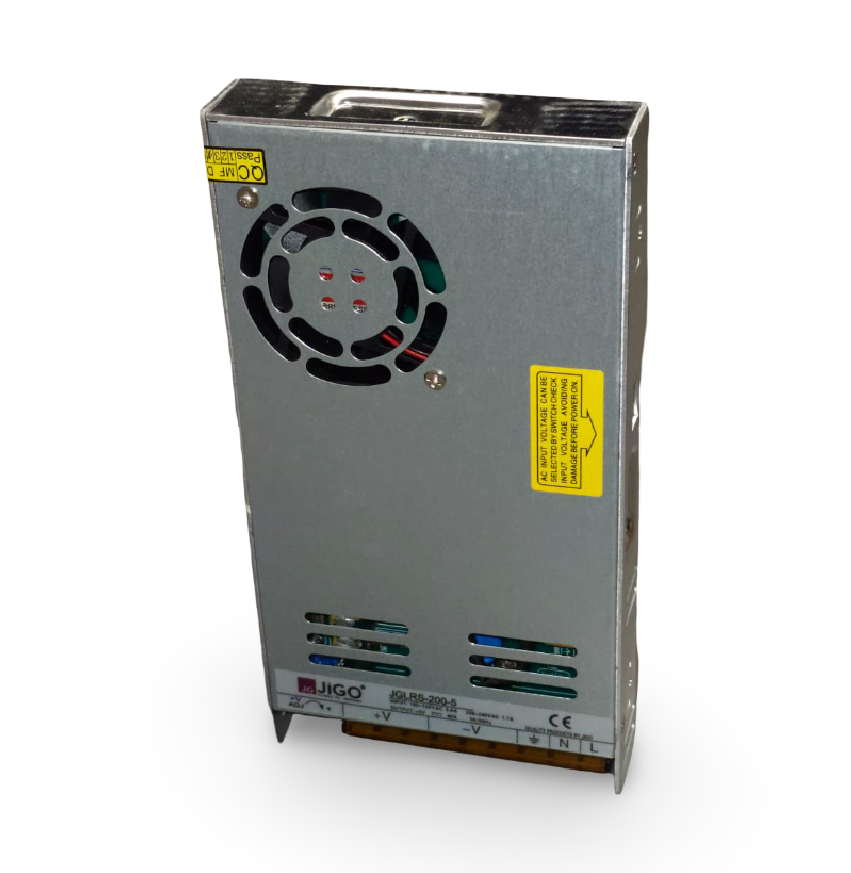

JGLRS-200-5 SMPS Power Supply
- Category: POWER SUPPLY
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2500
The JGLRS-200-5 is a heavy-duty 200W DIN rail-mounted power supply that delivers a stable 5V DC output at 40A. Designed for high-performance industrial and automation environments, it ensures dependable power delivery, advanced protections, and space-saving DIN rail integration.
Enquire on WhatsAppProduct Details:
Model: JGLRS-200-5
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 5V DC
Output Current: 40A
Output Power: 200W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 83%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Material: Flame-retardant plastic housing
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (power status)
Key Features:
High-output 5V DC at 40A for large-scale or high-demand systems
Excellent reliability with low ripple and noise
Built-in full protection for equipment safety
Compact, DIN rail-compatible design for panel space efficiency
Silent fanless operation with natural air cooling
Ideal for continuous-use industrial environments
Applications:
Industrial automation requiring high-current 5V supply
Embedded systems, microcontrollers, and logic circuits
Communication, networking, and server peripherals
Access control and large-scale CCTV systems
R&D labs, testing stations, and custom 5V projects
Power-hungry LED systems and 5V distribution panels
