GV2PM20 MPCB 13-18A
- Category: MPCB's
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2500
Jigo GV2PM20 3-pole Motor Protection Circuit Breaker (MPCB) with adjustable 13-18 A thermal overload setting and magnetic short-circuit protection. Rotary ON/OFF/TRIP knob with TEST function, rated up to 690 V AC 50/60 Hz, DIN-rail mountable. Ideal for three-phase motor starter and control panel applications.
Enquire on WhatsAppThe Jigo GV2PM20 is a compact 3-pole Motor Protection Circuit Breaker (MPCB) designed to protect three-phase motors against overload, short-circuit and phase failure. The thermal overload setting is adjustable from 13 A to 18 A through the front dial, allowing precise matching to the motor's full-load current.
The rotary ON/OFF/TRIP handle gives clear status indication and positive isolation, while the built-in TEST function allows quick verification of the trip mechanism. The GV2-type frame mounts directly on a standard 35 mm DIN rail and accepts standard auxiliary contact accessories.
Typical applications include motor starter combinations, control panels, pumps, compressors, machine tools and general industrial automation.

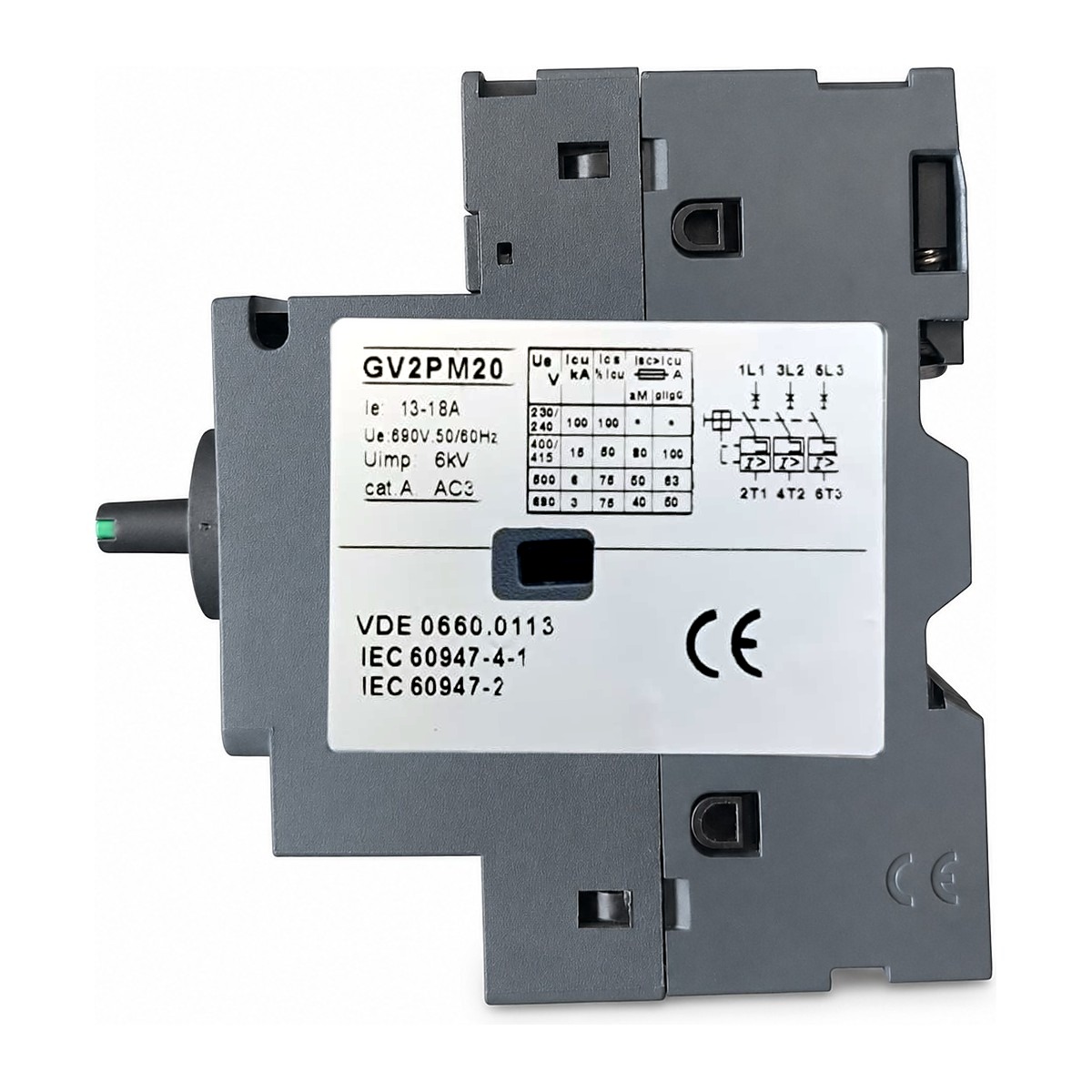

- Model: GV2PM20 | Brand: Jigo
- Type: Motor Protection Circuit Breaker (MPCB), 3-Pole
- Current setting range (Ie): 13-18 A, adjustable via front dial
- Rated operational voltage (Ue): up to 690 V AC, 50/60 Hz
- Rated impulse withstand voltage (Uimp): 6 kV
- Breaking capacity (Icu): 100 kA at 230/240 V; 15 kA at 400/415 V
- Utilization category: AC-3 (cat A)
- Protection: Adjustable thermal overload + magnetic short-circuit release
- Operation: Rotary knob ON / OFF / TRIP with TEST function
- Mounting: 35 mm DIN rail / screw fixing
- Standards: IEC 60947-4-1, IEC 60947-2, VDE 0660 | CE marked
Package contents: 1 x Jigo GV2PM20 Motor Protection Circuit Breaker (13-18 A). Warranty as per manufacturer's terms.
The Jigo GV2PM series is also available in other current setting ranges - contact Arjun Trading Company, Ludhiana for the rating you need and for bulk pricing.
