LA38-11-2NOX2NC Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100

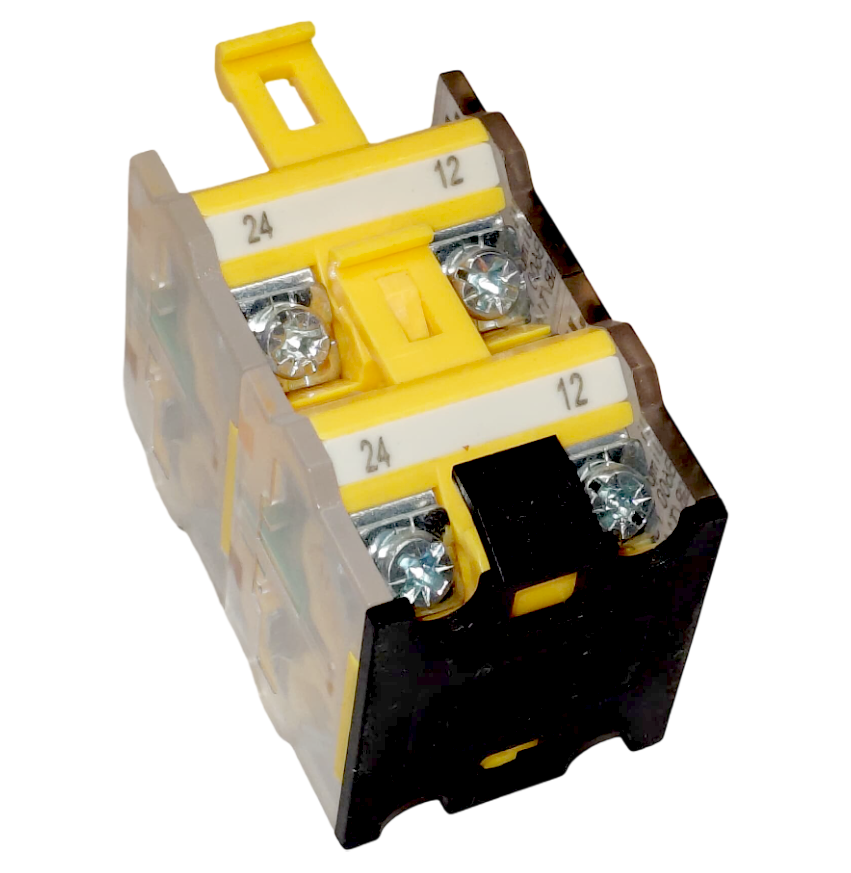

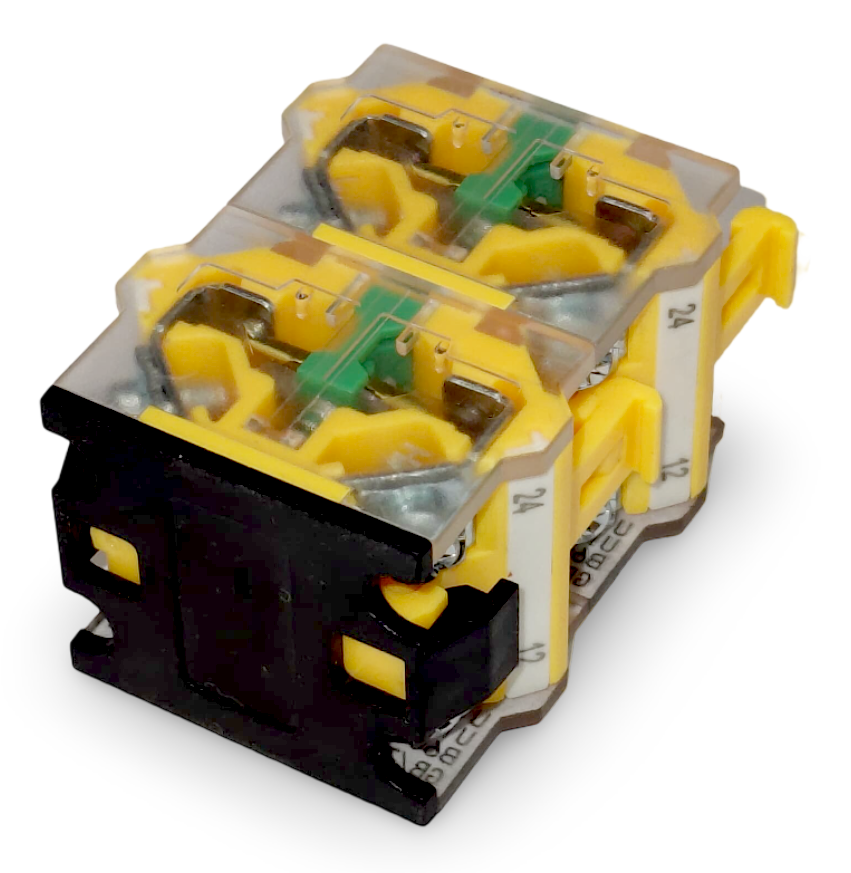

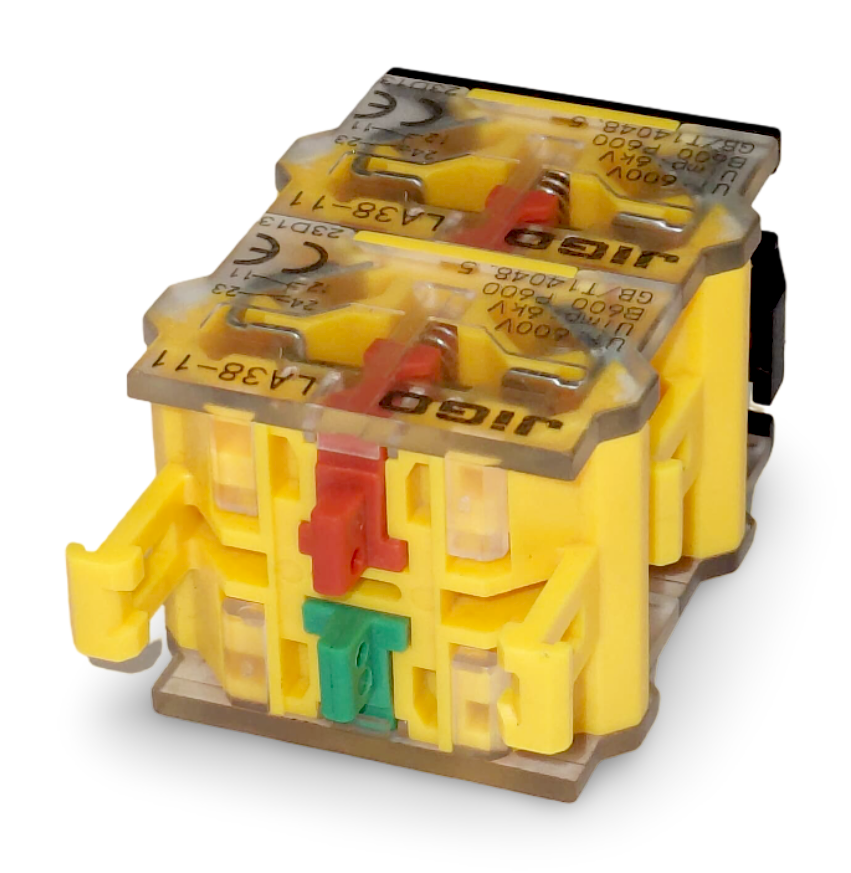

LA38-11-2NO+2NC is a 22mm modular push button switch featuring 2 Normally Open (NO) and 2 Normally Closed (NC) contact points. Ideal for complex control circuits requiring simultaneous open/close operations.
Enquire on WhatsAppProduct Details
Model: LA38-11-2NO+2NC
Type: Push Button (Momentary or Latching, depending on variant)
Contact Configuration: 2 × NO + 2 × NC
Mounting Hole Diameter: 22mm
Rated Voltage: AC up to 660V / DC up to 440V
Rated Current: 10A
Body Material: High-strength plastic or alloy
Operation Type: Momentary (standard) / Latching (optional)
Terminal Type: Screw or clamp terminals
Color Options: Red, Green, Yellow, Blue, Black
Key Features
Dual NO and NC contacts for versatile wiring
Easy installation with panel-mount design
Long mechanical life (≥1 million operations)
Flame-retardant and shock-resistant housing
High electrical endurance
Clearly marked terminals for easy wiring
Compatible with multiple control panel standards
Applications
Industrial Control Panels
Machine Start/Stop Systems
Elevator and Lift Panels
Conveyor Controls
Power Distribution Boards
PLC & Automation Interfaces
Emergency Control Systems
