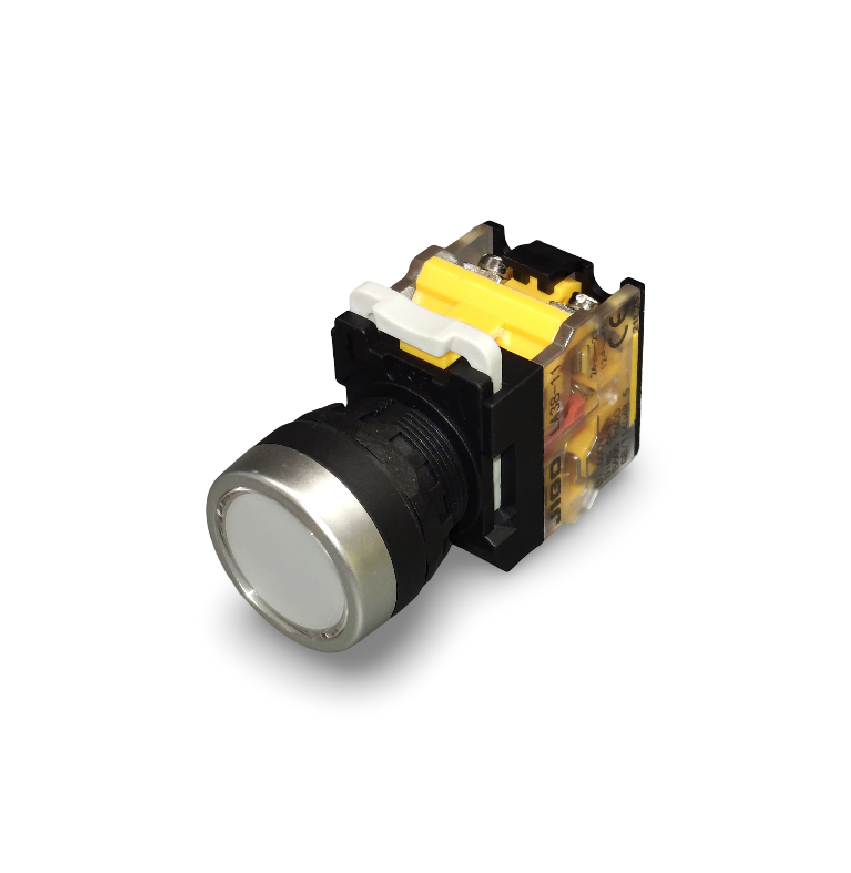

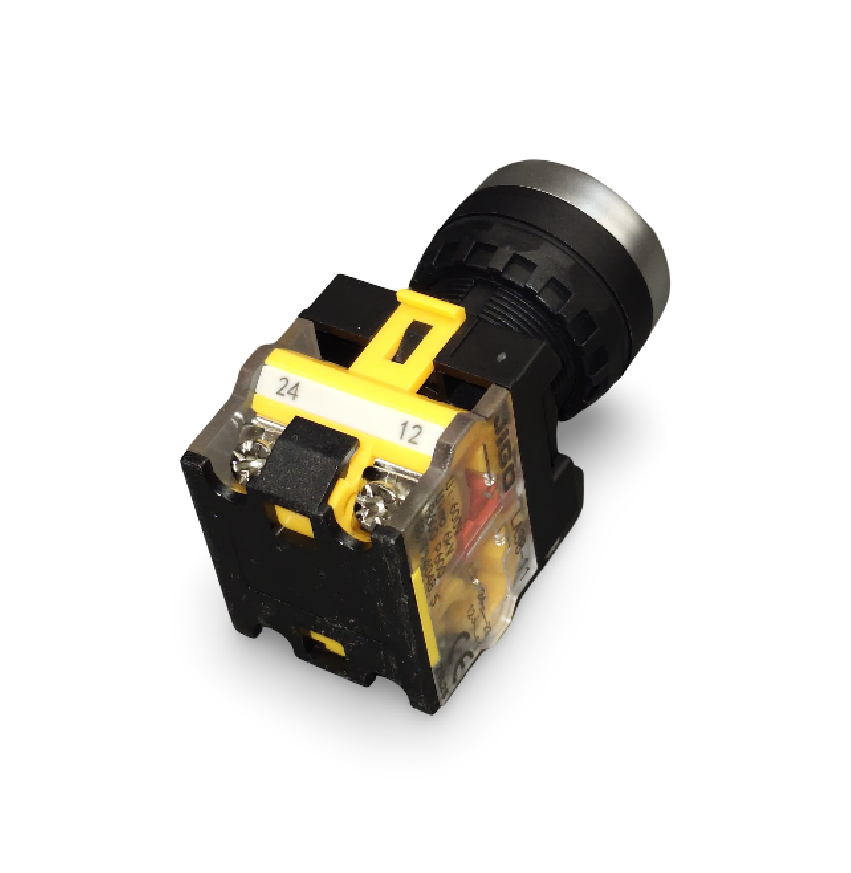

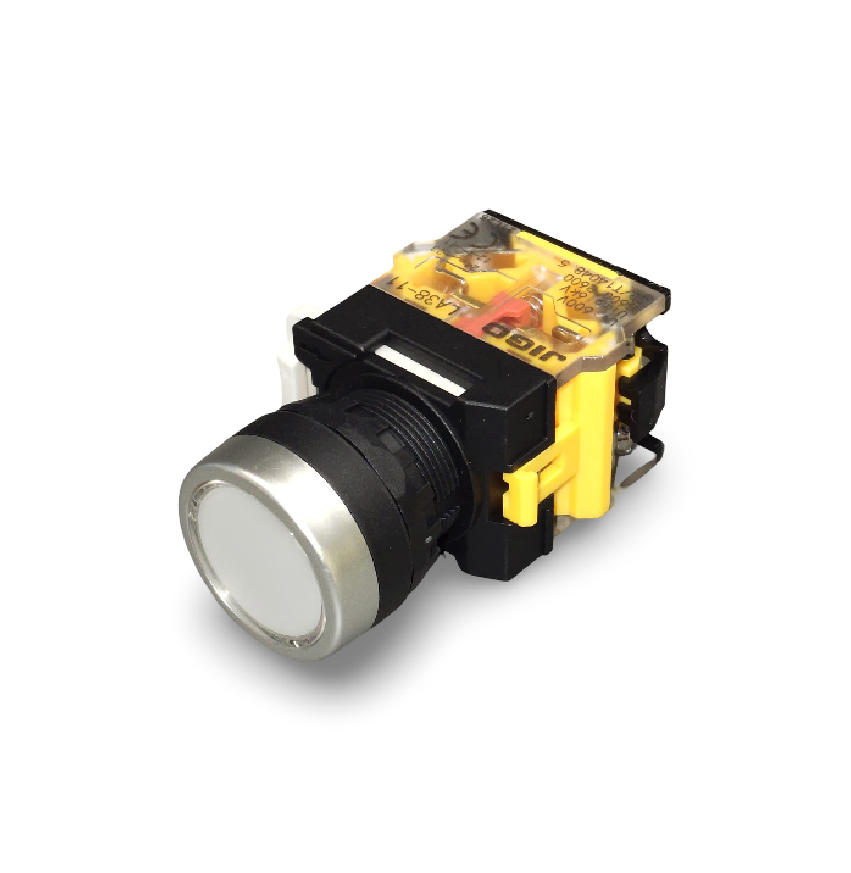

LA38-11 PN WHITE Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
The LA38-11 PN WHITE Push Button is a non-illuminated, momentary switch designed for industrial control panels where clear and neutral signaling is needed.
Enquire on WhatsAppProduct Details:
Model: LA38-11 PN
Color: White
Operation Type: Momentary (spring return)
Mounting Size: 22mm panel hole
Contacts: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Voltage Rating: Up to 660V AC
Current Rating: 10A
Build Material: High-grade plastic with metal fixing ring
Connection: Screw terminal
Protection Level: IP40 (can be upgraded)
Key Features:
Smooth and reliable push action
Distinctive white color for special functions or custom use
Long electrical and mechanical life
Suitable for space-constrained panels
Simple wiring and maintenance
Applications:
Start/stop/reset command stations
Control and automation systems
Industrial machine panels
Distribution boards
Customized operator functions (reset, manual override, etc.)
