LA38-11 PND 220V YELLOW Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

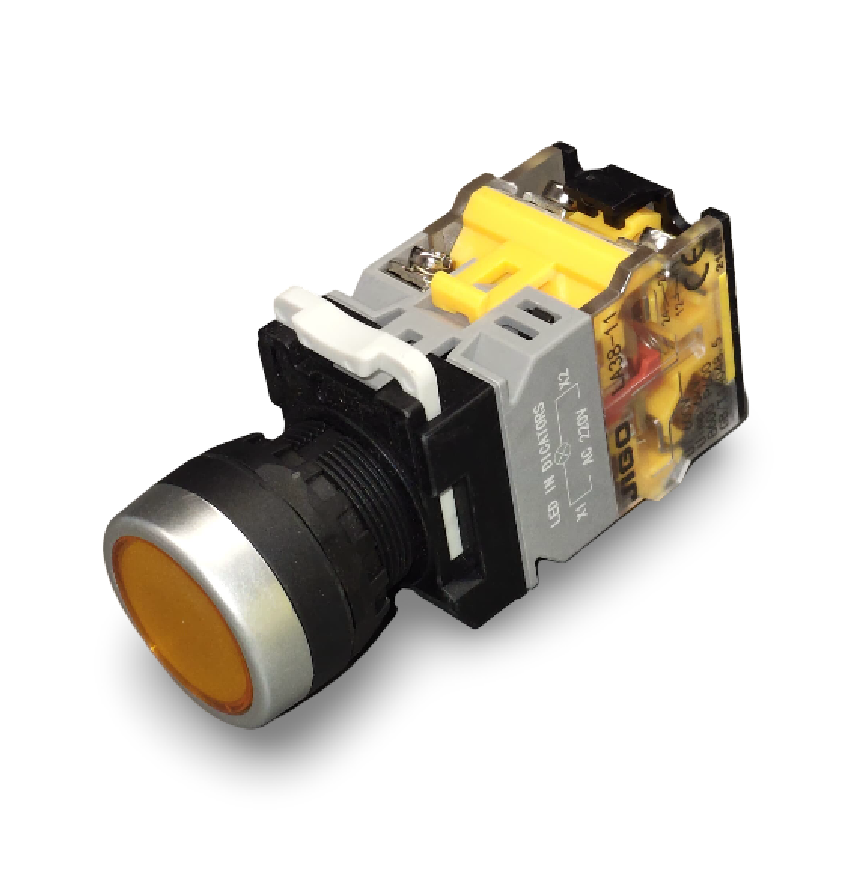

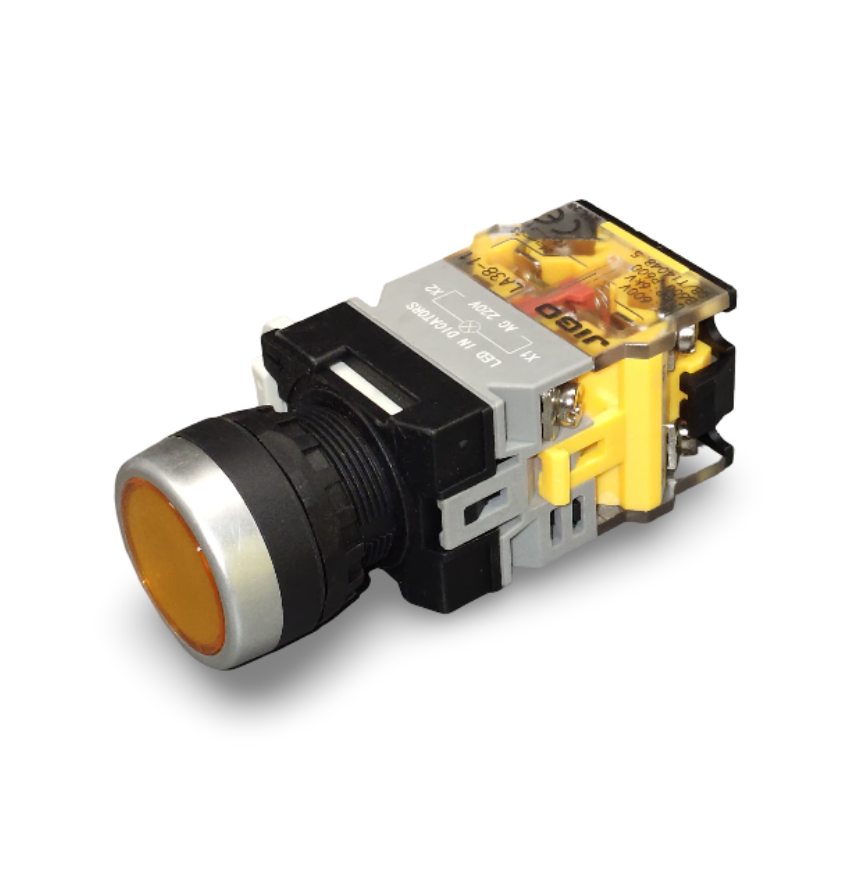

The LA38-11 PND 220V YELLOW is a round illuminated push button switch designed for signaling and control in industrial environments, providing both visual feedback and reliable performance.
Enquire on WhatsAppProduct Details:
Model: LA38-11 PND
Color: Yellow
Illumination Voltage: 220V AC
Operation Type: Momentary (spring return)
Mounting Diameter: 22mm
Contact Configuration: 1NO + 1NC (Normally Open + Normally Closed)
Material: High-grade plastic with transparent lens cap
Connection: Screw terminals
Rated Current: 10A
IP Rating: IP40 (optional IP65 with cover)
Key Features:
Bright yellow LED for clear visibility
Ideal for warning or process status indication
Long mechanical life and high electrical durability
Modular design for easy assembly and maintenance
Snap-fit locking for secure panel mounting
Applications:
Automation and control panels
Machinery operation interfaces
Power equipment control
Indicator systems for warnings or attention
Process line signaling
