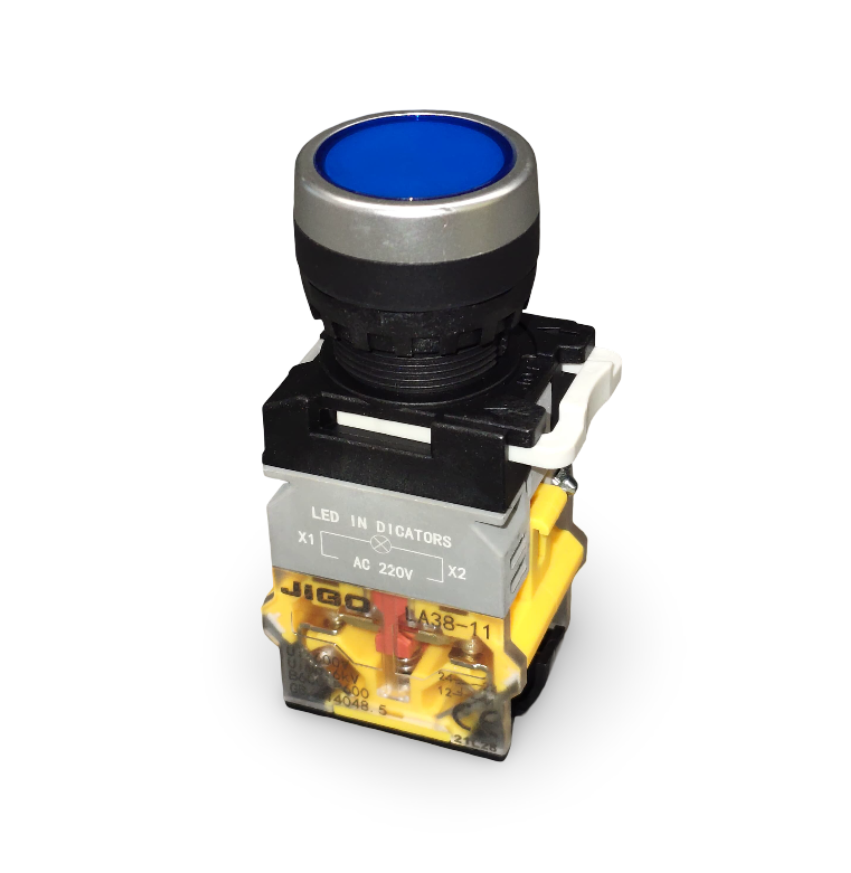

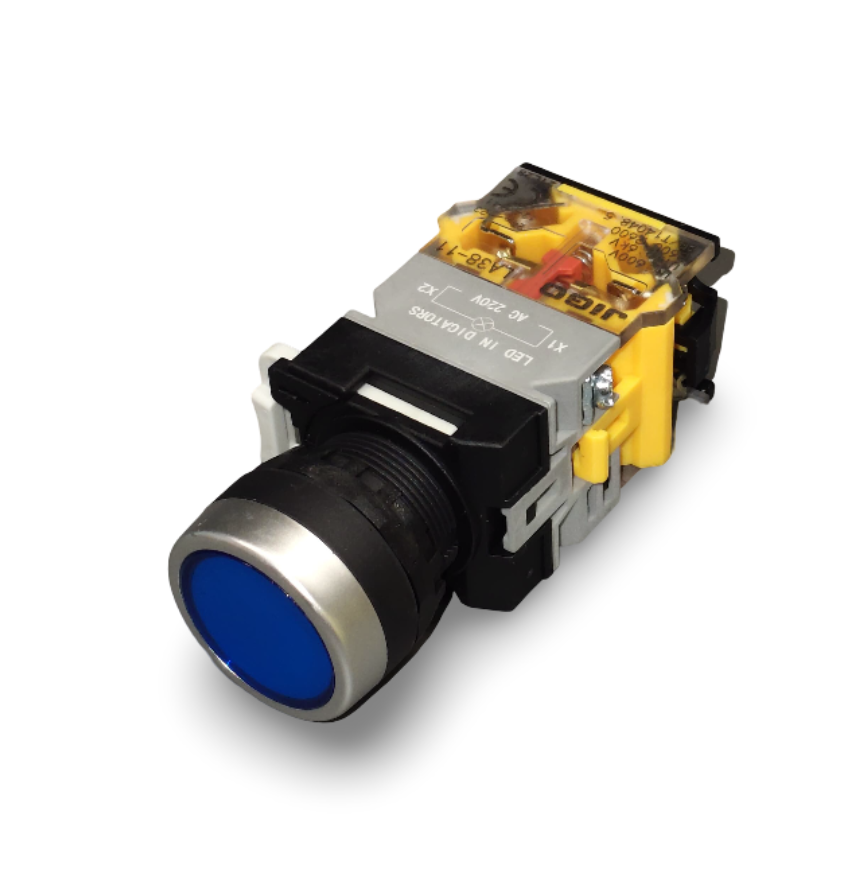

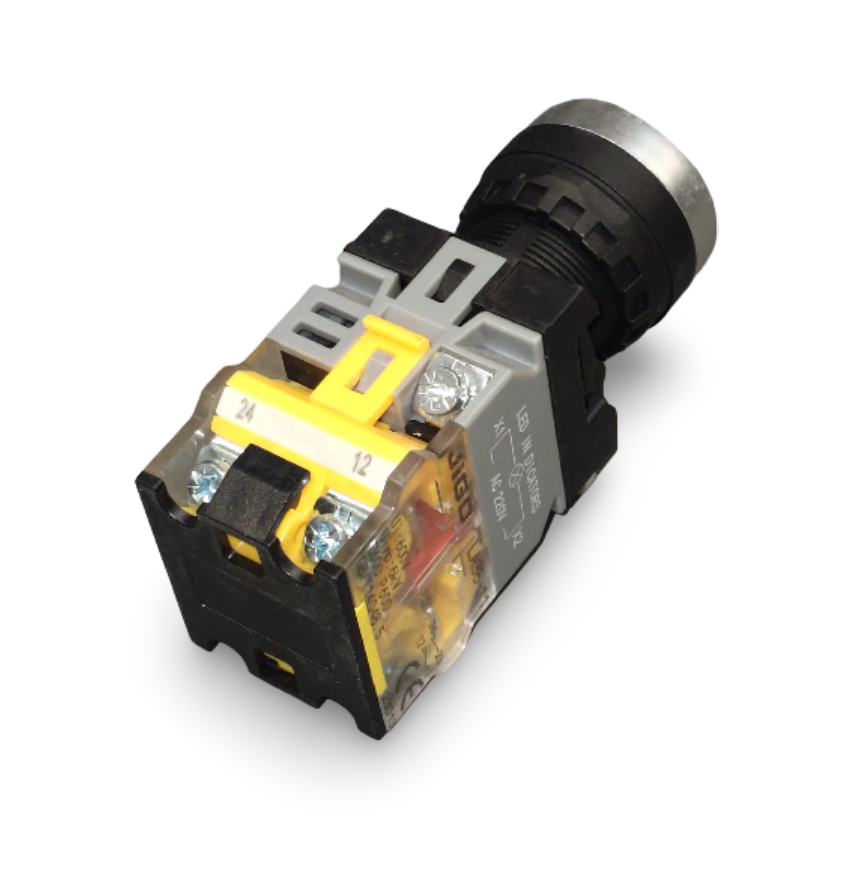

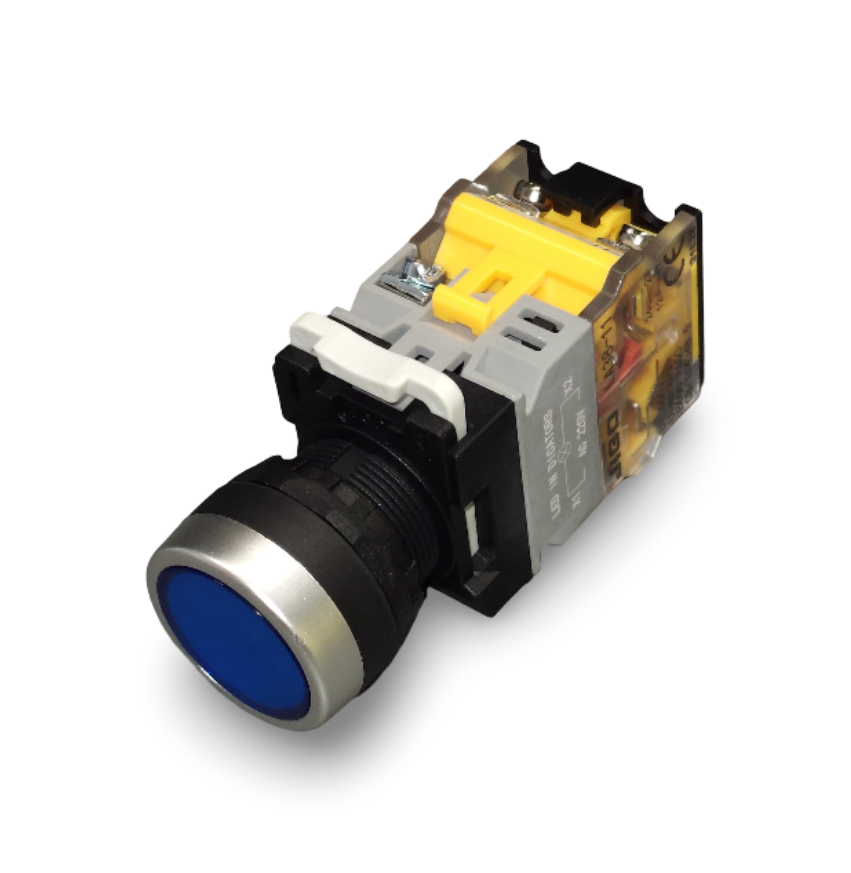

LA38-11 PNZS 220V BLUE LATCHING Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
The LA38-11 PNZS 220V BLUE Latching switch is a maintained-action push button with built-in 220V LED illumination, suitable for ON/OFF control applications in electrical panels and machinery.
Enquire on WhatsAppProduct Details:
Model: LA38-11 PNZS (Latching)
Type: Push Button (Maintained / Latching Action)
Color: Blue
LED Voltage: 220V AC
Mounting Size: 22mm
Contact Block: 1NO + 1NC
Body Material: Industrial-grade flame-retardant plastic
Operating Voltage: 220V AC
LED Type: Integrated LED indicator
Terminal Type: Screw terminals
Ingress Protection: IP40 (panel sealed up to IP65)
Key Features:
Latching mechanism: Stays ON after pressed until manually pressed again
Integrated blue LED for status indication
High durability: up to 1 million mechanical operations
Modular design allows easy contact and LED replacement
Snap-fit design for quick panel installation
Applications:
Machine ON/OFF control
Electrical control panels
Safety and emergency circuits
Industrial automation systems
Operator consoles and HMI panels
