LA38-11 PNZS 220V GREEN LATCHING Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

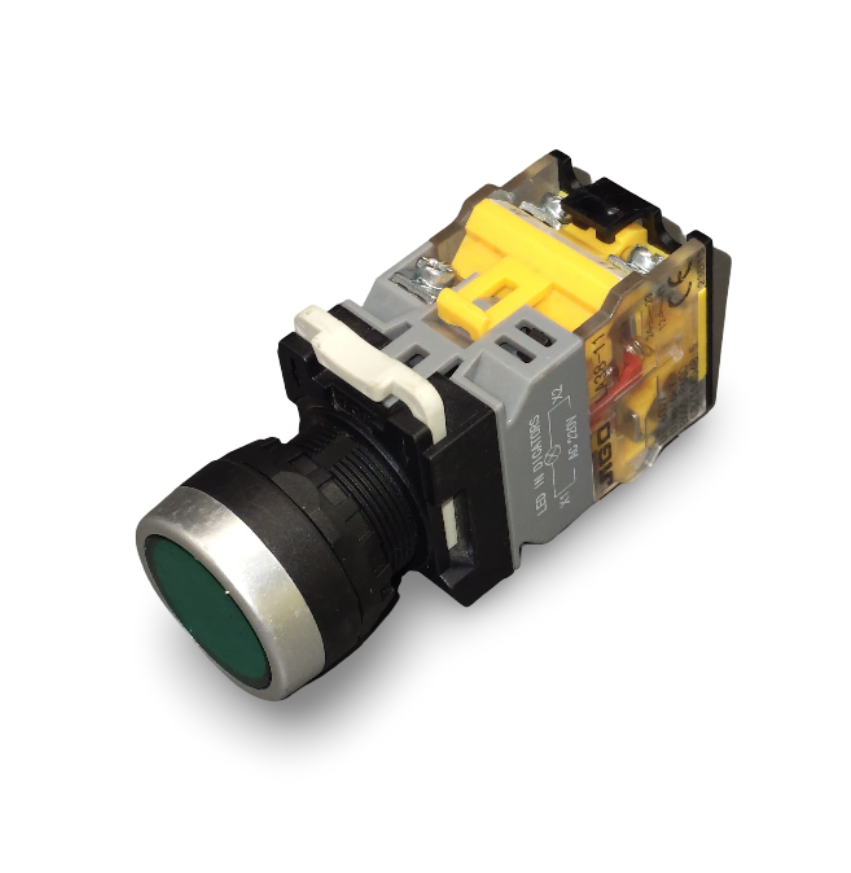

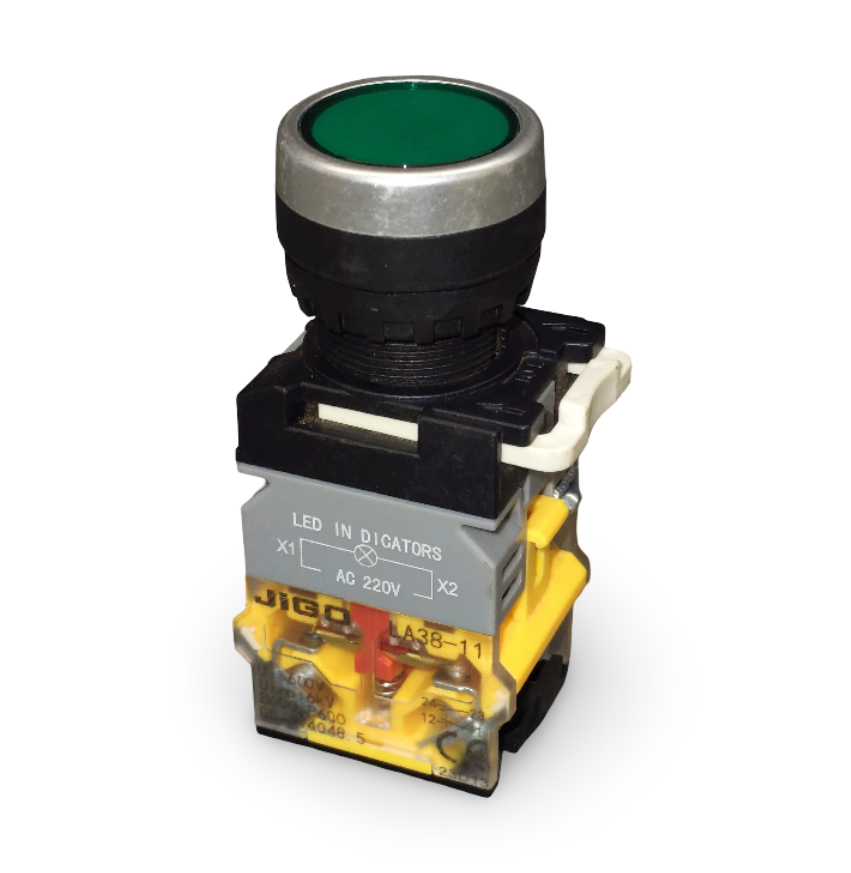

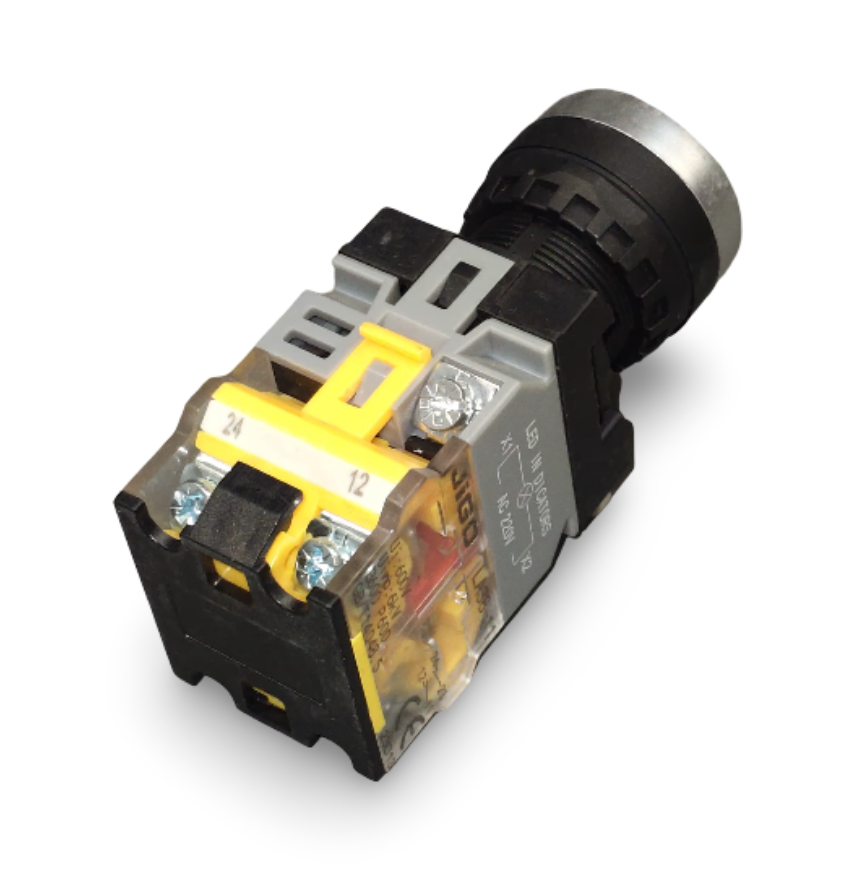

The LA38-11 PNZS 220V GREEN is a latching-type push button switch equipped with a built-in 220V AC green LED, designed for ON/OFF control in industrial and automation panels.
Enquire on WhatsAppProduct Details:
Model: LA38-11 PNZS
Action Type: Latching (Maintained)
Color: Green
LED Voltage: 220V AC
Mounting Hole Size: 22mm
Contact Configuration: 1NO + 1NC
Material: Flame-retardant thermoplastic body with silver alloy contacts
Terminal Type: Screw type
LED Type: Integrated Green LED
Panel Protection: Up to IP65 (with sealing)
Key Features:
Latching mechanism: Maintains state after activation until re-pressed
Clear green illumination for active status indication
Long-lasting mechanical life (>1 million cycles)
Modular and easy to assemble or replace components
Compact 22mm standard industrial design
High visibility LED for quick operation feedback
Applications:
Industrial machine controls
Power ON/OFF circuits
Electrical panels and switchboards
Operator stations in factories
Start/Stop stations for motors and pumps
