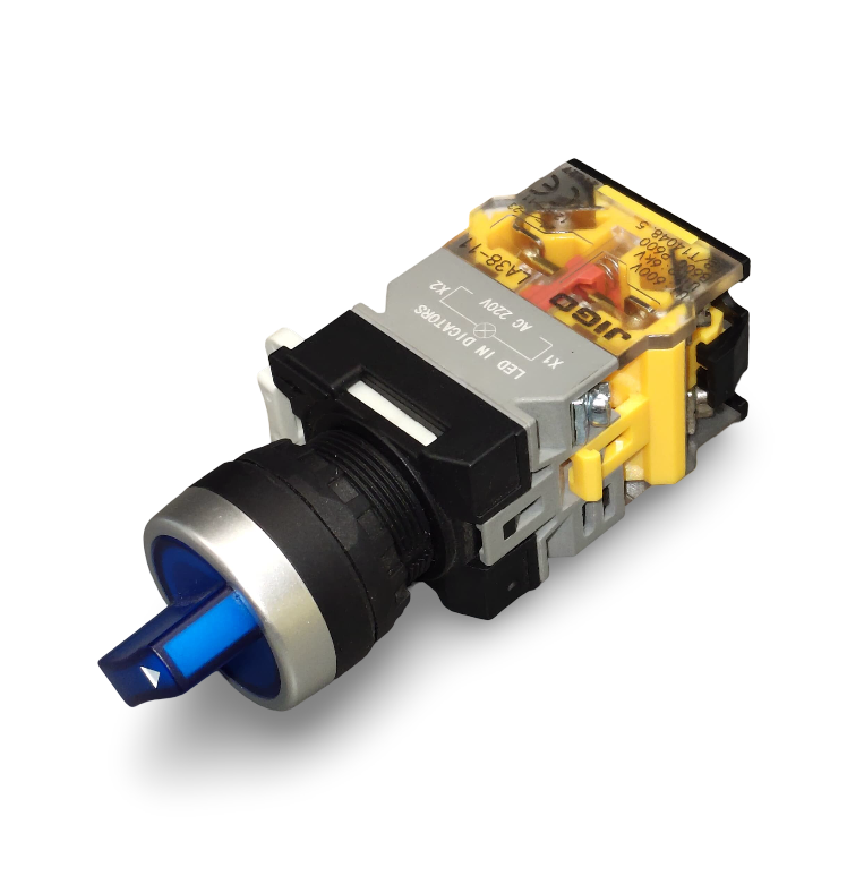

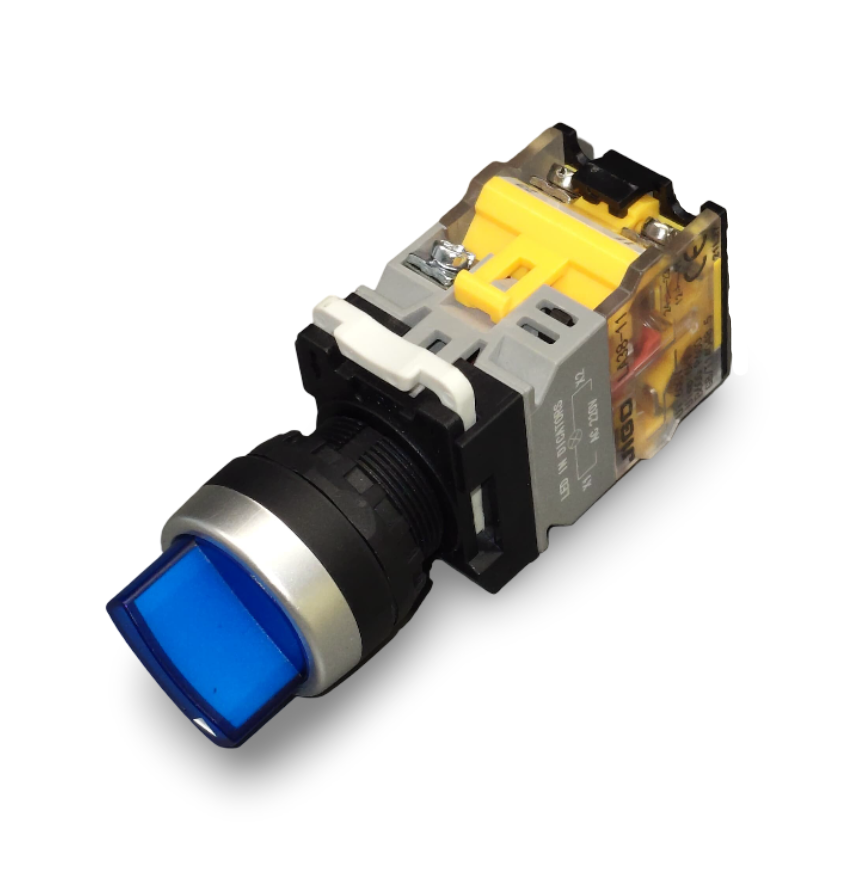

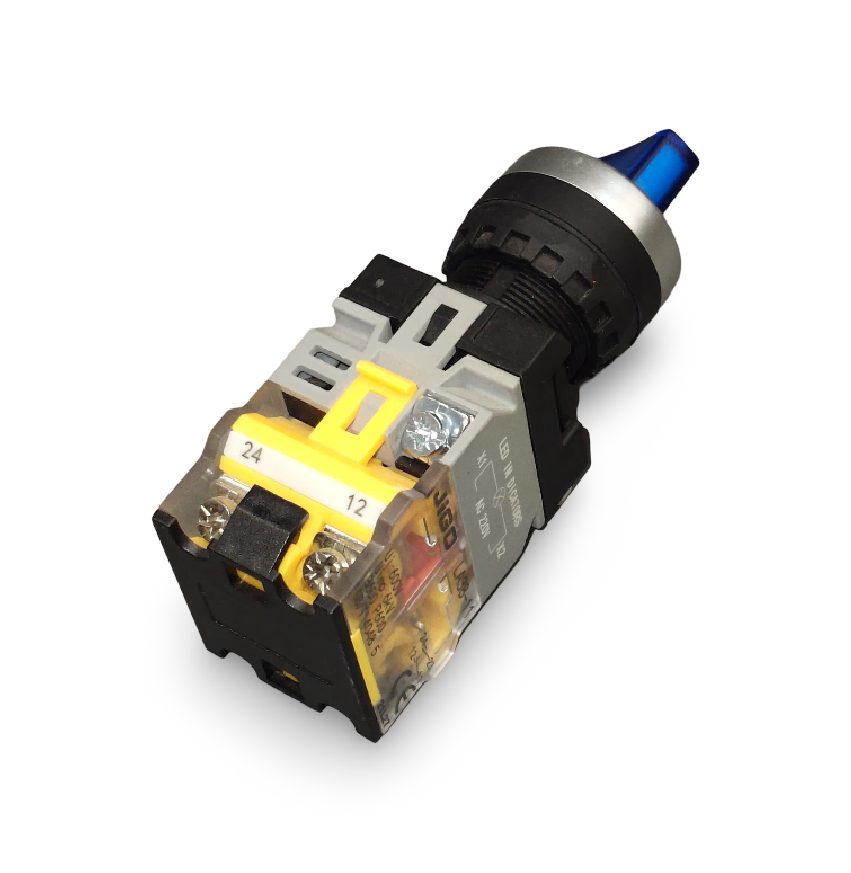

LA38-20 XD31 BLUE 220V-3P SELECTOR SWITCH WITH LED
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
LA38-20 XD31 BLUE 220V -3P Selector Switch with LED is a 3-position illuminated rotary selector switch featuring a blue LED indicator. Designed for 22mm panel mounting, it combines control and status indication in a single, compact unit, ideal for industrial automation and multi-mode operations.
Enquire on WhatsAppProduct Details
Model: LA38-20 XD31
Color: Blue
Type: Illuminated Selector Switch (3-Position)
Positions: Left – Center – Right (maintained in each position)
Contact Configuration: 2NO + 2NC (customizable based on wiring)
Rated Voltage: 220V AC (for both switch and LED)
Mounting Hole Diameter: 22mm
Operation Type: Rotary, maintained
Material: Flame-retardant plastic housing with clear LED cap
Terminal Type: Screw terminal
LED Type: Built-in blue LED for operational status
Key Features
3-position maintained selector for multi-mode control
Built-in blue LED for clear visual indication
Robust construction suited for industrial environments
Quick and secure installation in 22mm panel cutouts
Long-life LED with low power consumption
Dual contact system (2NO + 2NC) for versatile circuit design
Smooth rotary action with firm detents
Ergonomic and modern design
Applications
Mode selection (e.g., Manual/Off/Auto or Forward/Neutral/Reverse)
Industrial automation and machinery control panels
Motor and generator control stations
Power source switching systems
Electrical switchboards and PLC panels
HVAC systems, elevators, and production lines
Any system requiring 3-way selection with LED feedback
