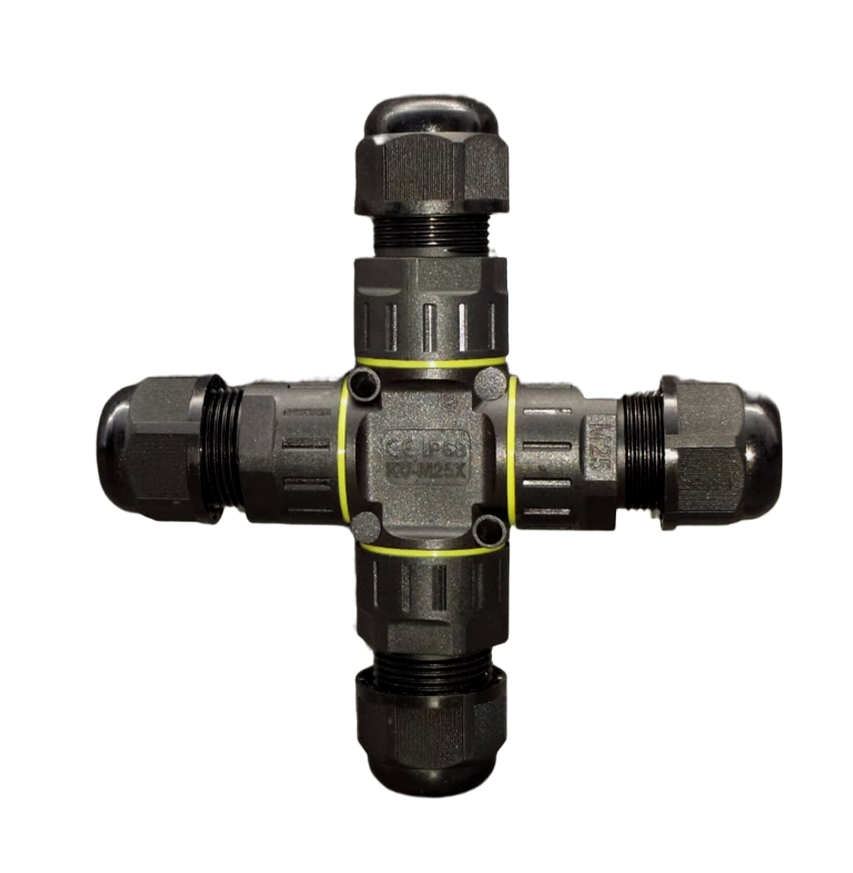

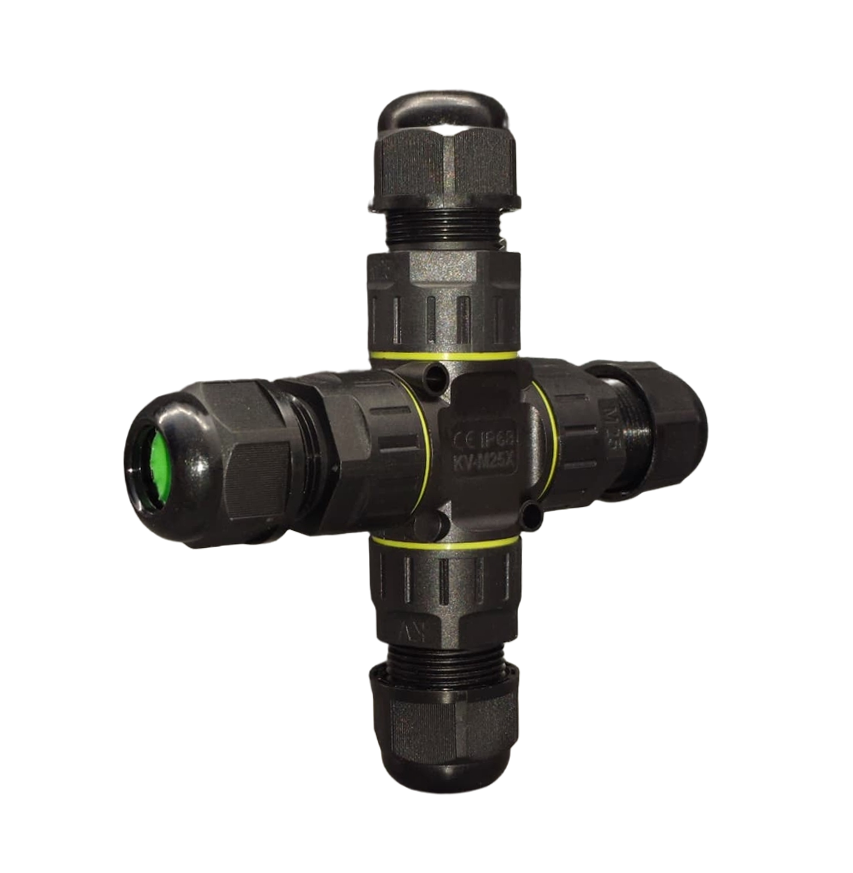

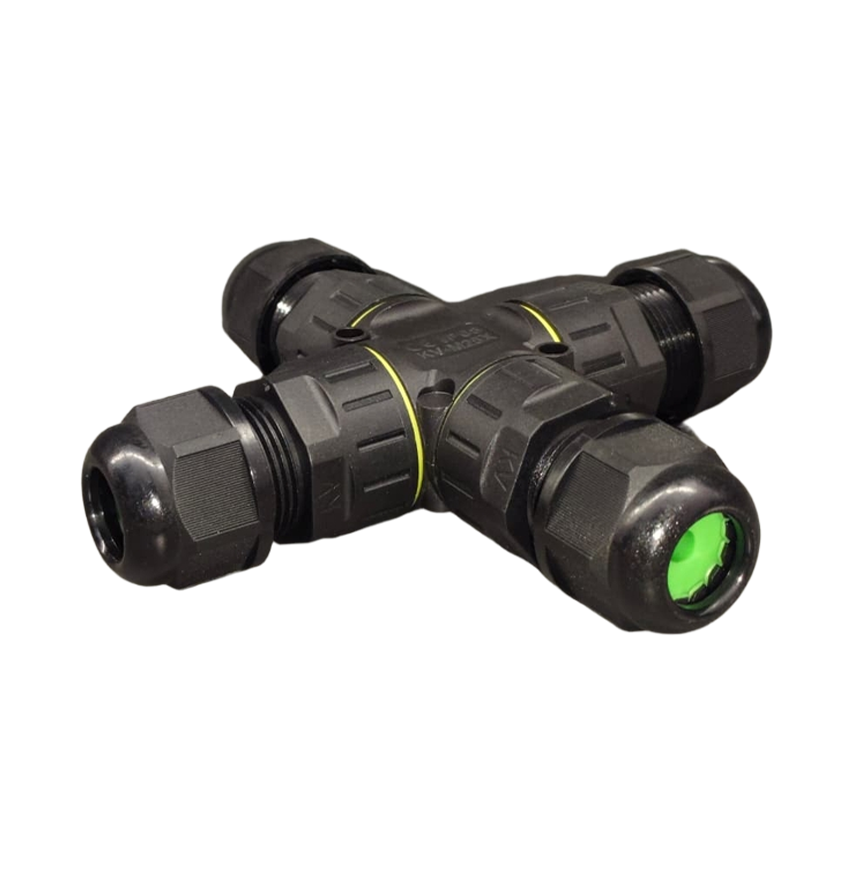

M25X-3P(5-8) Waterproof Cable Connector
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500
M25X‑3P (5‑8) Waterproof Connector is a rugged 3‑pin circular electrical connector with environmental sealing and an M25 threaded interface, designed to provide durable and waterproof power or signal connections in harsh outdoor and industrial environments. It accommodates cables with outer diameters of approximately 5–8 mm and is engineered for reliable performance under wet, dusty, or corrosive conditions.
Enquire on WhatsAppProduct Details
The M25X‑3P connector belongs to a class of IP67/IP68‑rated waterproof circular connectors, which are widely used for power and signal applications where environmental protection is essential. These connectors typically use gasket seals and threaded locking to prevent water and dust ingress, providing long‑lasting protection even when submerged or exposed to heavy rain.
Typical Specifications (approximate / industry standard):
- Model: M25X‑3P (5‑8)
- Type: 3‑Pin Waterproof Circular Connector
- Protection Rating: IP67 or IP68 (dustproof and waterproof)
- Rated Voltage: ~250 V – 600 V AC (varies by exact product)
- Rated Current: ~20 A – 30 A (depending on design)
- Contact Material: Tin‑plated copper alloy
- Housing Material: Flame‑retardant thermoplastic (e.g., PA66)
- Sealing Material: Silicone or rubber gaskets
- Cable Diameter Range: 5 mm – 8 mm outer jacket
- Operating Temperature: ~‑40 °C to +105 °C
Key Features
- IP67/IP68 Environmental Protection: Prevents dust ingress and withstands water immersion for outdoor use.
- 3‑Pin Configuration: Supports three conductors for power, ground, and signal lines.
- M25 Threaded Coupling: Provides a secure and vibration‑resistant mechanical connection.
- Wide Cable Compatibility: Fits cables approximately 5–8 mm in diameter.
- Durable Construction: Flame‑retardant housing with corrosion‑resistant contacts.
- Reliable Electrical Performance: Low contact resistance for stable power and signal transmission.
- Suitable for Harsh Environments: Designed to resist moisture, dust, and mechanical stress.
Applications
M25X‑3P waterproof connectors are ideal for:
- Outdoor lighting and street fixtures requiring sealed power connections.
- Industrial automation and machinery interfaces exposed to moisture or dust.
- Marine and offshore electrical systems needing corrosion resistance.
- Solar and renewable energy installations (PV string connections).
- Outdoor junction boxes and power distribution.
- Control panel connections in environmental enclosures.
