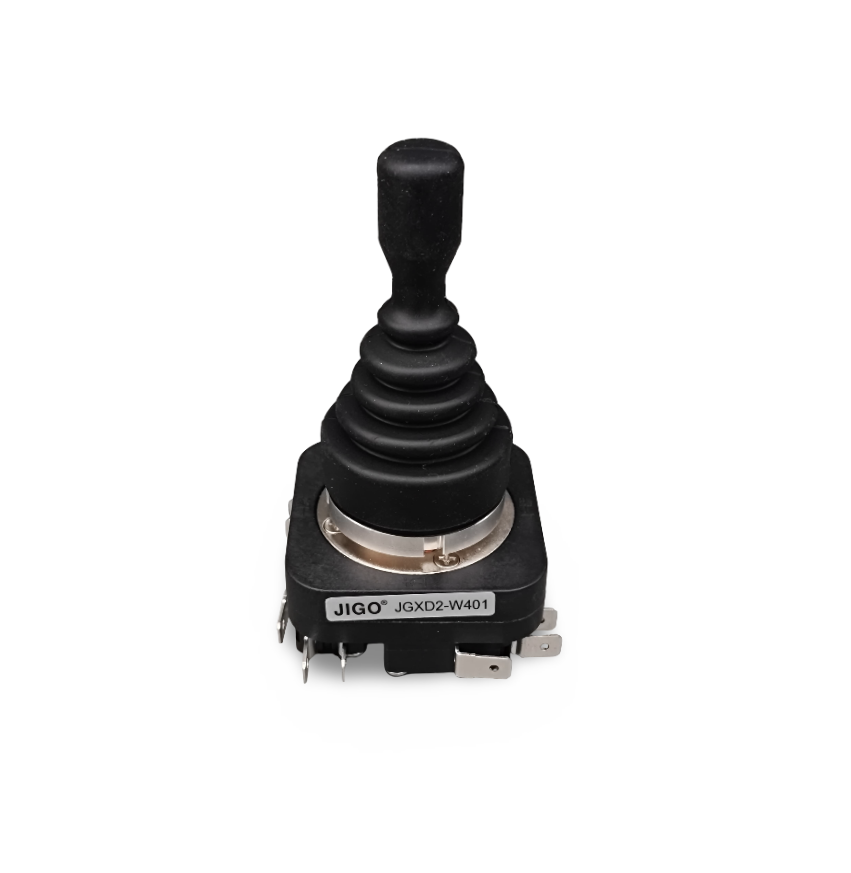

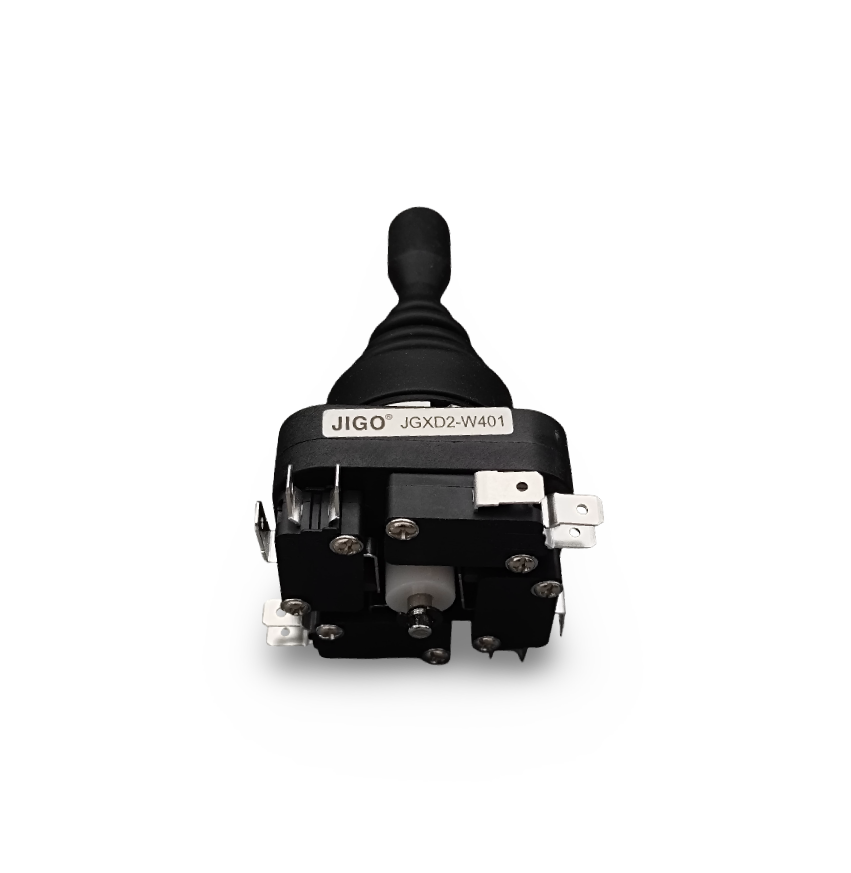

MONO LEVER SWITCH-SPRING RETURN-4P JGXD2-W401
- Category: MONO LEVER SWITCH
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 3000
A rugged, industrial-grade 4‑pole mono lever switch with spring-return action. Designed for temporary manual activation and automatic return to default position, it provides safe and reliable control over multiple circuits in harsh or intermittent-use environments.
Enquire on WhatsAppProduct Details
Model: JGXD2‑W401
Brand: JIGO
Switch Type: Mono (single-throw), manual lever with spring-return
Poles: 4 (4P configuration)
Switch Mechanism: Lever actuates; returns to preset (usually center or “off”) position upon release
Contact Configuration: Likely 4× normally-open (NO) or other combos—consult datasheet for exact layout
Housing Material: Flame-retardant thermoplastic with sturdy mechanical internals
Actuator: Lever designed for firm start/return cycles with defined tactile feel
Terminals: Screw or faston terminals ensuring secure connections resistant to vibration
Mounting: Panel-mount with threaded bushing or snap-fit housing
Protection Level: Typically IP65-rated against dust and water ingress—analogous to Idec HW spring-lever switch specifications
Key Features
4-pole switching provides simultaneous control or isolation of multiple circuits
Spring-return mechanism ensures the lever returns to off/default when released—ideal for momentary or safety functions
Tactile snap function offers clear feedback at activation and release
Flame-retardant and reinforced housing for reliable operation under industrial stresses
Secure terminals help prevent loosened connections in high-vibration environments
Panel-mount design for easy installation and servicing
Applications
Momentary activation, overrides, or jog functions in control panels
Emergency or temporary multi-circuit switches in industrial machines
Multi-phase motor start/stop interlocks or safety circuits
Machine-shop, factory-floor, or field-deploy scenarios requiring multi-line reset-on-release control
Suitable for OEM enclosures, distribution boards, or hazardous zones requiring dust and water protection
