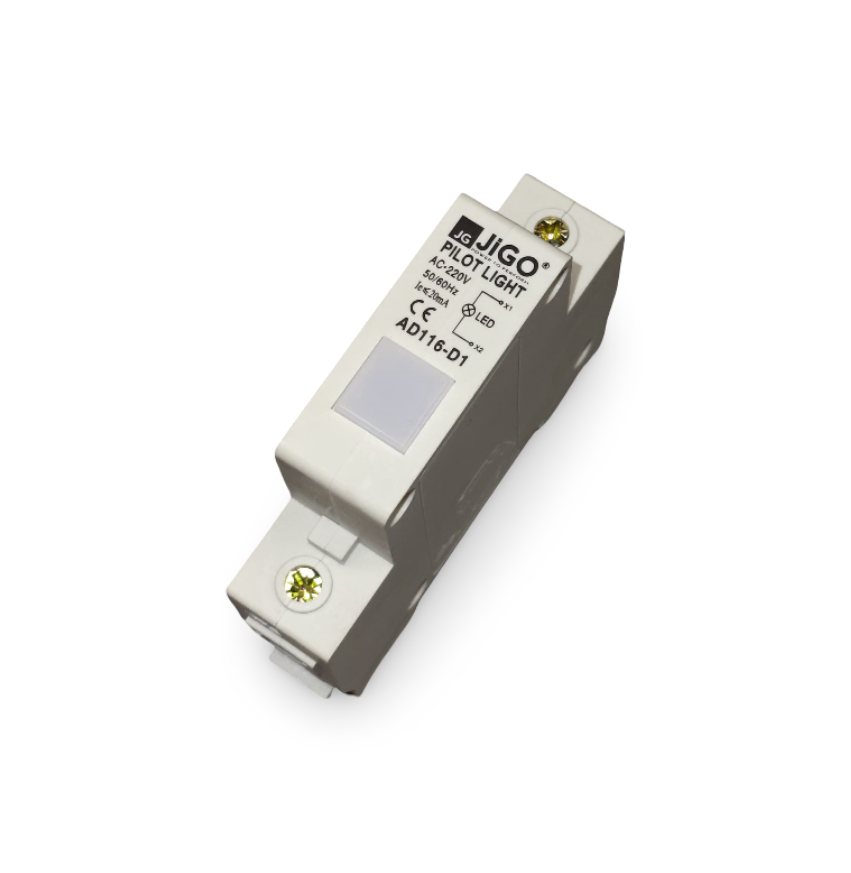

PILOT LIGHT JG-AD116-D1-WHITE
- Category: DIN MOUNT INDICATORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
JG-AD116-D1-WHITE Pilot Light Indicator is a panel-mount LED indicator used for power-on status, system readiness, or neutral signaling in electrical and automation control panels. Emits a crisp white light for enhanced visibility.
Enquire on WhatsAppProduct Details
Model: JG-AD116-D1-WHITE
Type: LED Pilot Indicator Light
Color: White
Voltage Options: 24V / 110V / 220V AC or DC (as specified)
Mounting Hole Diameter: Ø22mm standard size
Body Material: Flame-retardant ABS with transparent polycarbonate lens
LED Type: Long-life, high-brightness LED
Wiring Method: Screw terminal connection
Ingress Protection: IP65 (front side)
Working Temperature: -25°C to +55°C
Key Features
Bright white LED provides clear visual feedback
Low power consumption and long service life
Simple and quick installation (22mm standard)
Vibration and impact-resistant design
Suitable for both AC and DC operation
IP65 front panel protection – dust and moisture-resistant
Maintenance-free usage in harsh environments
Applications
Control and signaling panels
Automation equipment status indication
Electrical distribution boards
Process control systems
Power ON / Ready state indicator
HVAC units, elevators, and generators
Machinery and safety systems
