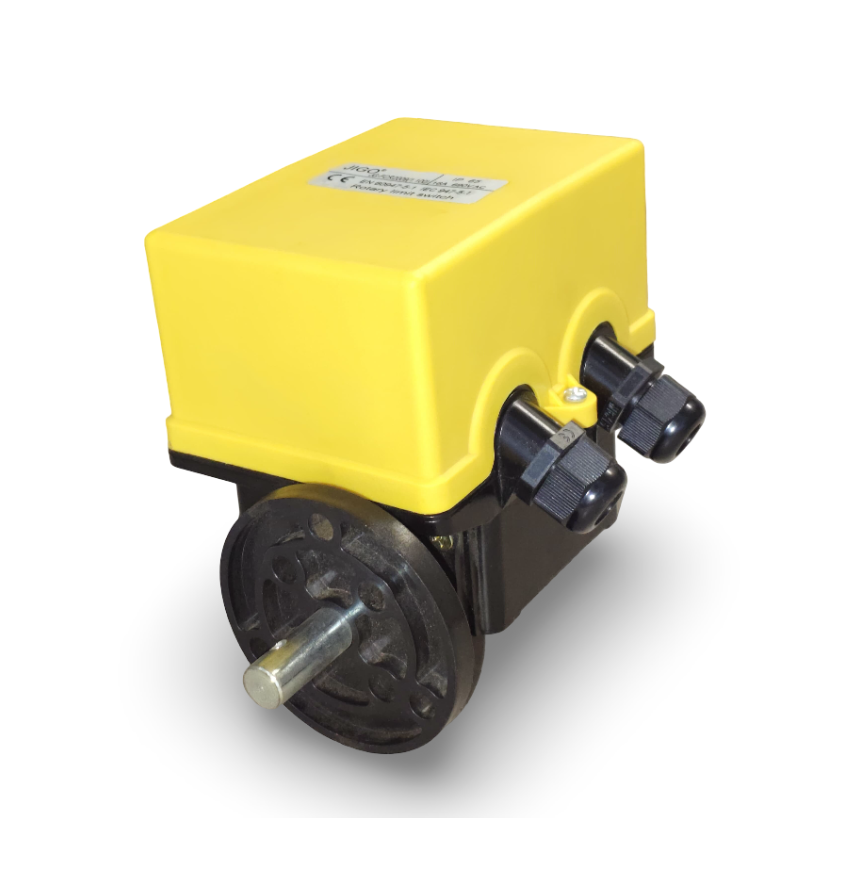

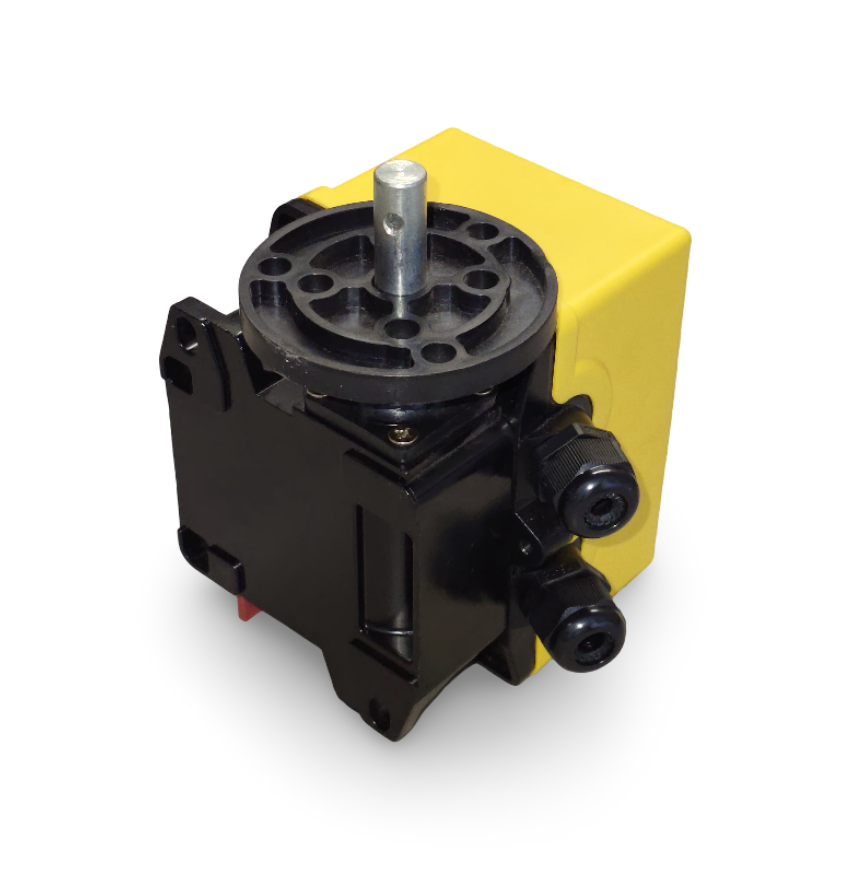

ROTARY LIMIT SWITCH-FCR2009 (1.100)
- Category: Limit Switches
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
FCR2009 (1.100) is a heavy-duty rotary limit switch used for position control in mechanical and electromechanical systems. It provides precise rotary motion feedback with high durability.
Enquire on WhatsAppProduct Details:
Model: FCR2009 (1.100)
Type: Rotary Limit Switch
Contact Configuration: 1NO + 1NC
Rotation Ratio: 1:1.00 (direct transmission)
Electrical Rating: 10A, 250V AC
Actuation: Mechanical cam-based rotation
Terminal Type: Screw connection
Body Material: Die-cast aluminum or high-grade industrial plastic (depending on model)
Protection Level: IP65
Mounting: Base-mounted with shaft coupling
Key Features:
Direct 1:1 transmission ratio for precise control
Durable rotary shaft for high mechanical load
Cam-based contact system with adjustable actuation points
IP65 rated for use in dusty and wet environments
Long mechanical life and stable contact switching
Maintenance-free design with secure wiring
Applications:
Overhead cranes and hoists
Industrial gates and rolling shutters
Wind turbines and tracking systems
Automated packaging and conveying machines
Elevators and construction lifts
Position limit control in rotary actuators
