SNB 5-5 Fork Terminal
- Category: COPPER TERMINALS
- Brand: Jigo
- Minimum quantity: 100
- Price: ₹ 434

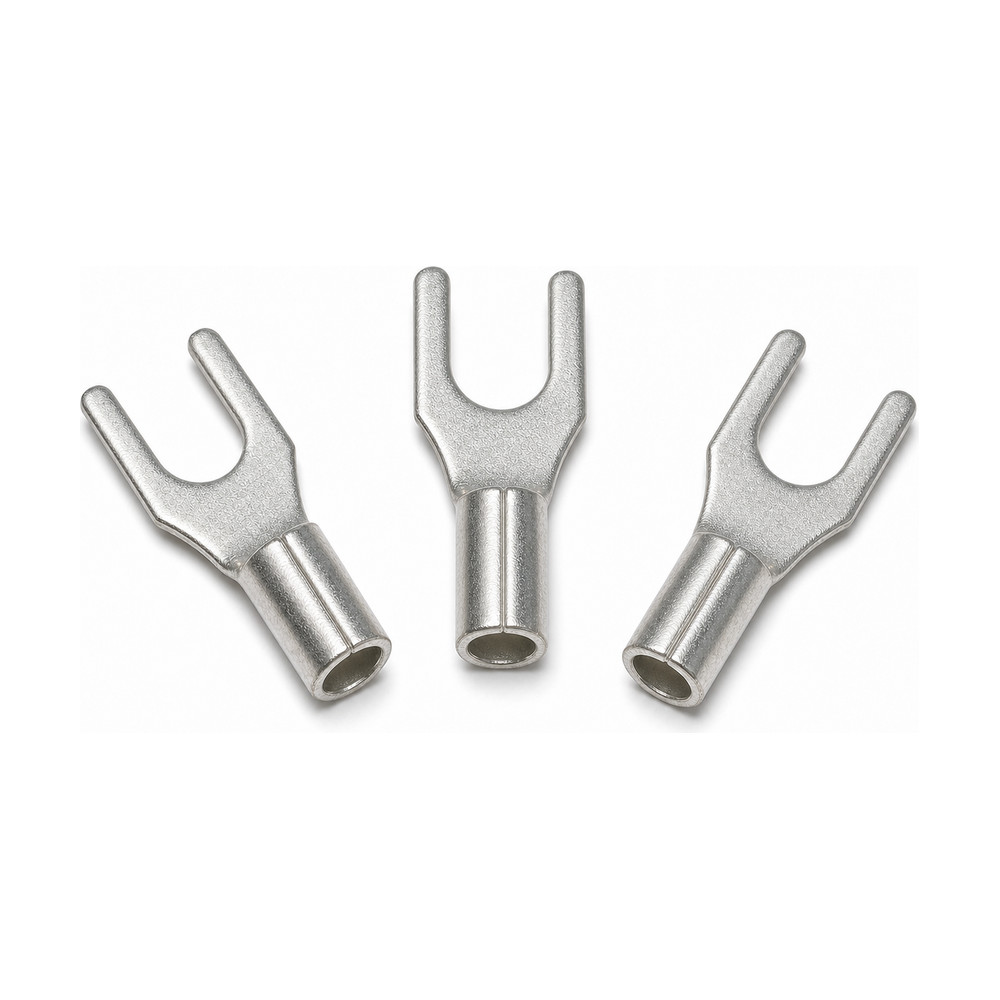

JiGO SNB 5-5 — Fork Type Terminal (Non-Insulated), for 6 mm² wire, 5 mm stud hole. Tin-plated copper barrel. Crimped with an ordinary crimping plier. Rate shown is per piece.
Enquire on WhatsAppThe JiGO JG-SNB 5-5 (7253) is an open U-shaped fork (spade) tongue crimp terminal for 6 mm² conductors, with a 5 mm hole to suit an M5 screw or stud. It slides under a screw or stud without removing the screw completely, which makes it the quickest terminal to fit or swap on a crowded terminal strip.
The barrel is rolled from tin-plated copper, so it crimps softly onto the strands and resists corrosion in humid conditions. This is a bare (non-insulated) terminal — sleeve it with heat-shrink or a PVC boot where insulation is required.
Crimp with any ordinary crimping plier for non-insulated terminals. No special die is needed.
Pricing: the rate on this page is per piece. The factory packet is 1,000 pieces and the carton is 25,000 pieces.
- Brand: JiGO
- Model / Part No.: JG-SNB 5-5 (7253)
- Type: Fork Type Terminal (Non-Insulated)
- Conductor size: 6 mm²
- Stud / hole size: 5 mm
- Barrel material: Tin-plated copper
- Insulation: None (bare terminal)
- Crimping tool: Standard crimping plier for non-insulated terminals
- Packet quantity: 1,000 pieces
- Carton quantity: 25,000 pieces
- Price basis: per piece
- Rate shown is per piece. Minimum order 100 pieces.
- Packet: 1,000 pieces · Carton: 25,000 pieces. Packet and carton rates on request.
- Also searched as: copper terminal, crimp terminal, cable terminal end, fork terminal, spade terminal, U-type lug.
- GST as applicable is included in the displayed rate.
- Available ex-stock at Arjun Trading Company, Ludhiana. Call for packet and carton rates.
