Trinity SPD Four Pole AC Surge Protection Device

Trinity SPD Four Pole AC Surge Protection Device

Category:

SURGE PROTECTIVE DEVICE

Brand: Trinity Touch
Minimum quantity: 1
Price: ₹ 3000

Trinity Touch TT320 Type 2 AC surge protection device, 4 pole (3P+N), for three-phase 415V systems. Protects panels, machinery and equipment from lightning surges and switching transients. DIN-rail mounted with pluggable modules and visual status indicators. In: 20kA, Imax: 40kA, Uc: 320V AC per phase.

Enquire on WhatsApp

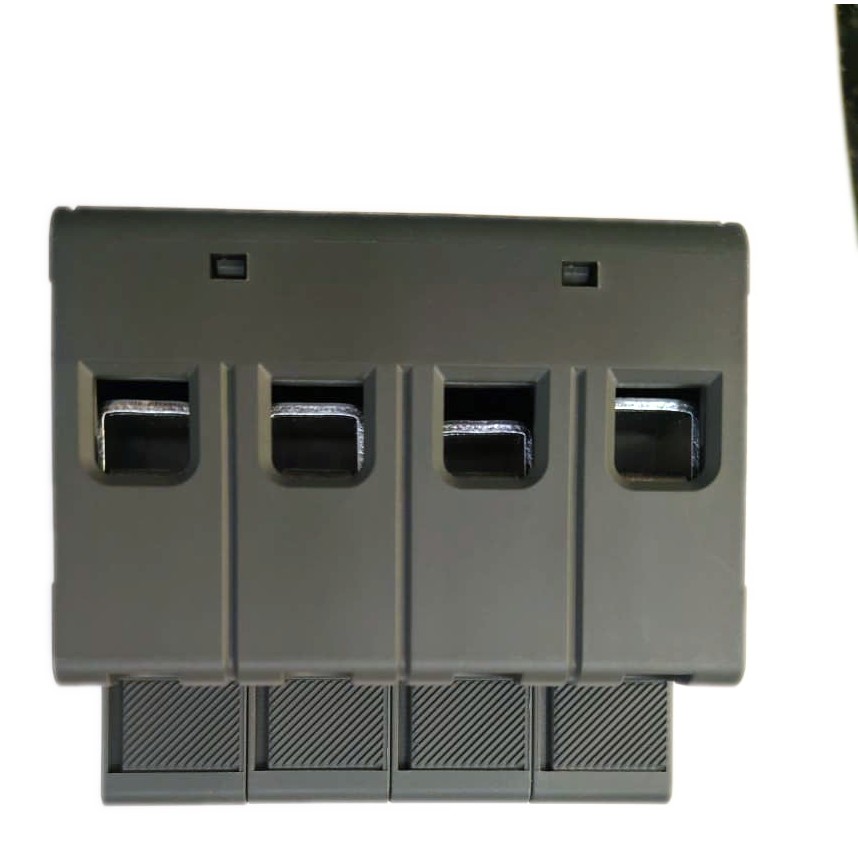

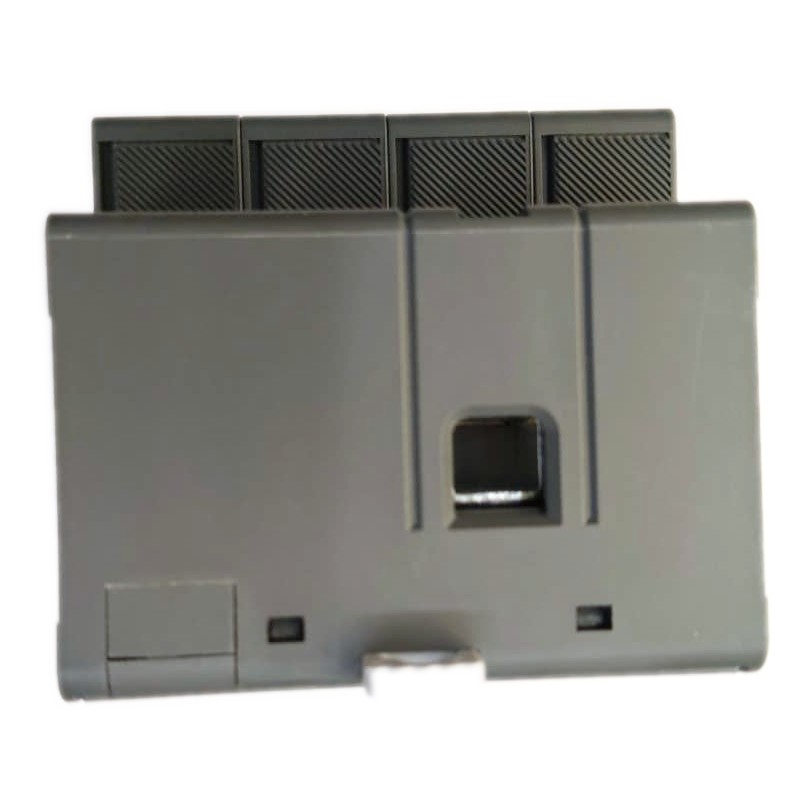

The Trinity Touch TT320 4 Pole surge protection device protects three-phase (3 Phase + Neutral) 415V AC installations against transient over-voltages from lightning strikes and switching operations. Each phase has its own pluggable protection module with a colour status window, so a discharged module can be swapped in seconds without disturbing the wiring. Recommended for main distribution panels, PCC/MCC panels and machine control panels in industry.

Model: TT320 (4 Pole, 3P+N)

Type: Type 2 (T2) AC SPD

Max. continuous operating voltage (Uc): 320V AC (L1/L2/L3), 255V AC (N)

Nominal discharge current (In): 20kA (8/20µs) per pole

Max. discharge current (Imax): 40kA (8/20µs) per pole

Voltage protection level (Up): 1.6kV (L), 1.0kV (N)

Mounting: 35mm DIN rail, 4 modules wide

Status indication: Green (healthy) / Red (replace) per pole

Standard: IEC 61643-11

Certification: TUV Rheinland, CE, RoHS

Genuine Trinity Touch product supplied by Arjun Trading Company, Ludhiana. Replacement plug-in modules available. Contact us on WhatsApp for bulk pricing and technical assistance.
