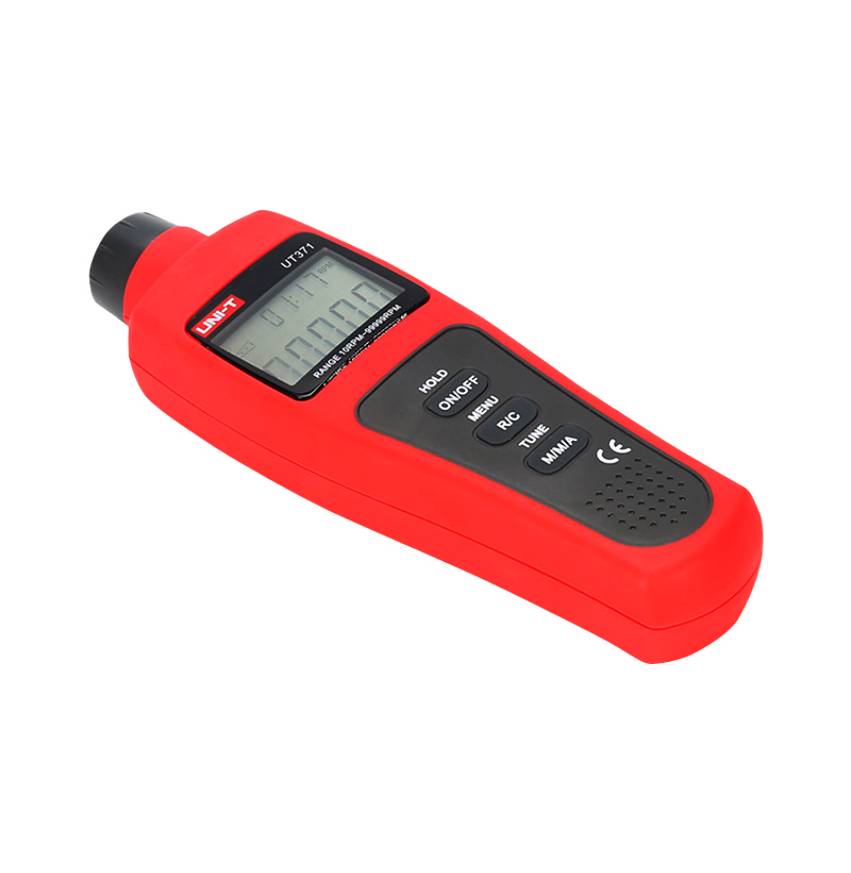

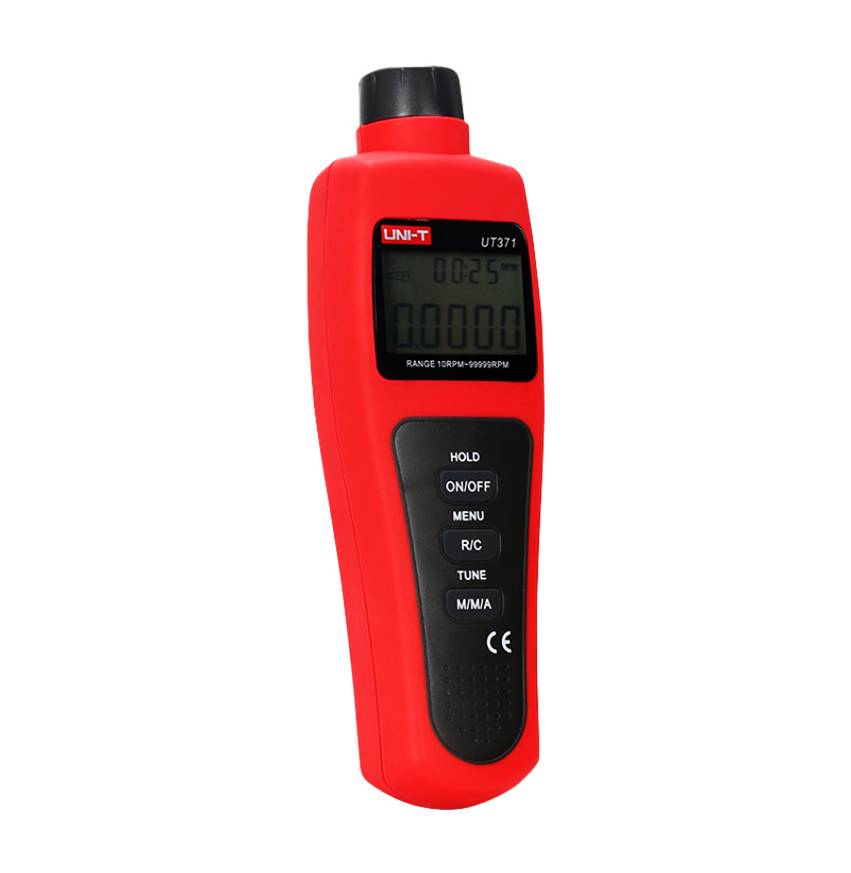

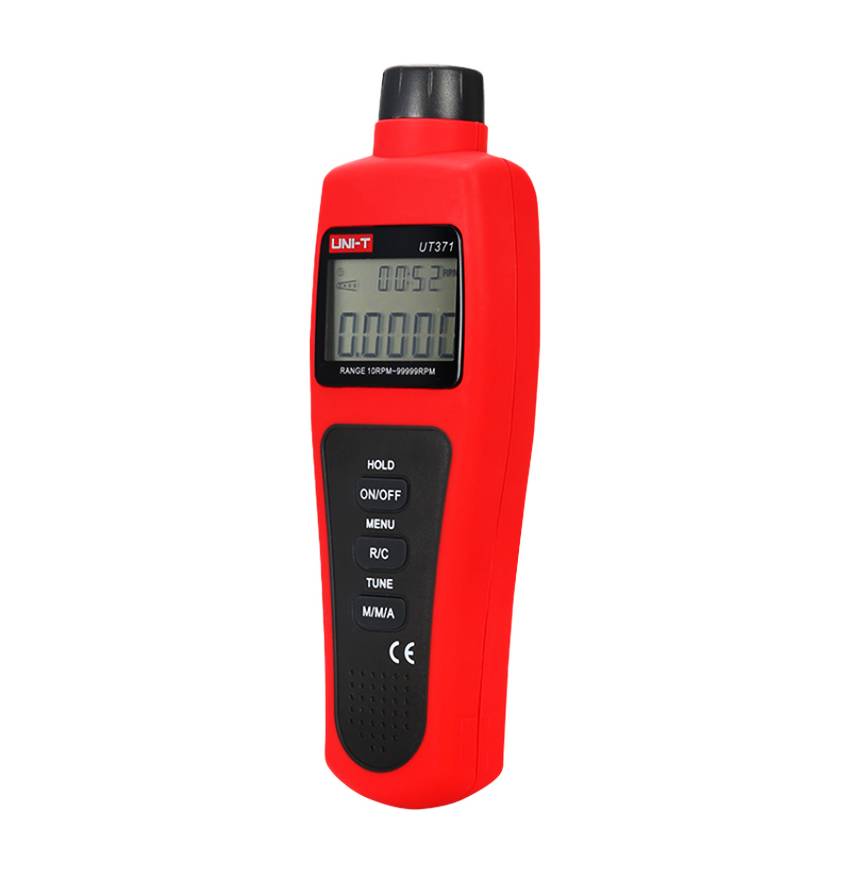

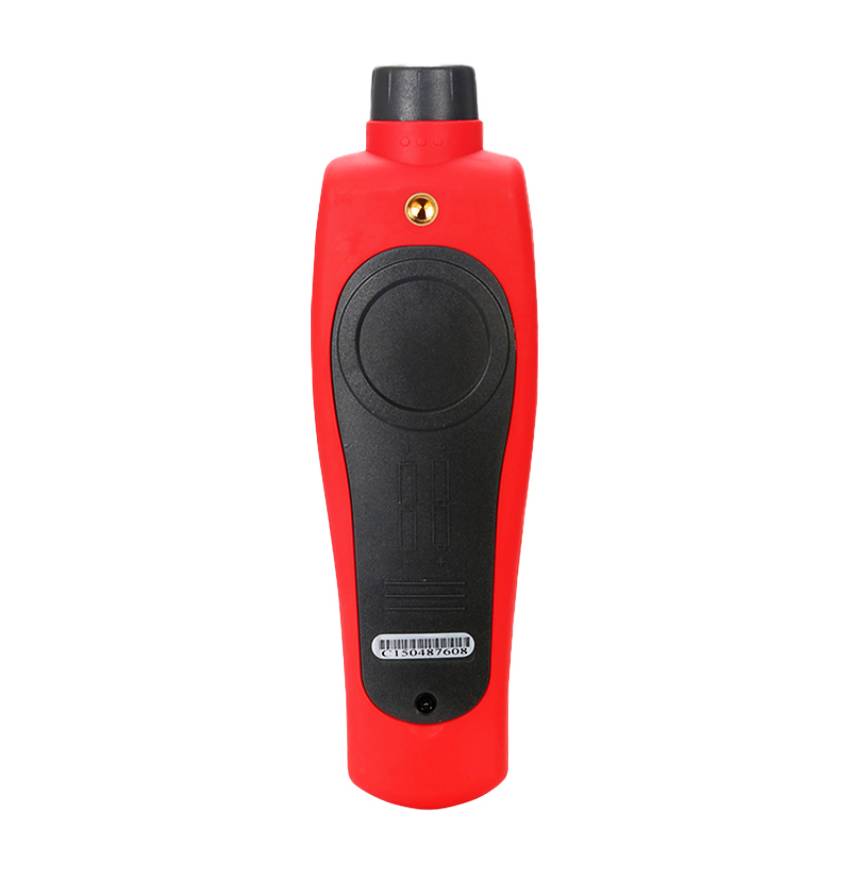

UT371 Digital Tachometer
- Category: TACHOMETERS
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 5950
UT371 series non-contact tachometers measure rotating speed of shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured.
Enquire on WhatsApp
Download
Features of UT371 Series Tachometers
● 5 digits LCD screen, RPM/count and time dual display
● MAX/MIN/AVG/normal modes
● Adjustable sampling rate (0.5-255s)
● Auto power off (cancelable)
● Optional (on/off) laser pointer
● Clock and time setting
● Data hold, low power consumption, continuous work for 40hrs
Specifications of UT371 Series Tachometers
| Specifications | Range | UT371 |
| RPM range | 10RPM~99RPM | ±(0.03%) |
| 100RPM~999RPM | ±(0.04%＋2) | |
| 1000RPM~9999RPM | ±(0.04%＋2) | |
| 10000RPM~99999RPM | ±(0.04%＋2) | |
| Counts | Range: 0~99999 | √ |
| Max. input frequency: 10kHz; bandwidth: 5% | ||
| Target distance | 50mm~200mm | √ |
| Features | ||
| Display count | 100000 | |
| Data hold | √ | |
| Auto power off | Around 15 minutes | √ |
| Low battery indication | ≤4.8V | √ |
| MAX/MIN/AVG mode | √ | |
| USB interface | ||
| General Characterisitics | |
| Power | 1.5V battery (LR6) X 4 |
| Display | 53mm x 41mm |
| Product color | Red and grey |
| Product net weight | 100g |
| Product size | 184mm x 56mm x 34mm |
| Standard accessories | Reflective tape, USB interface cable (UT372), PC software CD (UT372) |
| Standard individual packing | Blister, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 420mm x 305mm x 370mm (0.047CBM per standard carton) |
| Standard carton gross weight | 5kg |
