HARMONY INDICATOR AD16-22DS BLUE
- Category: Led Indicators
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100

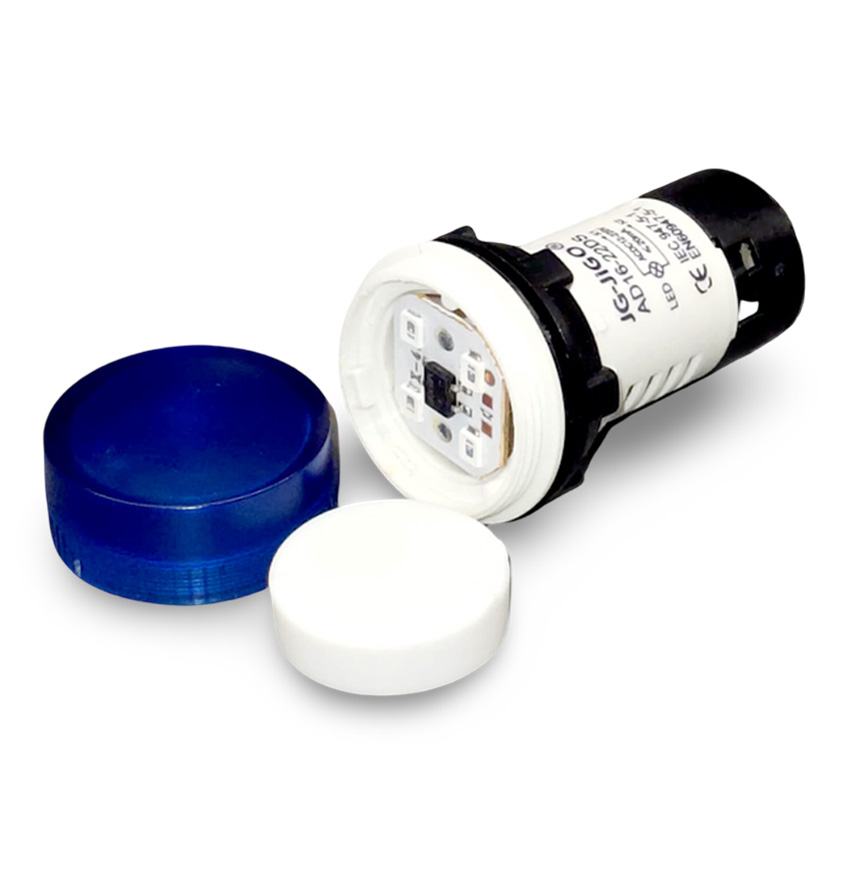

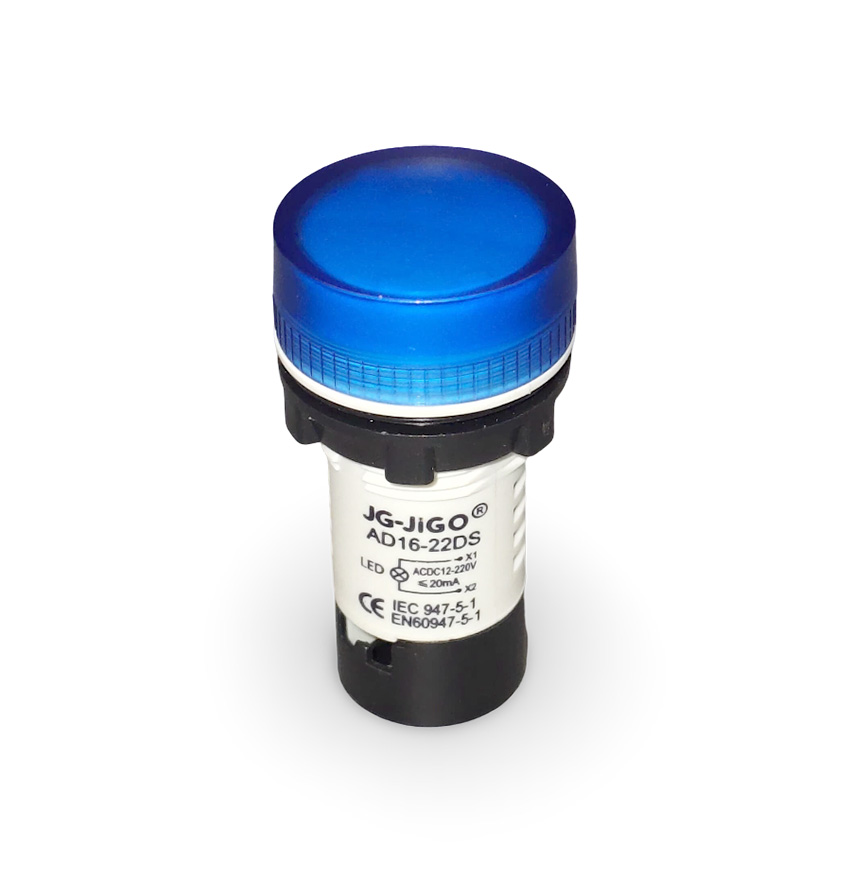

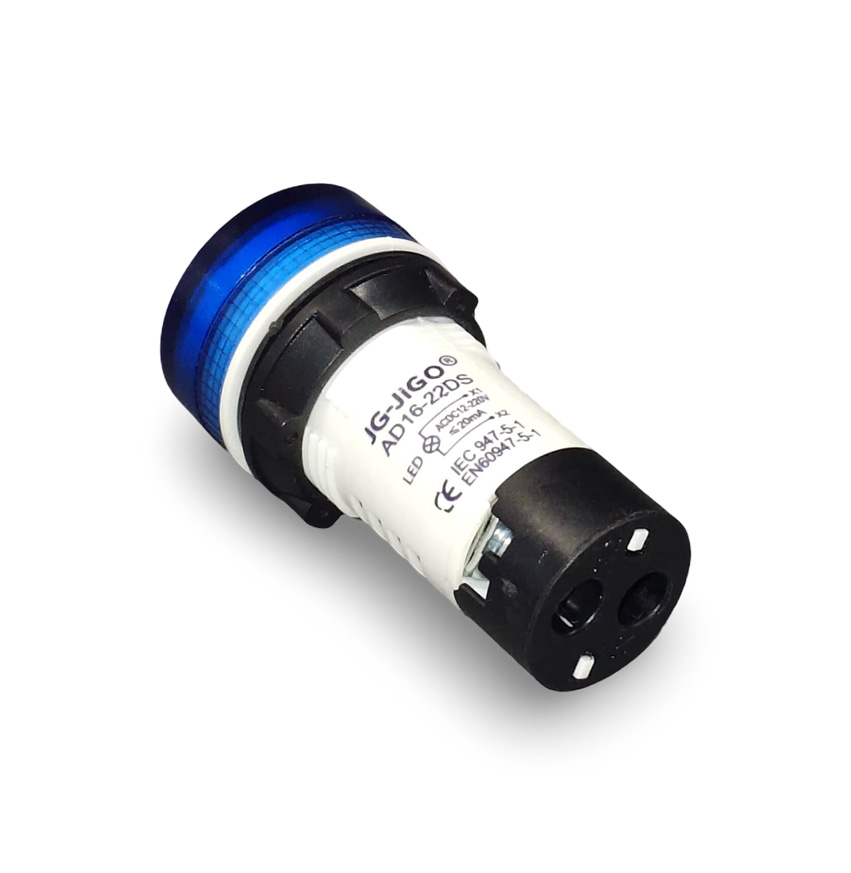

AD16‑22DS Blue Indicator is a compact 22 mm panel-mounted LED pilot light offering reliable signaling with a clear blue indication for industrial control panels and machinery.
Enquire on WhatsAppProduct Details
Model: AD16‑22DS
Mounting Size: Ø 22 mm panel hole
Color: Blue LED lens
Voltage Range: 3 V – 220 V AC/DC (commonly available at 12 V, 24 V, 110 V, 220 V)
Rated Current: ~20 mA (≤15–20 mA depending on voltage)
Housing Material: PC lens with flame‐retardant plastic body
Mounting: Snap-fit or screw-fit in standard panel cutout
Protection Rating: IP44 / IP65 in some models
Operating Temp: –25 °C to +75 °C
Light Life: ≥10 000 hours (LED)
Key Features
Highly visible, energy-efficient blue LED illumination
Wide voltage compatibility with AC/DC support
Long lifespan and low current consumption
Compact design suited for standard 22 mm panel mounting
Carefully rated to IEC/EN standards via equivalent series (e.g. onpow AD16)
Bright and durable polycarbonate lens
Applications
Power ON / system-ready visual indication
Status signaling in industrial automation panels
Process control dashboards
Machinery signaling and fault/status display
HVAC, elevators, and switchgear indicator systems
General-purpose pilot lamp in AC/DC equipment
