HARMONY INDICATOR AD16-22DS YELLOW
- Category: Led Indicators
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100

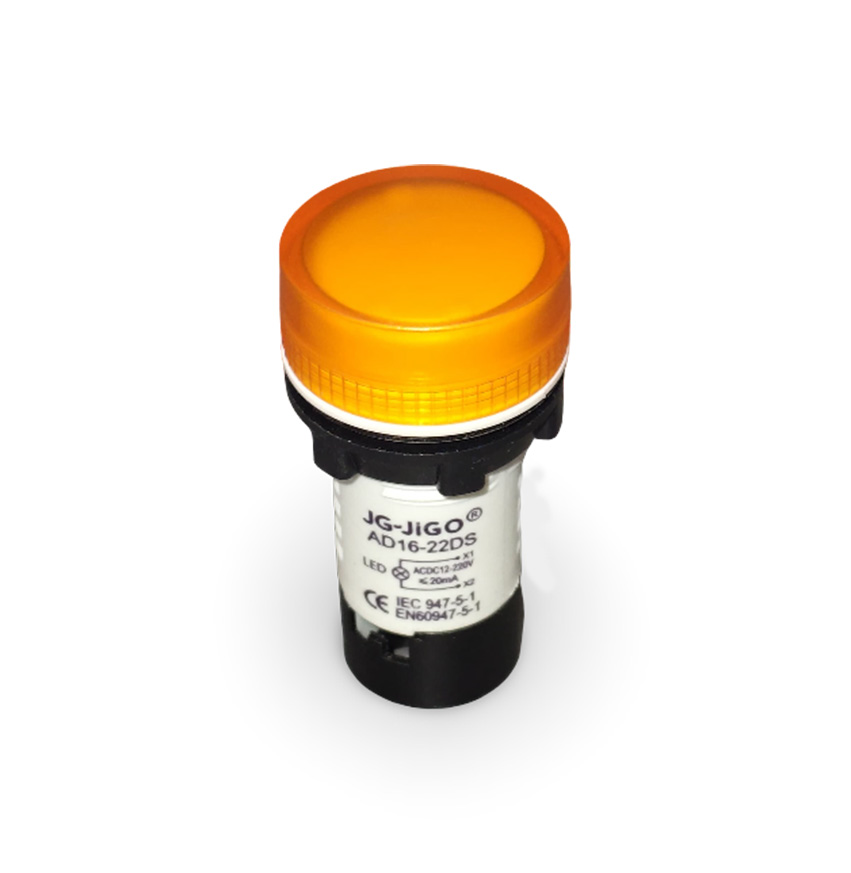

AD16‑22DS Yellow Pilot Light – A compact, energy-efficient LED indicator lamp (22 mm diameter) for clear yellow visual signaling in industrial control panels and machine status systems.
Enquire on WhatsAppProduct Details
Model: AD16‑22DS (Yellow color variant)
Mounting Hole: Ø 22 mm panel cutout
Voltage Options: AC/DC 3V, 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380V (±20%)
Current Rating: ≤ 20 mA (typically 15‑20 mA)
Brightness: Minimum 100 cd/m² (high-brightness LED)
Expected Life: ≥ 30,000 hours (LED)
Insulation Resistance: ≥ 50 MΩ (up to 660V rating)
Dielectric Strength: ≥ 2.5 kV AC, 1 min
Protection: Standard IP54; IP65 or IP67 optional on extended versions
Operating Conditions: –25 °C to +55 °C, ≤ 98% RH; withstands vibration (2–80 Hz, 0.7g)
Key Features
Bright yellow LED with excellent visibility and low power draw
Wide voltage compatibility with both AC and DC supply

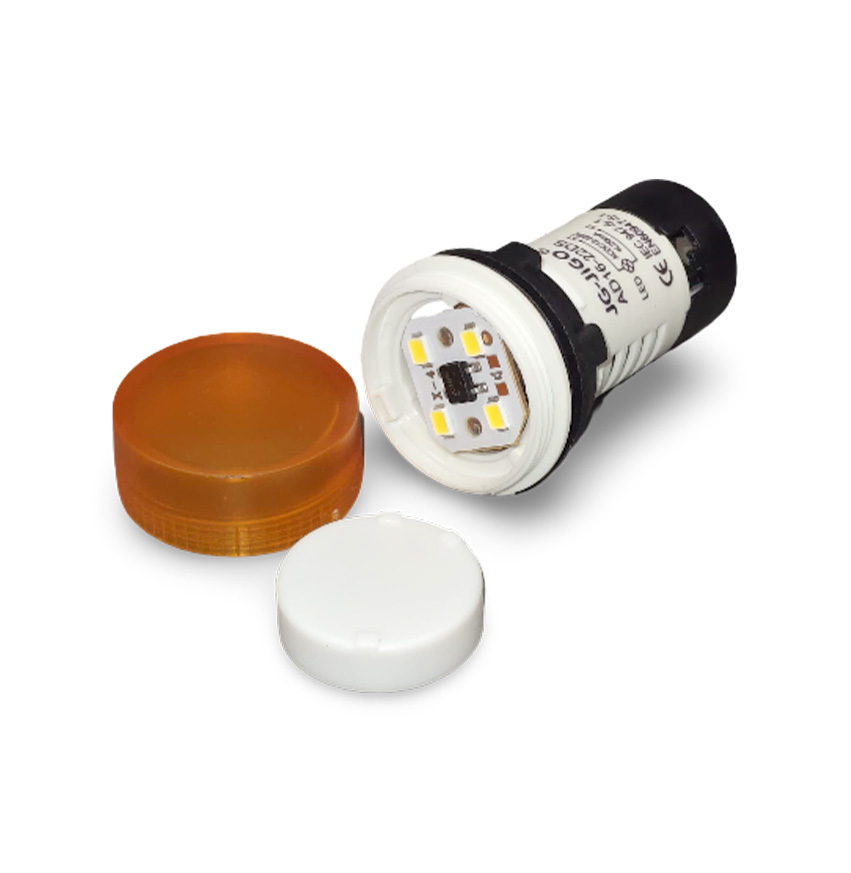

Solid-state LED offering long operational life and low maintenance

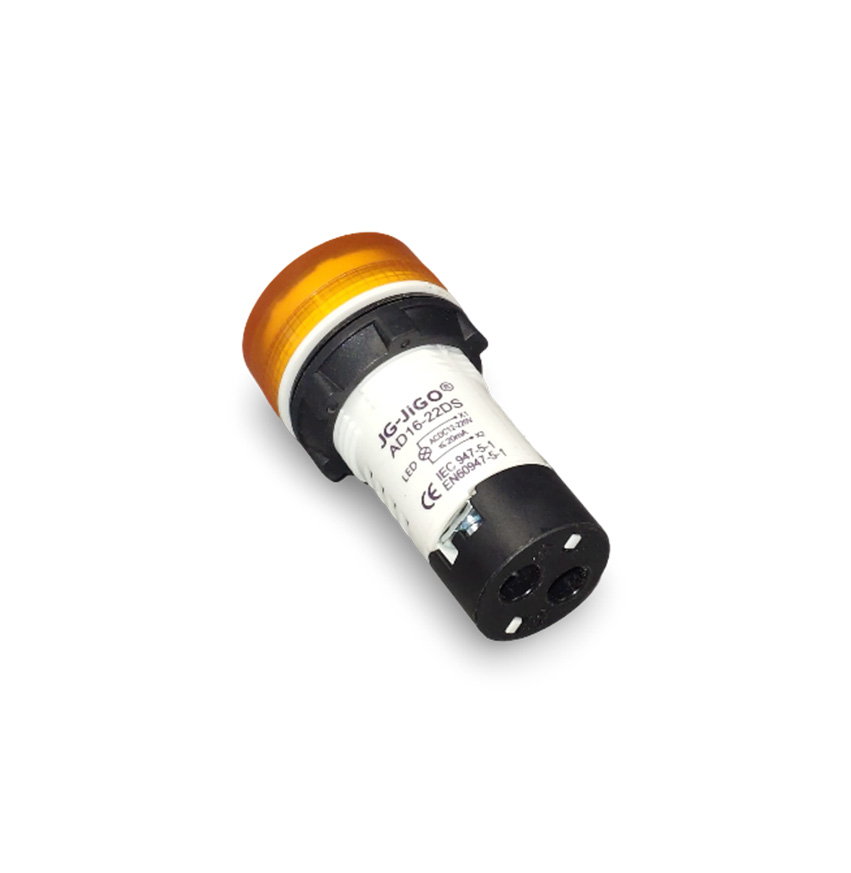

Panel-mountable in standard 22 mm cutout; simple wiring via screw terminals
Durable polycarbonate lens and flame-retardant body
Optional enhanced IP ratings available for washdown or outdoor use
Meets IEC/EN safety and performance standards via AD16 series design
Applications
Status indication in industrial control and PLC panels
Signal warning or readiness display in machinery
Process control dashboard indicators
HVAC system status lights, switchgear, and electrical board monitoring
Machine shop lighting signals, factory automation, and safety systems
