INSULATOR-R-10X50
- Category: INSULATOR
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100

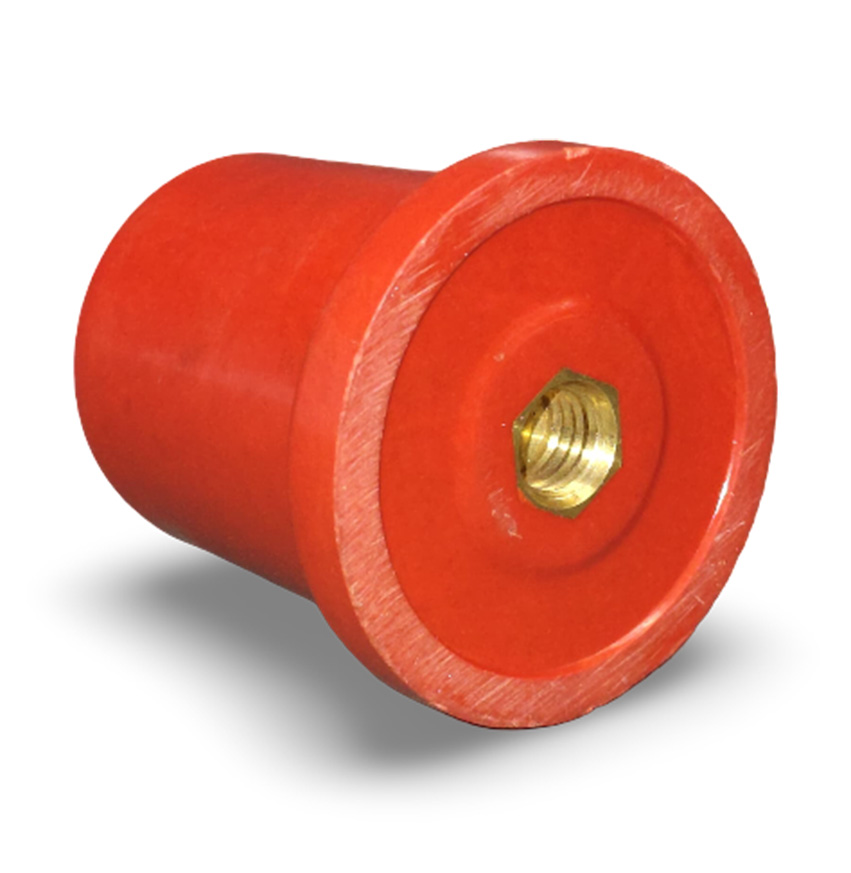

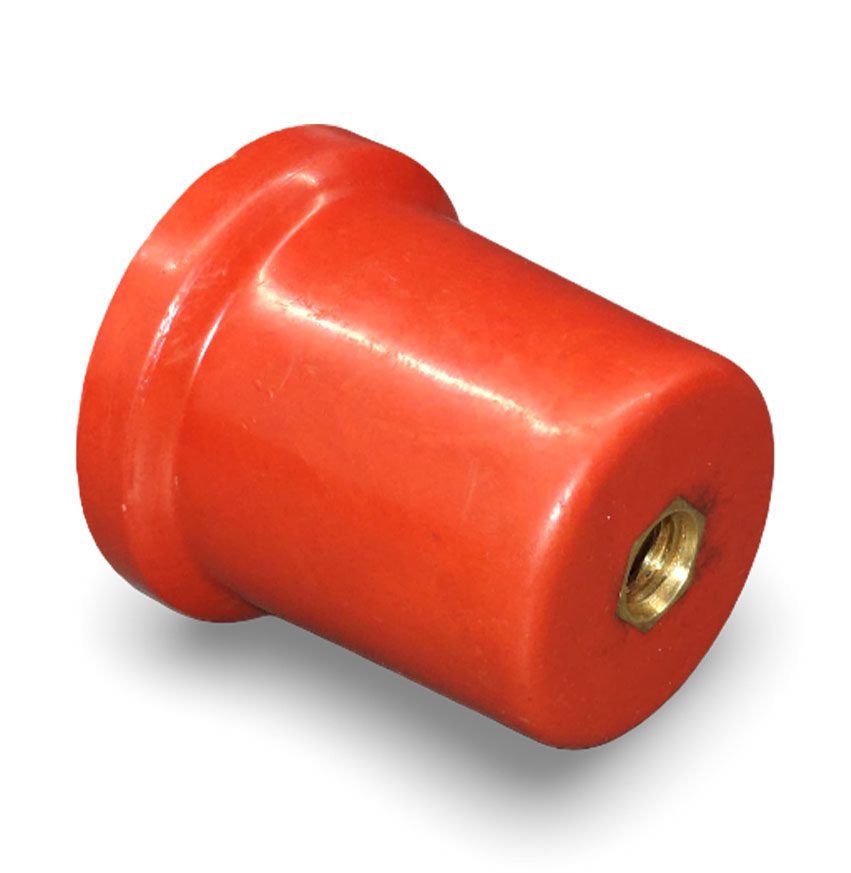

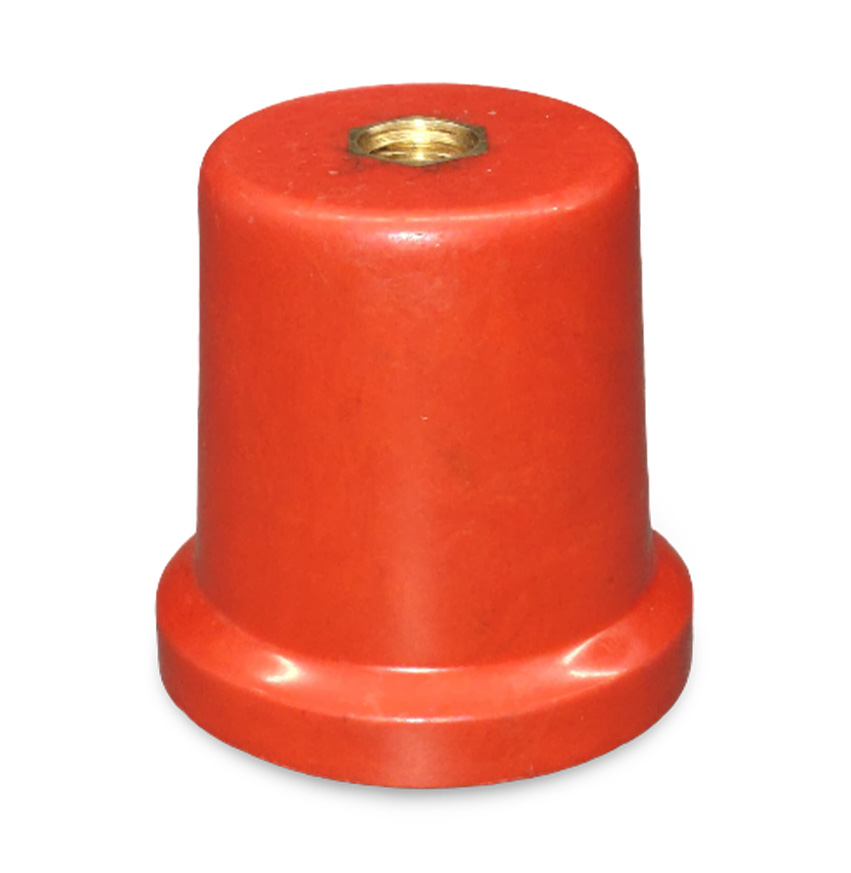

R-10X50 Insulator is a compact, high-strength cylindrical electrical insulator used for supporting and isolating electrical conductors or terminals, particularly in low- to medium-voltage panels.
Enquire on WhatsAppProduct Details
Model: R-10X50
Diameter: 10 mm
Height/Length: 50 mm
Material: DMC (Dough Molding Compound) / Phenolic Resin
Mounting Thread: M5 (typical) – threaded metal inserts at both ends
Color: Usually red or maroon
Rated Voltage: Up to 660V
Insulation Resistance: >10⁹ Ω
Flame Resistance: Yes
Temperature Range: -40°C to +130°C
Key Features
High dielectric strength
Flame retardant and heat resistant
Excellent mechanical strength in compact size
Corrosion-resistant metal inserts
Easy installation in confined panels
Applications
Electrical control panels
Terminal support in distribution boxes
Isolating electrical contacts
Miniature switchgear or junction boxes
Instrumentation panels
