LA115-C201-22MM
- Category: MONO LEVER SWITCH
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1000

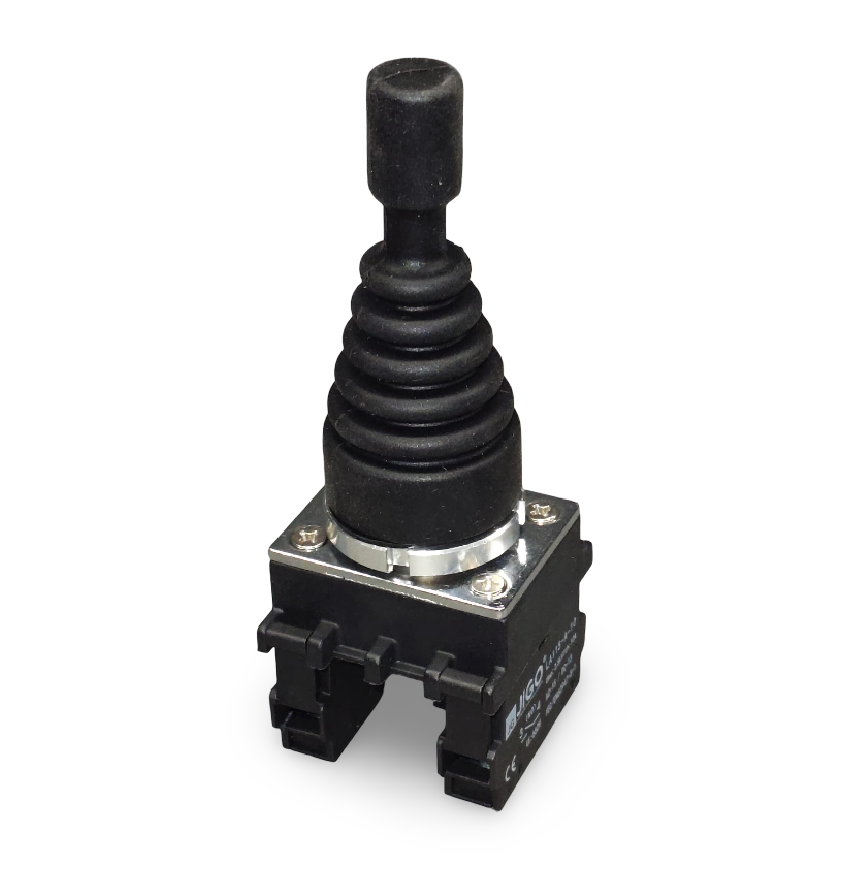

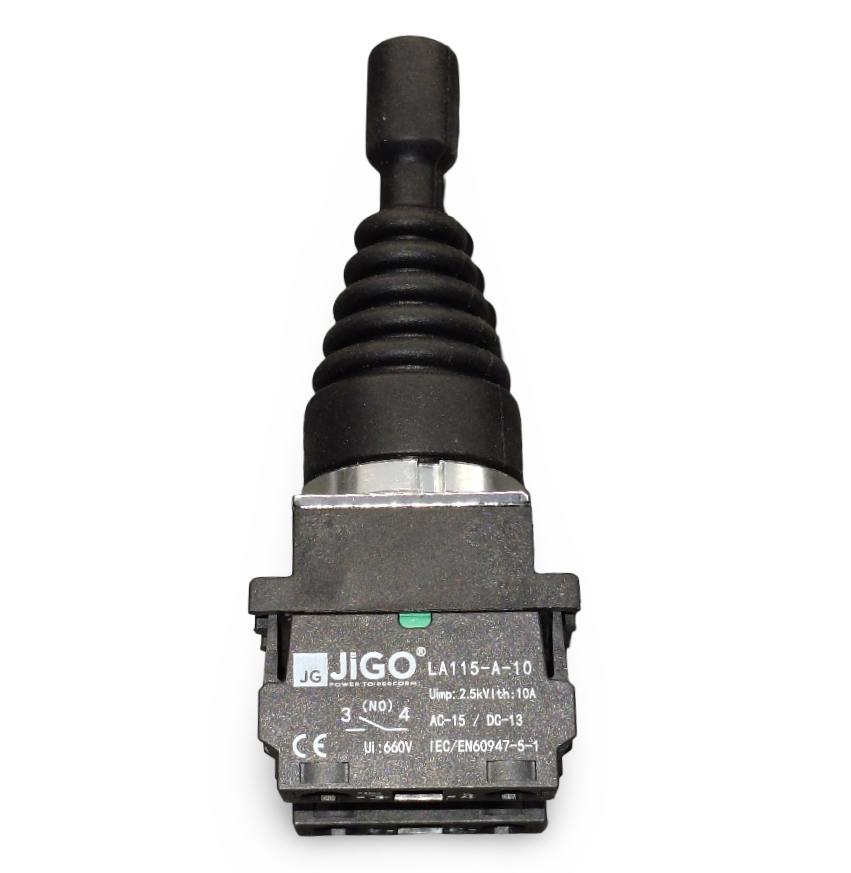

The LA115-C201 22mm mono lever switch is a compact, panel-mount control device designed for durable and reliable manual operations in industrial settings.
Enquire on WhatsAppProduct Details:
Model: LA115-C201
Mounting Hole Diameter: 22mm
Function: Mono-stable (returns to original position when released)
Contact Configuration: 1NO + 1NC
Rated Voltage: 660V AC
Rated Thermal Current (Ith): 10A
Switch Type: Lever actuator (spring return)
Terminal Type: Screw terminals
Material: Flame-retardant thermoplastic housing
Front Panel Protection: IP65 (dustproof and water-resistant)
Key Features:
Compact 22mm panel cut-out design
Smooth lever operation with spring return
Dual contacts (NO + NC) for versatile applications
High durability and long mechanical life
Front IP65 rating for tough environments
Easy installation with standard screw terminals
Applications:
Industrial control panels
Machinery start/stop operations
Conveyor systems
Manual process control in automation
Test benches and equipment setups
