LA115-C2011-22MM
- Category: MONO LEVER SWITCH
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1000

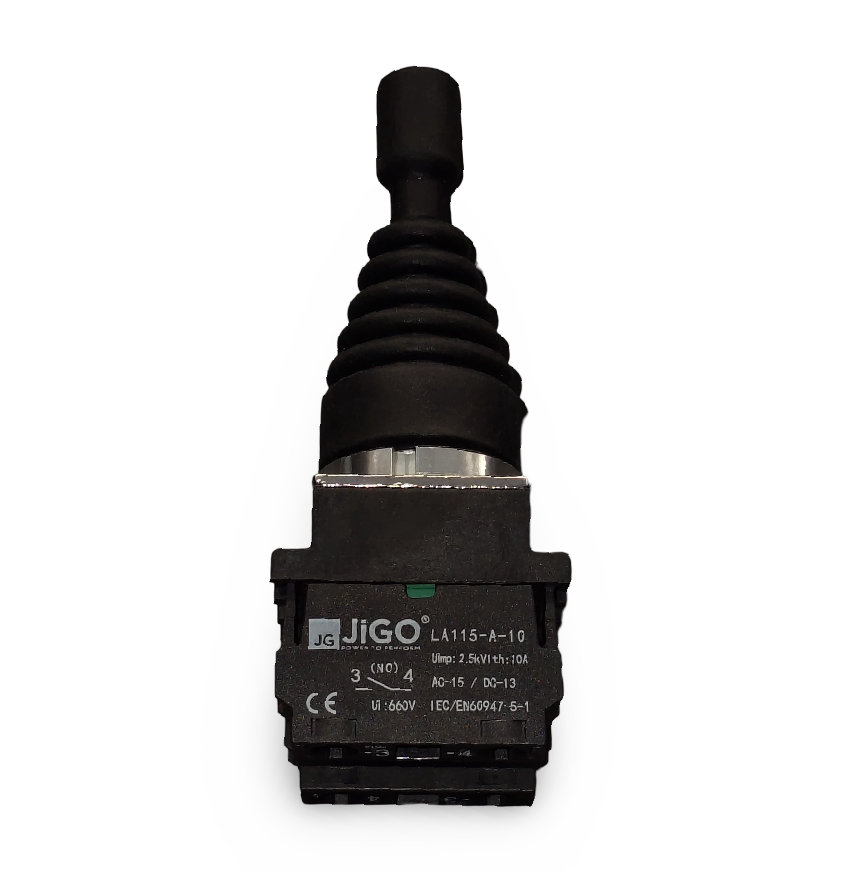

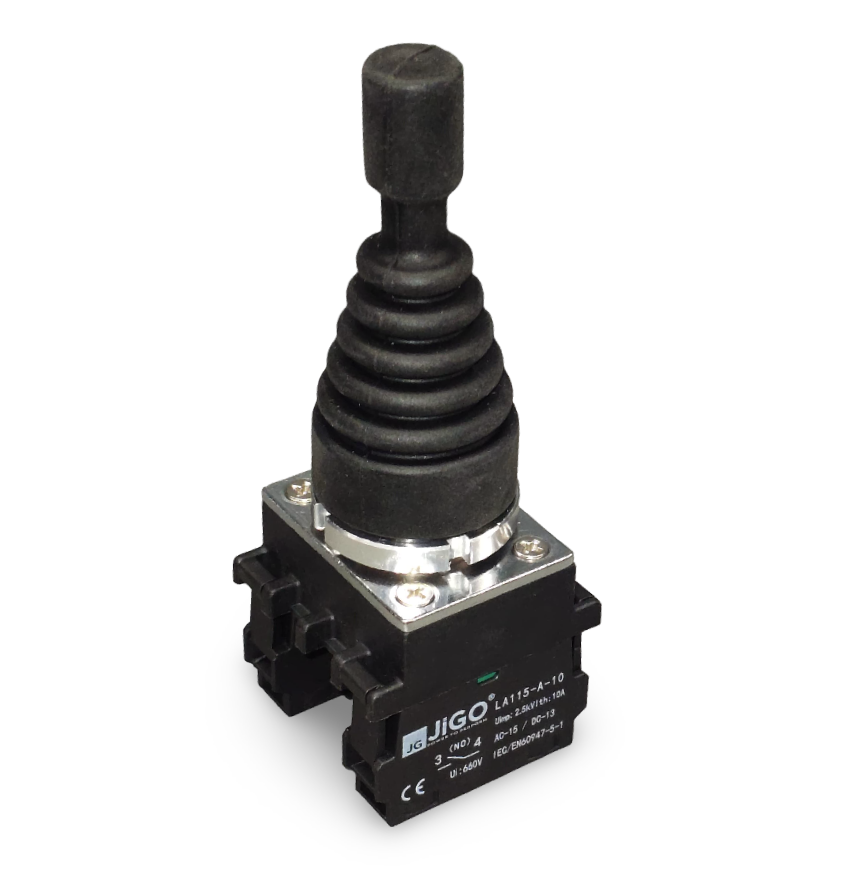

The LA115-C2011 is a compact 22mm mono-stable lever switch designed for momentary control in industrial automation and machinery, offering durability and precise manual operation.
Enquire on WhatsAppProduct Details:
Model: LA115-C2011
Cut-Out Size: 22mm
Operation Type: Mono-stable (momentary)
Contact Configuration: 1NO + 1NC (One Normally Open, One Normally Closed)
Rated Insulation Voltage: 660V
Conventional Thermal Current (Ith): 10A
Actuator Type: Narrow Lever Handle
Mounting Type: Panel mount with nut tightening
Front Protection Rating: IP65
Material: High-strength thermoplastic and metal components
Terminal Type: Screw terminals
Key Features:
Space-saving 22mm mounting
Mono-stable design for momentary push-return action
Dual-contact setup (NO + NC) for flexible circuit design
Rugged build suitable for industrial environments
Easy to install and maintain
Resistant to oil, water, and dust (IP65 front)
Applications:
Industrial automation panels
Start/stop manual control systems
Conveyor belt controls
CNC machine control panels
Manual override and reset stations
