PTN 1-10 Pin Terminal
- Category: COPPER TERMINALS
- Brand: Jigo
- Minimum quantity: 100
- Price: ₹ 186
JiGO PTN 1-10 — Pin Type Terminal (Non-Insulated), for 1.5 mm² wire. Tin-plated copper barrel. Crimped with an ordinary crimping plier. Rate shown is per piece.

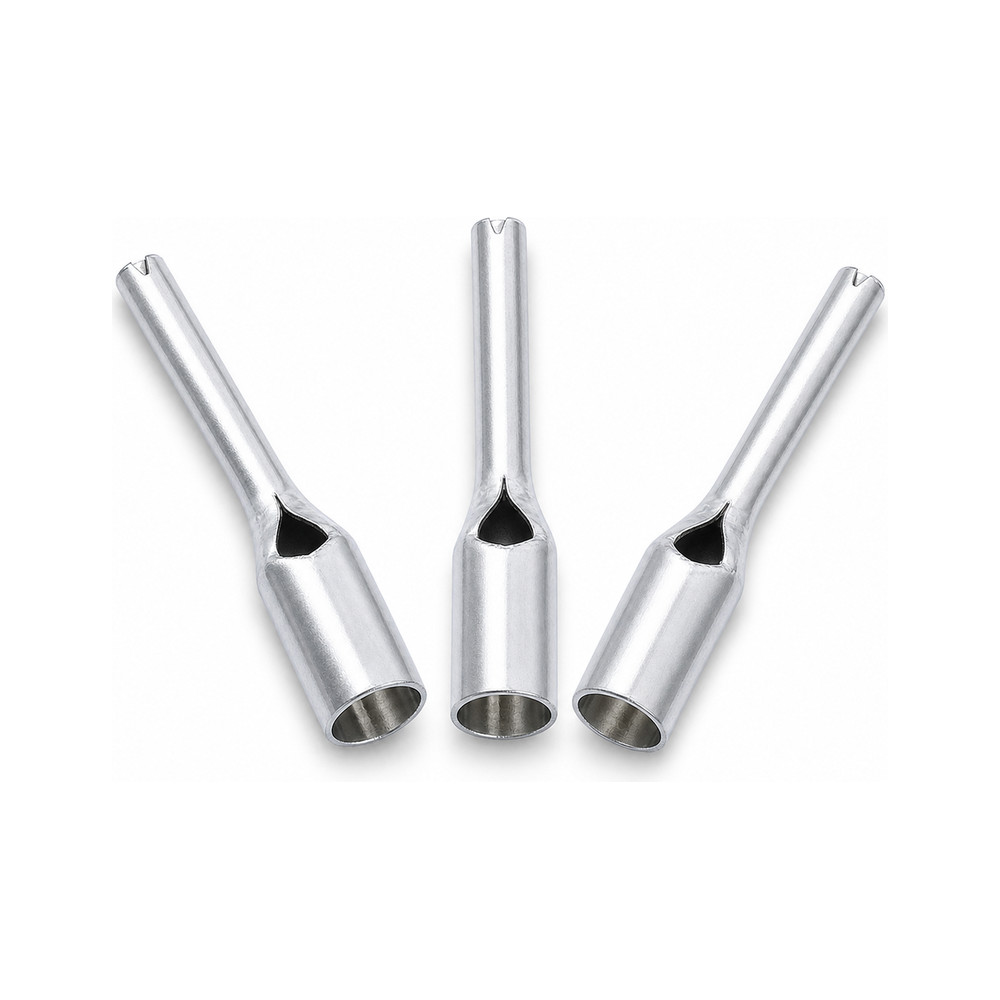

Enquire on WhatsAppThe JiGO JG-PTN 1-10 (HP-9) is a solid round pin crimp terminal for 1.5 mm² conductors. It converts a stranded conductor into a solid pin so it can go straight into a clamp, push-in or screw terminal without stray strands.
The barrel is rolled from tin-plated copper, so it crimps softly onto the strands and resists corrosion in humid conditions. This is a bare (non-insulated) terminal — sleeve it with heat-shrink or a PVC boot where insulation is required.
Crimp with any ordinary crimping plier for non-insulated terminals. No special die is needed.
Pricing: the rate on this page is per piece. The factory packet is 2,000 pieces and the carton is 50,000 pieces.
- Brand: JiGO
- Model / Part No.: JG-PTN 1-10 (HP-9)
- Type: Pin Type Terminal (Non-Insulated)
- Conductor size: 1.5 mm²
- Barrel material: Tin-plated copper
- Insulation: None (bare terminal)
- Crimping tool: Standard crimping plier for non-insulated terminals
- Packet quantity: 2,000 pieces
- Carton quantity: 50,000 pieces
- Price basis: per piece
- Rate shown is per piece. Minimum order 100 pieces.
- Packet: 2,000 pieces · Carton: 50,000 pieces. Packet and carton rates on request.
- Also searched as: copper terminal, crimp terminal, cable terminal end, pin terminal, needle type lug.
- GST as applicable is included in the displayed rate.
- Available ex-stock at Arjun Trading Company, Ludhiana. Call for packet and carton rates.
