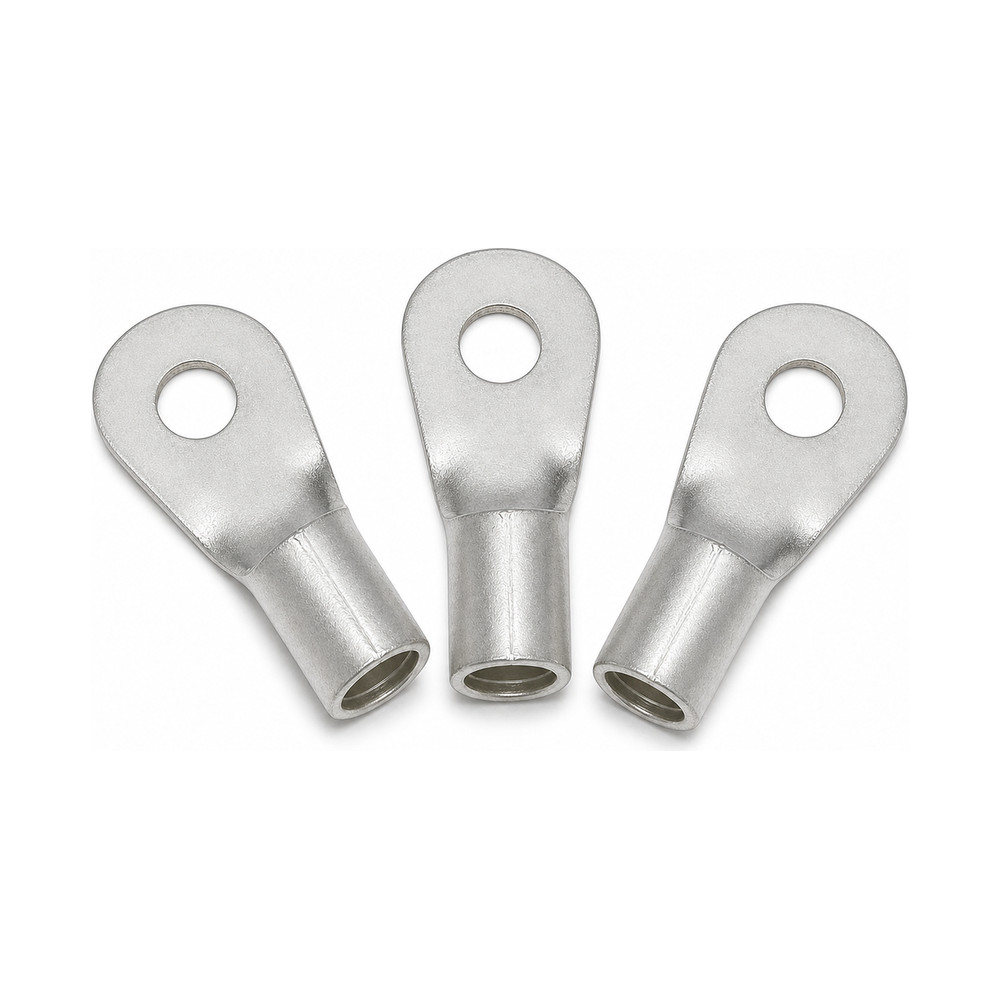

RNB 2-8 Ring Terminal
- Category: COPPER TERMINALS
- Brand: Jigo
- Minimum quantity: 100
- Price: ₹ 351
JiGO RNB 2-8 — Ring Type Terminal (Non-Insulated), for 2.5 mm² wire, 8 mm stud hole. Tin-plated copper barrel. Crimped with an ordinary crimping plier. Rate shown is per piece.
Enquire on WhatsAppThe JiGO JG-RNB 2-8 (7013) is a closed ring tongue crimp terminal for 2.5 mm² conductors, with a 8 mm hole to suit an M8 screw or stud. It the closed ring cannot slip off the stud even if the nut loosens, so it is the safer choice for vibration, earthing and any connection that must not come adrift.
The barrel is rolled from tin-plated copper, so it crimps softly onto the strands and resists corrosion in humid conditions. This is a bare (non-insulated) terminal — sleeve it with heat-shrink or a PVC boot where insulation is required.
Crimp with any ordinary crimping plier for non-insulated terminals. No special die is needed.
Pricing: the rate on this page is per piece. The factory packet is 1,500 pieces and the carton is 37,500 pieces.
- Brand: JiGO
- Model / Part No.: JG-RNB 2-8 (7013)
- Type: Ring Type Terminal (Non-Insulated)
- Conductor size: 2.5 mm²
- Stud / hole size: 8 mm
- Barrel material: Tin-plated copper
- Insulation: None (bare terminal)
- Crimping tool: Standard crimping plier for non-insulated terminals
- Packet quantity: 1,500 pieces
- Carton quantity: 37,500 pieces
- Price basis: per piece
- Rate shown is per piece. Minimum order 100 pieces.
- Packet: 1,500 pieces · Carton: 37,500 pieces. Packet and carton rates on request.
- Also searched as: copper terminal, crimp terminal, cable terminal end, ring terminal, O-type lug, eye terminal.
- GST as applicable is included in the displayed rate.
- Available ex-stock at Arjun Trading Company, Ludhiana. Call for packet and carton rates.
