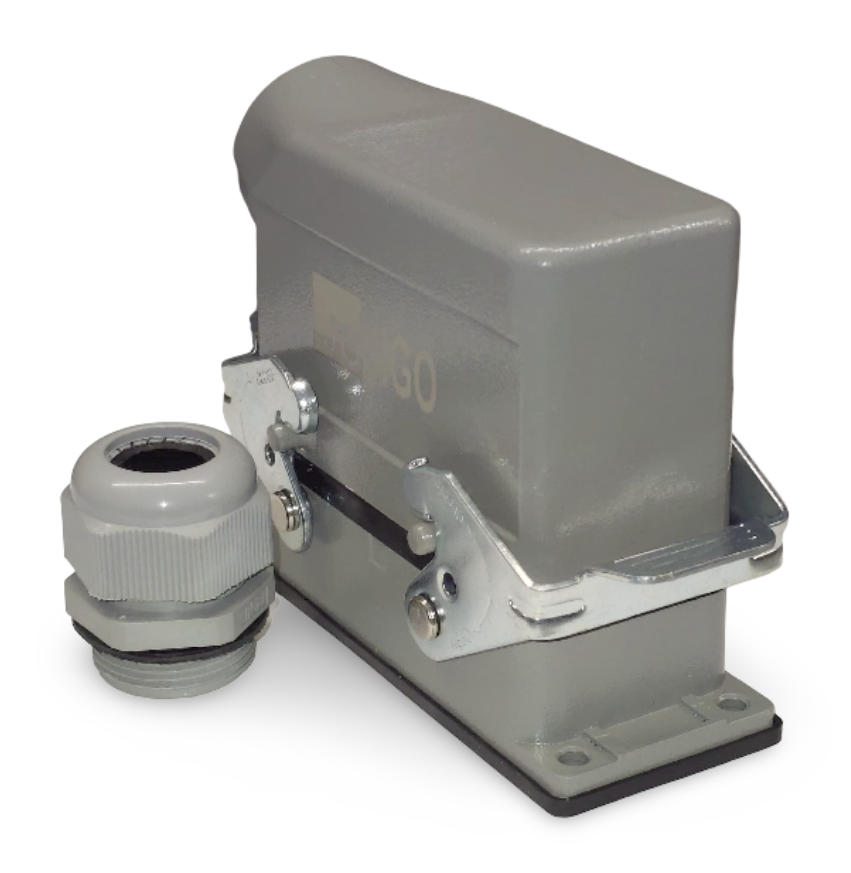

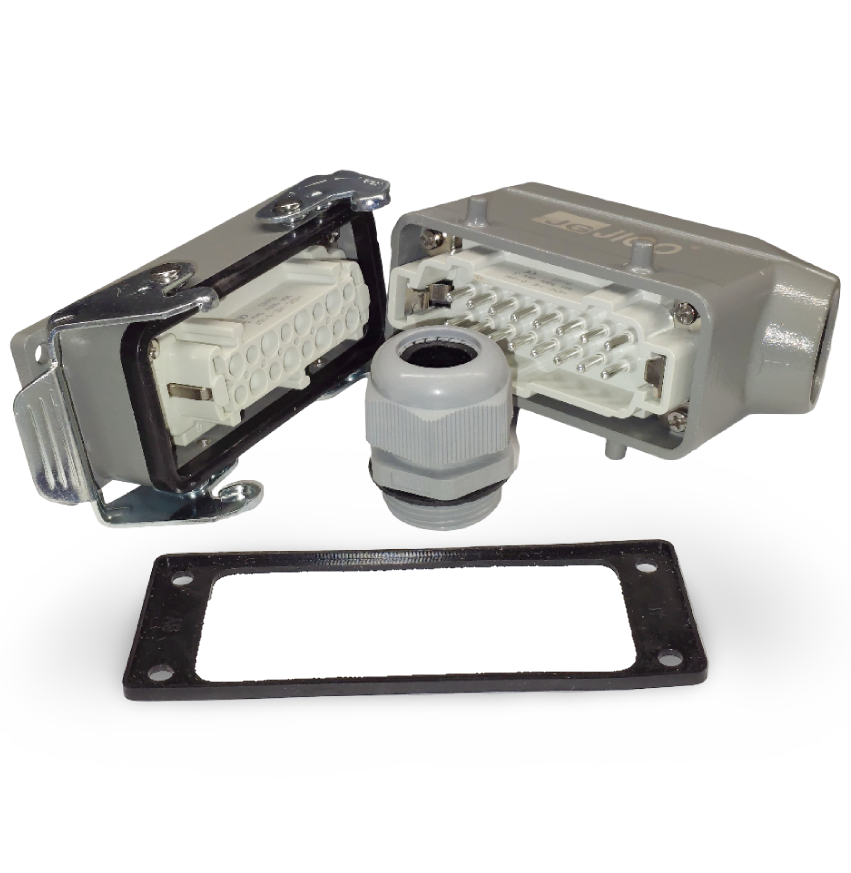

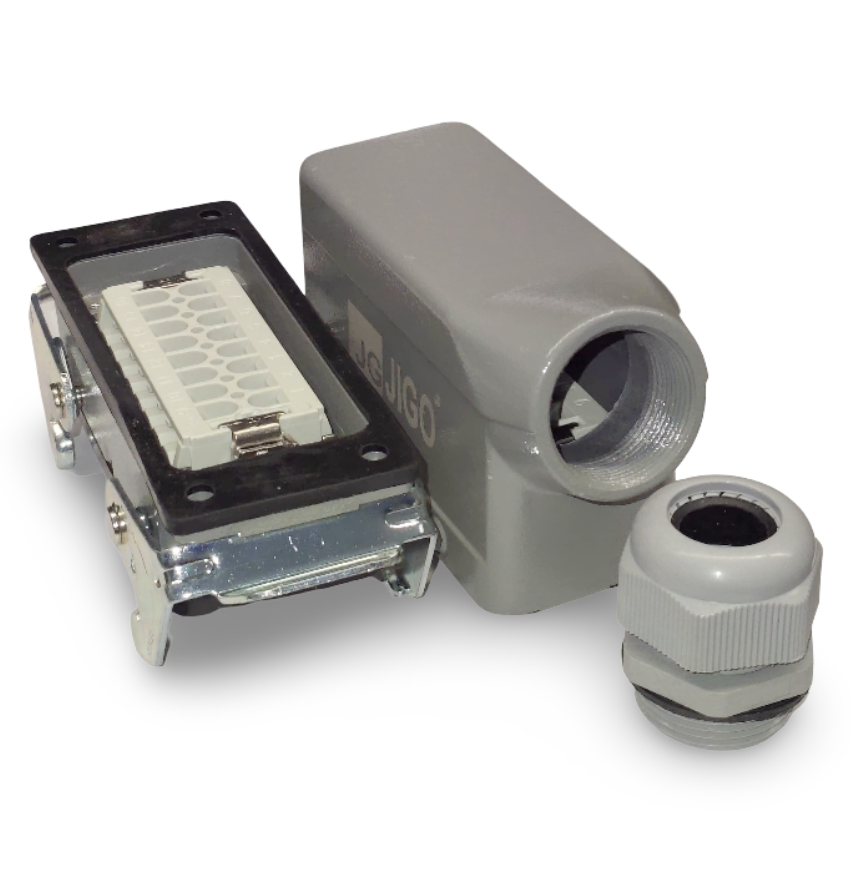

HDC-16PIN Heavy Duty Connector
- Category: HEAVY DUTY CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1300
HDC 16 PIN Heavy Duty Connector – Industrial-grade 16-pole connector designed for safe, high-density power and signal transmission in harsh operating environments.
Enquire on WhatsAppProduct Details:
Model: HDC 16 PIN
Type: Heavy Duty Industrial Connector
Number of Contacts: 16 poles
Rated Current: 10A – 16A
Rated Voltage: Up to 500V AC/DC
Housing Material: Die-cast aluminum alloy (powder-coated)
Insert Material: Flame-retardant thermoplastic UL94-V0
Contact Material: Copper alloy (silver/nickel-plated)
Wire Gauge Supported: 0.75 mm² – 2.5 mm²
Mounting Type: Panel, bulkhead, or cable entry
Connection Type: Screw / crimp / spring type
Temperature Range: -40°C to +125°C
IP Rating: IP65 / IP67 when mated
Locking Mechanism: Double locking levers or single latch
Key Features:
Durable and weather-resistant heavy-duty build
Provides stable and secure multi-pin electrical connections
Supports high signal density in limited space
Easy and fast locking system for quick maintenance
Interchangeable with standard industrial connector systems
Long service life; suitable for repeated mating cycles
Applications:
Industrial automation systems
Machine tools and robotics
Control panels and power distribution units
Wind turbines and solar inverters
Packaging, printing, and textile machinery
Transportation (railways, logistics equipment)
