HDC-4 PIN STRAIGHT Heavy Duty Connector
- Category: HEAVY DUTY CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ā¹ 500

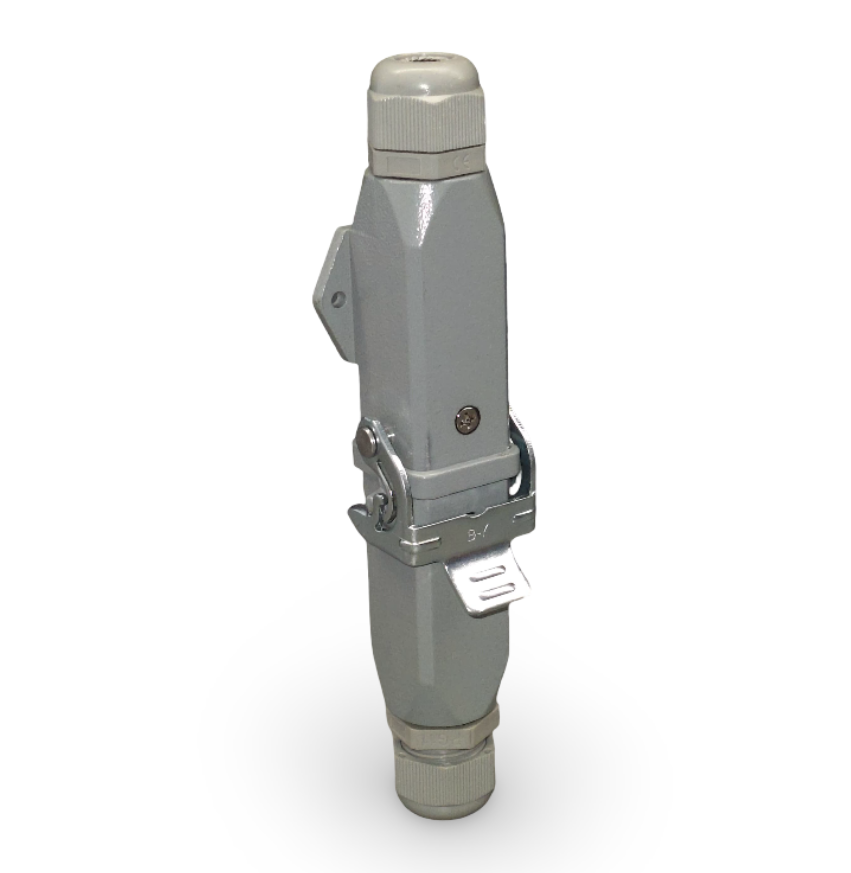

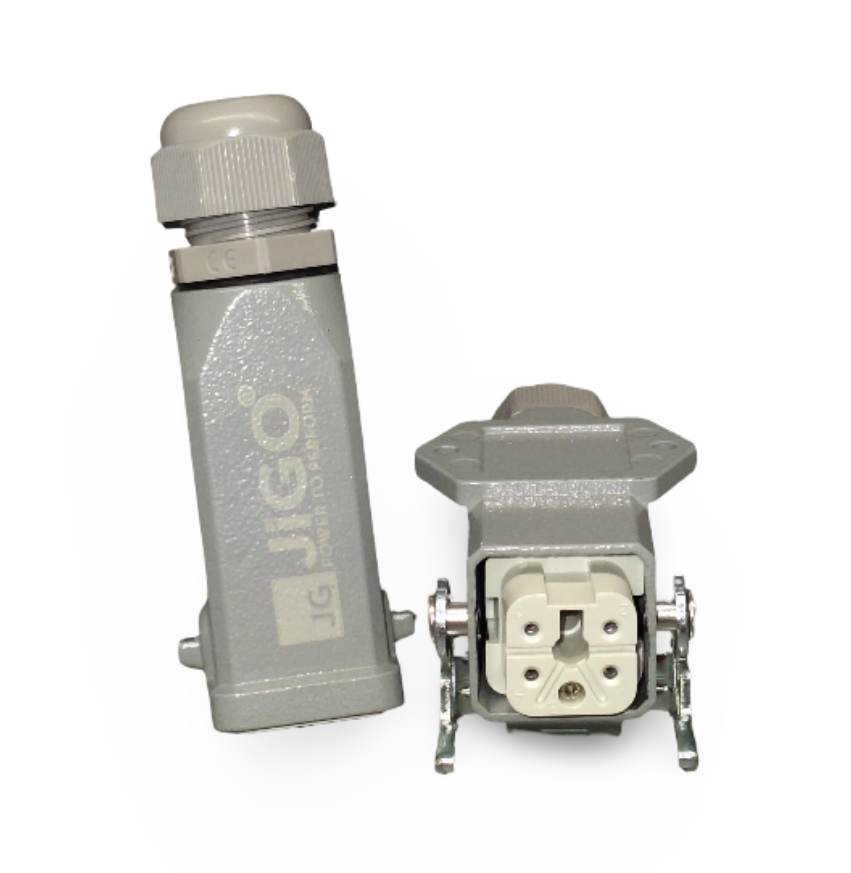

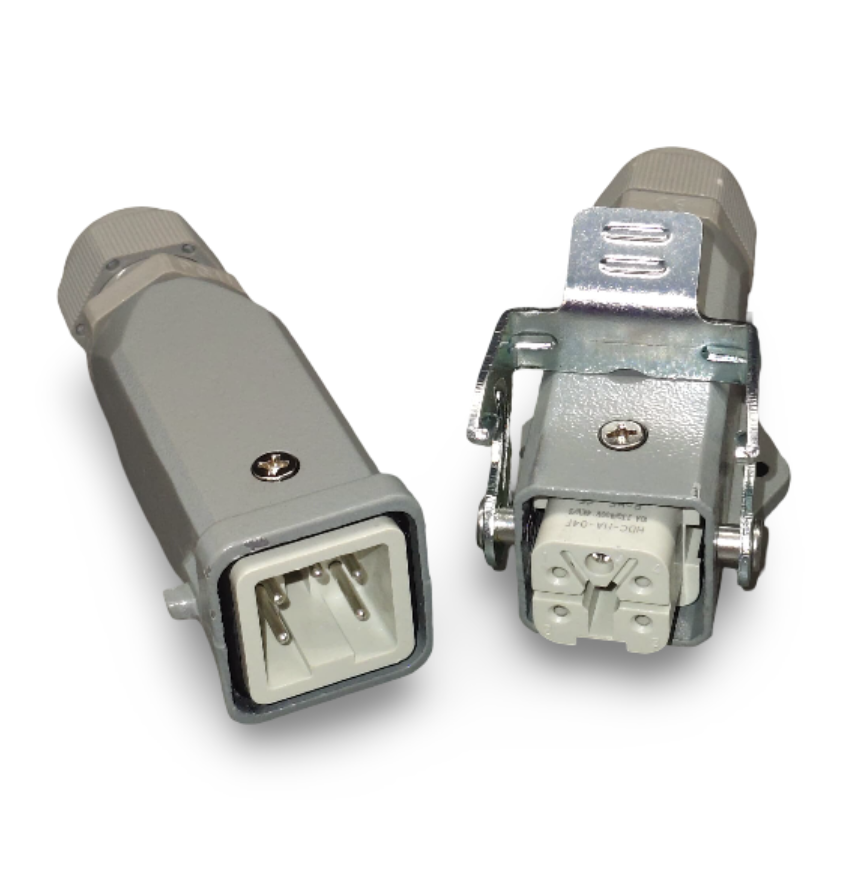

HDC-4 PIN Straight Connector ā A robust and reliable industrial-grade connector for secure and efficient electrical connections in demanding environments.
Enquire on WhatsAppProduct Details:
Model: HDC-4 Pin Straight
Type: Heavy Duty Connector
Configuration: 4-pin, straight type
Connector Gender: Male/Female (depending on part)
Material: Die-cast aluminum alloy housing with insulation inserts
Contact Material: Copper alloy with silver or gold plating
Rated Voltage: Typically 250Vā500V AC/DC
Rated Current: 10Aā16A (varies by contact spec)
Temperature Range: -40Ā°C to +125Ā°C
Mounting: Cable-end or panel-mount straight entry
Ingress Protection: IP65/IP67 with sealing
Key Features:
Compact and rugged design for industrial applications
Quick-connect and disconnect mechanism
Resistant to dust, water, and mechanical stress
Excellent electrical conductivity and contact reliability
Secure screw or latch locking system
Long service life in harsh environments
Applications:
Industrial machinery and automation
Power distribution and signal transmission
Robotics and material handling systems
Renewable energy equipment
Railways, marine, and outdoor electrical systems
Control cabinets and instrumentation setups
