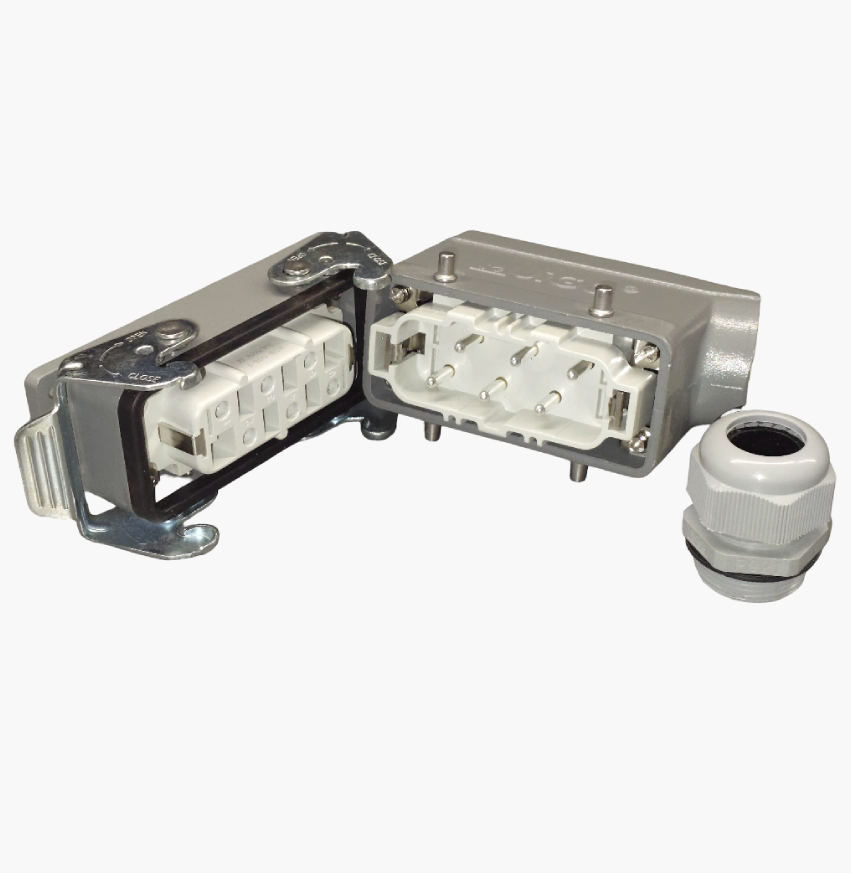

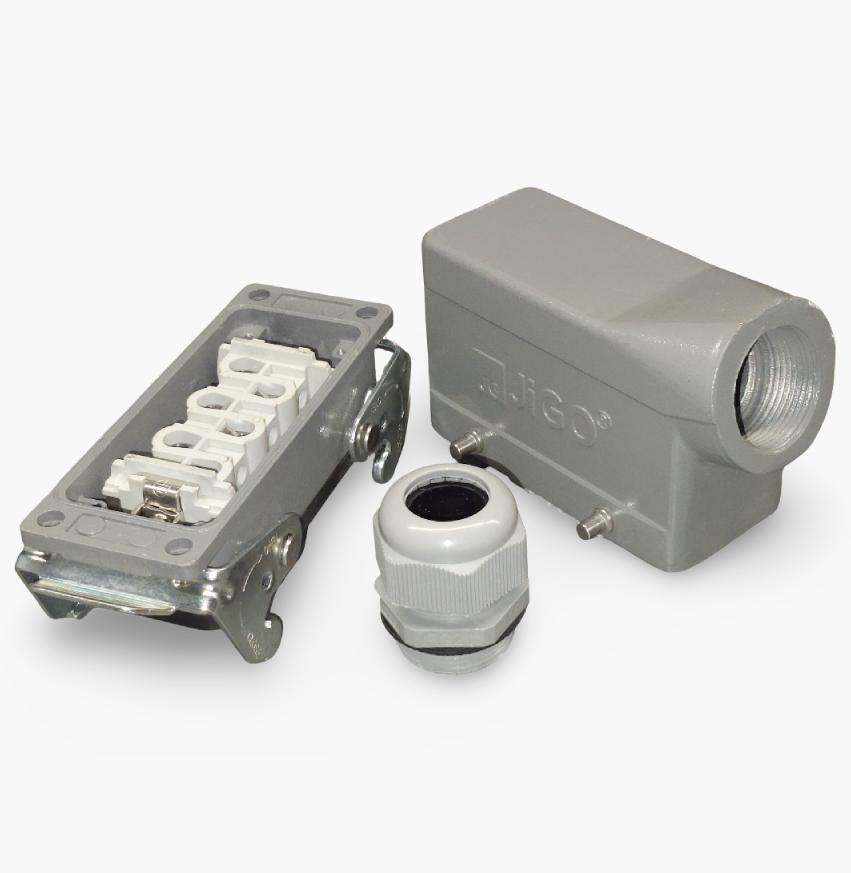

HDC-6 PIN Heavy Duty Connector
- Category: HEAVY DUTY CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 700
HDC 6 PIN Heavy Duty Connector – Industrial-grade connector engineered for robust electrical connections in harsh environments, supporting 6-pin configurations for signal and power.
Enquire on WhatsAppProduct Details:
Model: HDC 6 PIN
Type: Heavy Duty Industrial Connector
Pin Configuration: 6 poles
Housing Material: Die-cast aluminum alloy (corrosion-resistant)
Insulation Material: High-performance thermoplastic (PA)
Contact Material: Copper alloy (silver or gold-plated contacts)
Current Rating: 10A to 16A
Voltage Rating: 250V – 500V AC/DC
Temperature Range: -40°C to +125°C
Protection Level: IP65 / IP67 (when mated with proper hood and sealing)
Mounting: Cable, panel, or bulkhead mount available
Termination Type: Screw, crimp, or spring terminal
Key Features:
Strong metal housing for mechanical durability
Reliable locking mechanism for vibration-proof connection
Water and dust resistant
Compact design with easy installation
Compatible with various industrial interface standards
Resistant to oil, chemicals, and UV exposure
Applications:
Industrial automation and PLC systems
Machine tools and CNC machinery
Robotics and material handling systems
Power distribution and control panels
Renewable energy (wind turbines, solar farms)
Transportation and rail signaling systems
