HDC-24 PIN Heavy Duty Connector
- Category: HEAVY DUTY CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1500

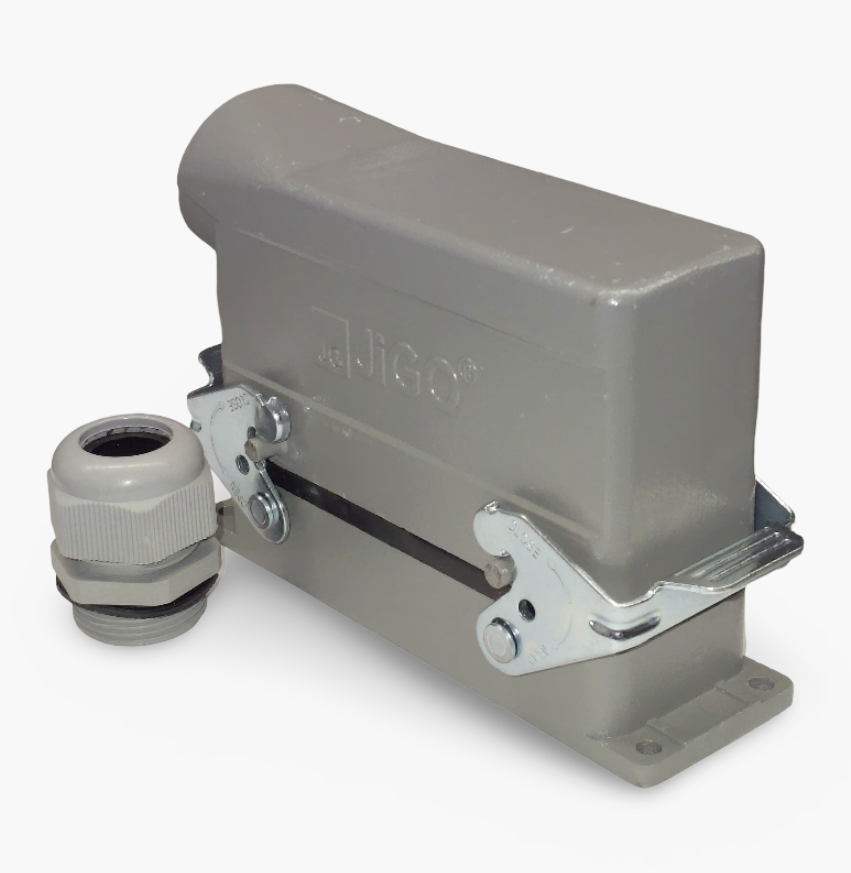

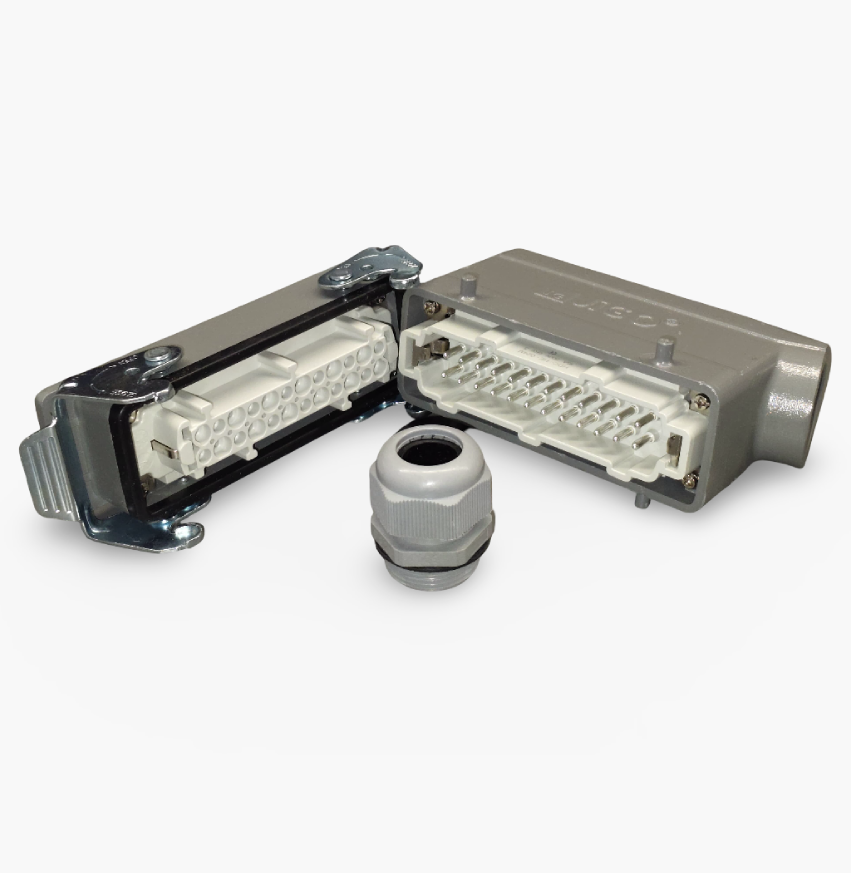

HDC-24 PIN Connector – Heavy-duty industrial multi-pin connector designed for robust electrical connections in demanding environments, with 24 contact points for higher circuit density.
Enquire on WhatsAppProduct Details:
Model: HDC-24 PIN
Connector Type: Heavy Duty Rectangular Connector
Number of Pins: 24
Housing Material: Die-cast aluminum alloy with corrosion-resistant finish
Insert Material: Flame-retardant thermoplastic
Contact Material: Silver or nickel-plated copper alloy
Mounting Type: Panel mount / surface mount compatible
Cable Entry Options: Top, side, or bottom (based on hood selection)
Rated Voltage: Up to 500V
Rated Current: 10A–16A (based on pin and wire size)
IP Rating: IP65 / IP67 when properly locked
Temperature Range: -40°C to +125°C
Locking Mechanism: Twin lever or central lock with stainless steel latch
Key Features:
24-pin layout allows for high-density wiring
Strong mechanical strength and impact resistance
Reliable sealing against dust and water ingress
Modular design for easy assembly and maintenance
Suitable for both signal and power transmission
Compatible with standard heavy-duty connector hoods/bases
Applications:
Industrial automation systems
Control cabinets and distribution panels
Heavy machinery and construction equipment
Robotics and mechatronic systems
Renewable energy (solar, wind turbines)
Railways and transport control units
