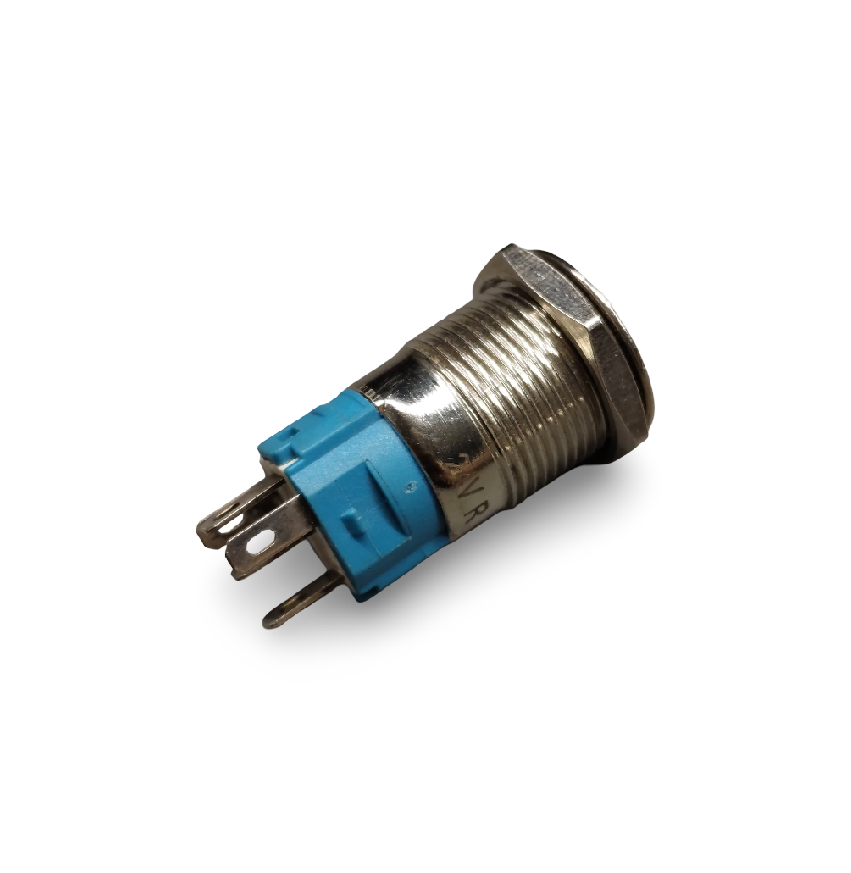

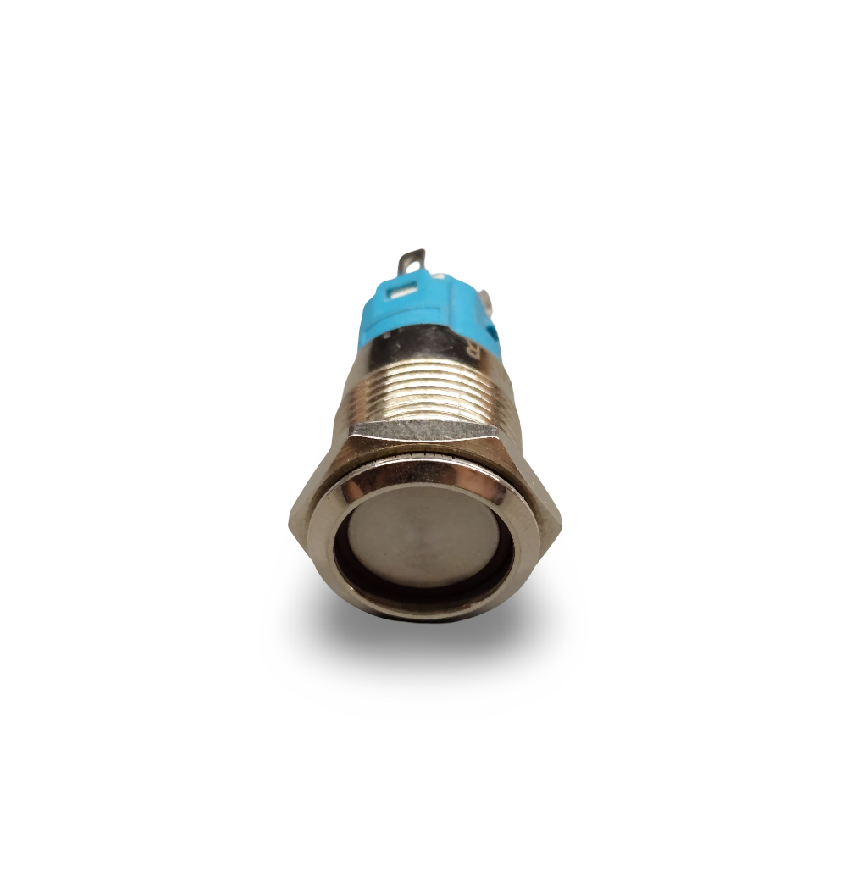

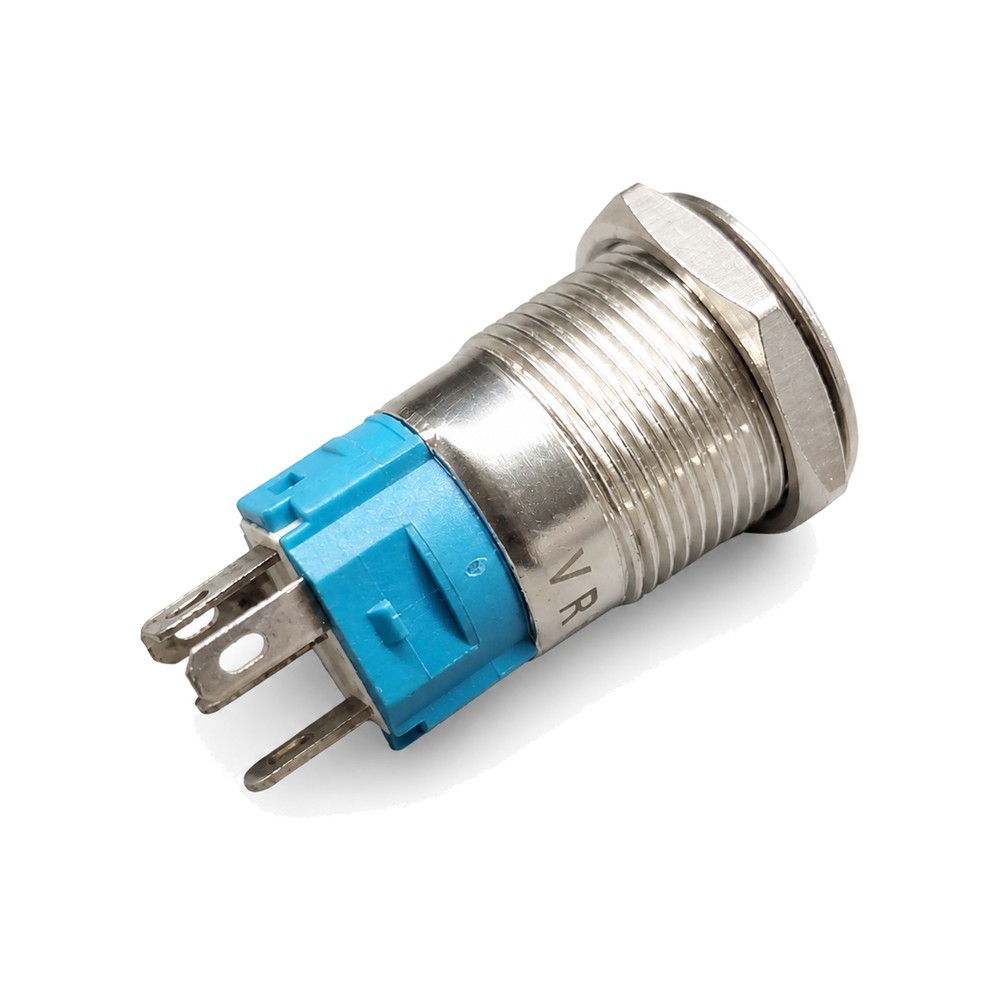

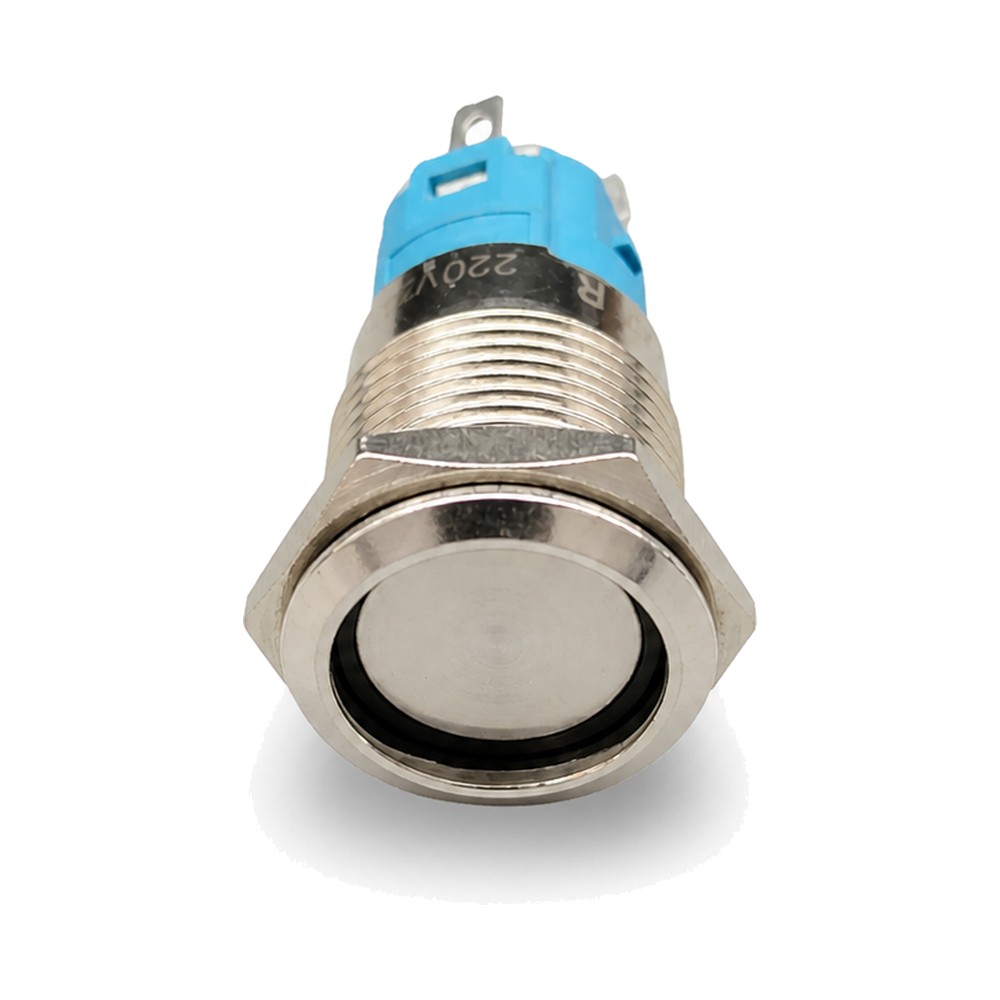

16MM 220V R LATCHING Metal Push Button Switch
The JIGO 16MM 24V R Latching Metal Push Button is a compact, durable switch designed for long-term performance in industrial control systems. It features a latching mechanism, metal construction, and 24V rated operation, offering reliable functionality in demanding environments.
Product Details:
Mounting Hole Size: 16mm diameter
Voltage Rating: 24V DC
Type: Latching (maintains ON/OFF position when pressed)
Material: Stainless steel / Aluminum alloy bezel
Button Color: Red (R)
Illumination: Optional ring or dot LED (24V LED indicator)
Contact Type: 1NO + 1NC or custom configuration
Ingress Protection: IP65 (splash and dust resistant)
Mechanical Life: > 1,000,000 cycles
Electrical Life: > 50,000 cycles
Key Features:
Strong and stylish metal body for industrial durability
Latching function holds position without continuous pressure
Compact 16mm size for space-constrained panels
Bright LED indication (Red) for clear status visibility
Easy installation with screw or quick-connect terminals
Shockproof and vibration-resistant design
Applications:
Industrial machinery controls
Access control systems
Control panels and switchboards
Automotive and marine dashboards
Elevator and kiosk buttons
DIY electronics and robotics
