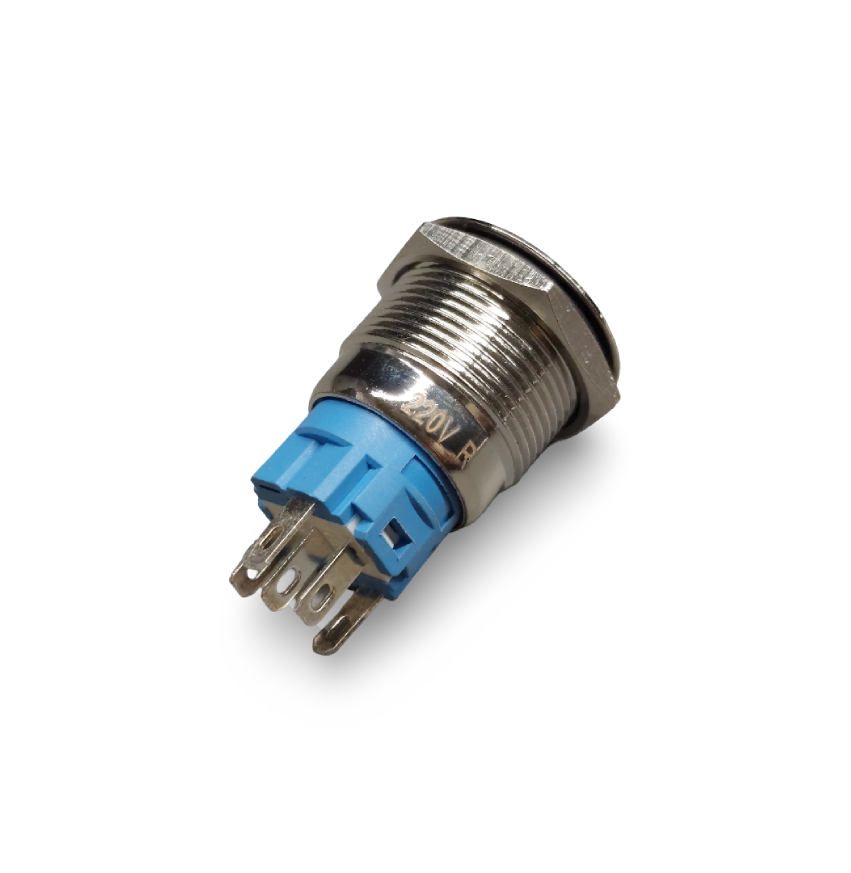

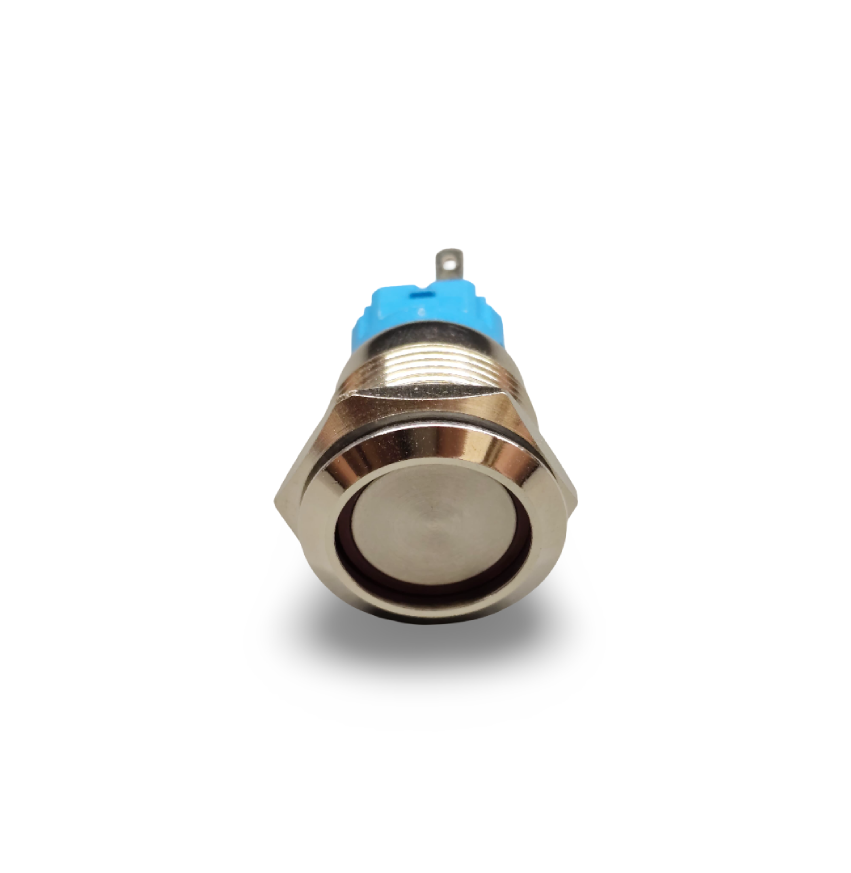

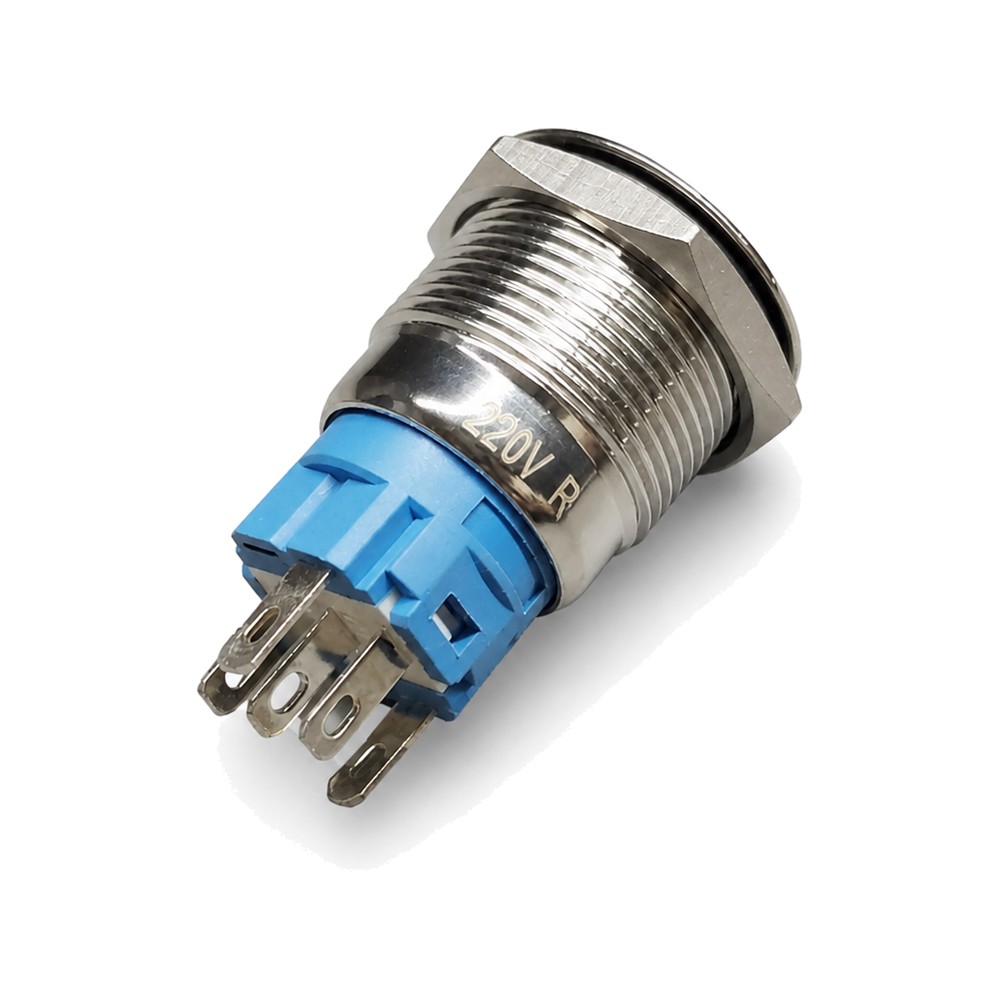

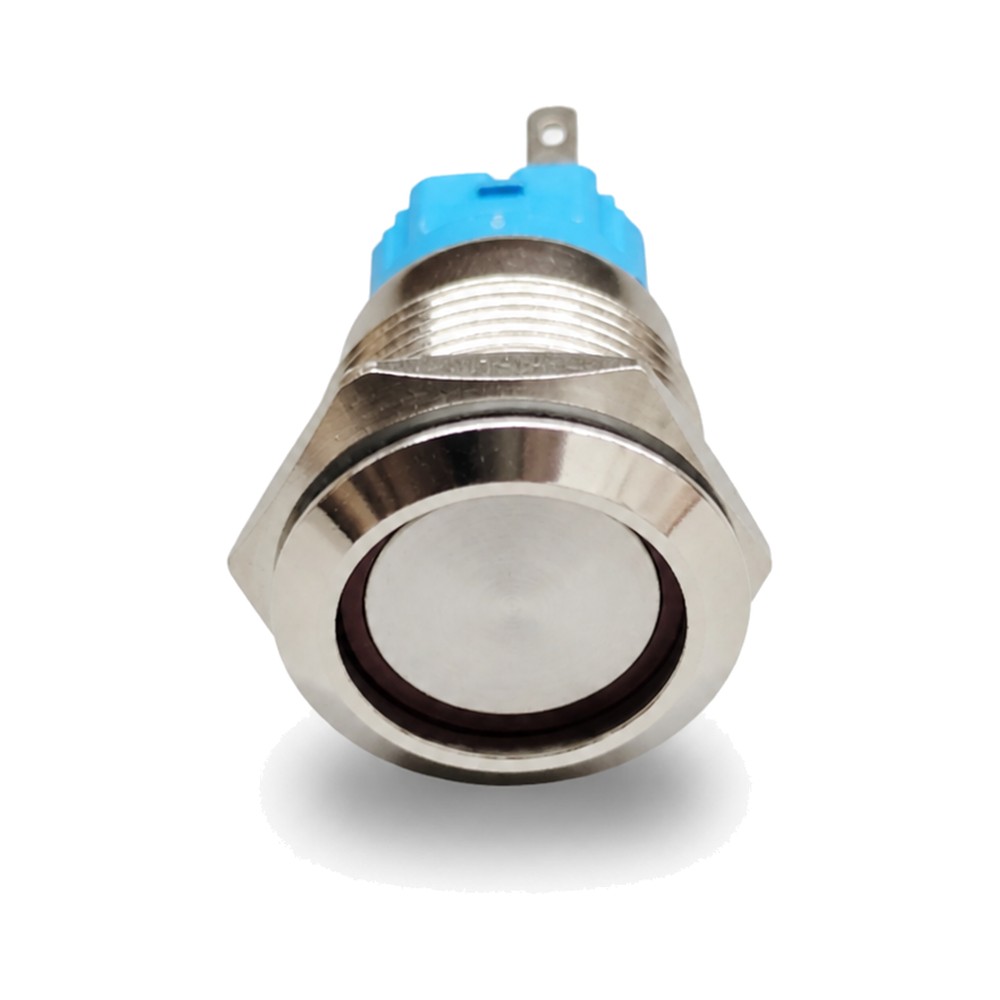

19MM 220V R LATCHING Metal Push Button Switch
The JIGO 19MM 220V R Latching Metal Push Button is a heavy-duty, illuminated switch designed for control panels and industrial equipment. It features a latching mechanism and a bright red LED ring powered by 220V AC, making it ideal for toggle applications in high-voltage systems.
Product Details:
Mounting Hole Size: 19mm diameter
Voltage Rating: 220V AC
Operation Type: Latching (press once to activate, press again to release)
Button Color: Red (R)
Illumination: Integrated red LED (220V AC)
Material: Stainless steel or zinc alloy bezel
Contact Configuration: 1NO / 1NC or 1NO+1NC (customizable)
Ingress Protection: IP65 (dust- and water-resistant)
Terminal Type: Screw or quick-connect
Mechanical Life: >1,000,000 cycles
Electrical Life: >50,000 operations
Key Features:
Reliable latching action for ON/OFF control
Robust metal body for industrial environments
High-voltage 220V red LED illumination
Weather- and dust-resistant (IP65)
Compact 19mm form factor
Simple panel installation and wiring
Applications:
Main power ON/OFF switches
Industrial control stations
HVAC and automation systems
Electrical panels and switchboards
Elevator controls
Access control panels and kiosks
