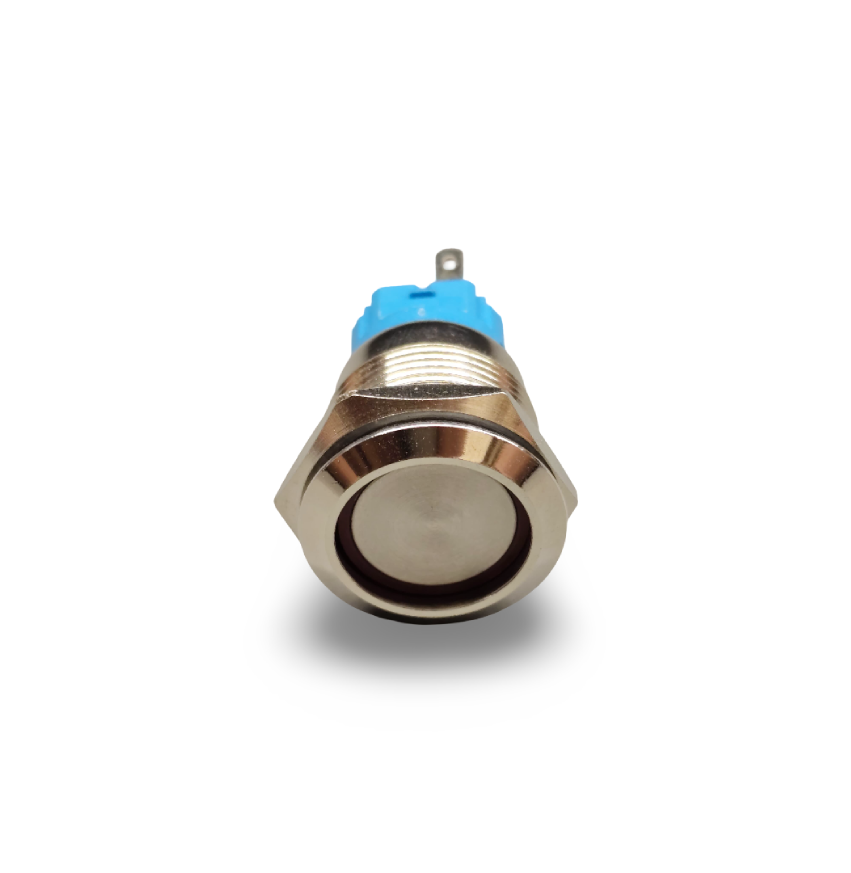

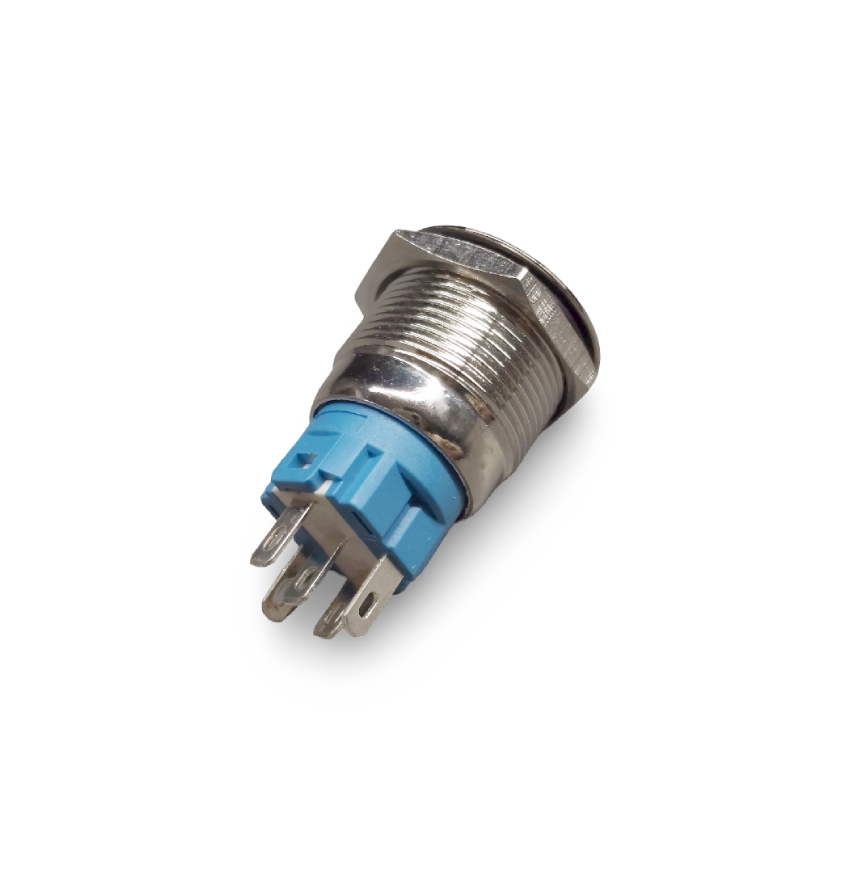

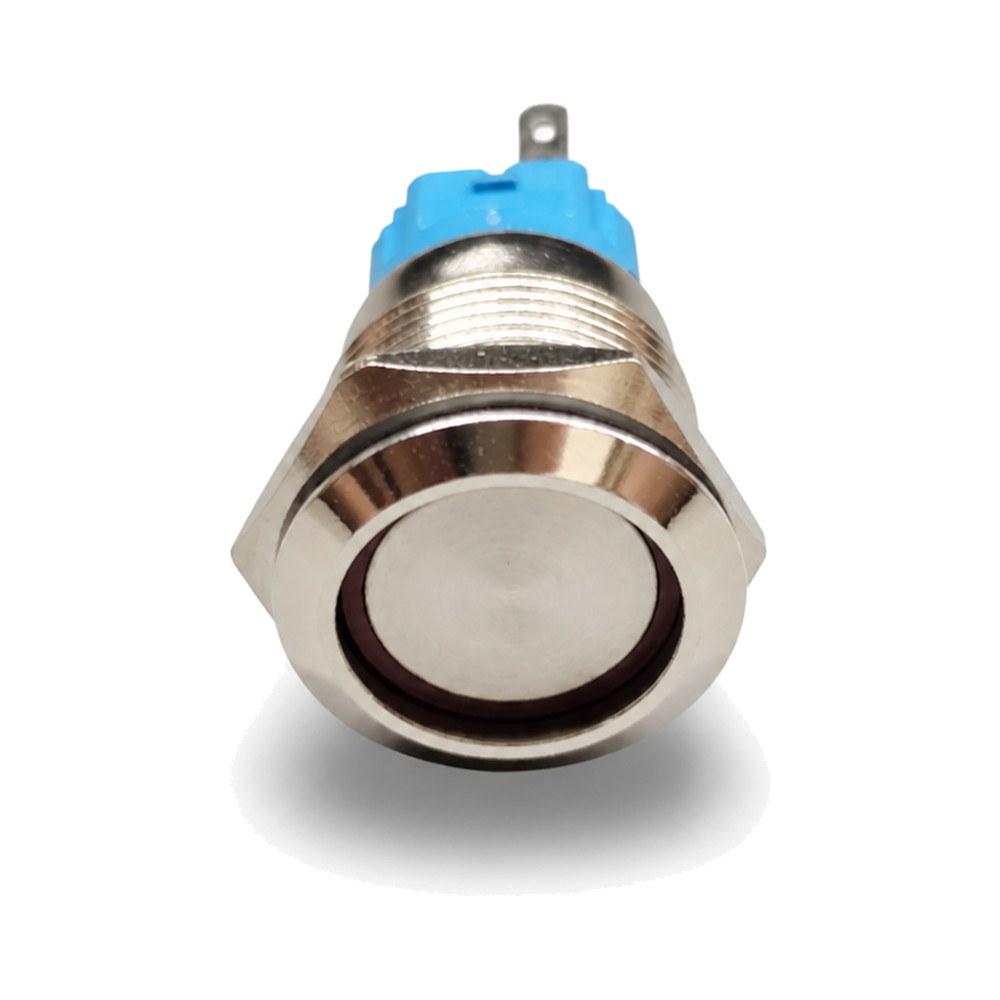

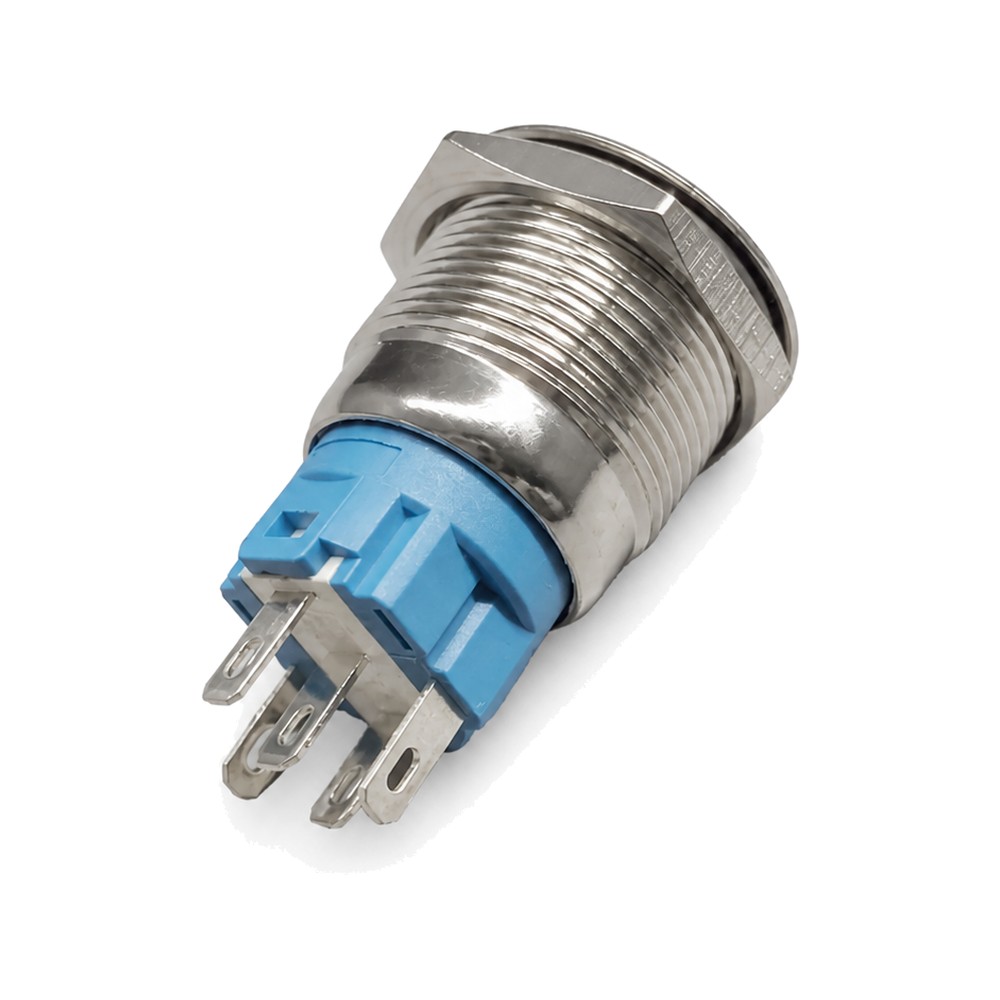

19MM 24V R LATCHING Metal Push Button Switch
The** JIGO 19MM 24V R Latching Metal Push Button** is a rugged, illuminated control switch ideal for industrial and commercial applications. With a 24V LED indicator and a reliable latching mechanism, it ensures long-term functionality and user-friendly operation in demanding environments.
Product Details:
Mounting Hole Size: 19mm diameter
Voltage Rating: 24V DC
Operation Type: Latching (press once to activate, press again to release)
Material: Stainless steel or zinc alloy housing
Button Color: Red (R)
Illumination: Built-in red LED (24V DC)
Contact Configuration: 1NO + 1NC (or customizable)
Ingress Protection: IP65 rated (dust and water resistant)
Terminal Type: Screw or quick-connect terminals
Mechanical Life: Over 1 million cycles
Key Features:
Latching action suitable for power toggling and mode selection
Strong metal construction with modern aesthetic
24V red LED for clear visual indication
IP65-rated for outdoor or industrial environments
Compact 19mm size ideal for control panels
Easy installation with standard mounting and terminal connections
Applications:
Electrical control panels
Automation equipment
Access control systems
Machinery and equipment switches
Elevator and building management systems
DIY electronics and embedded systems
