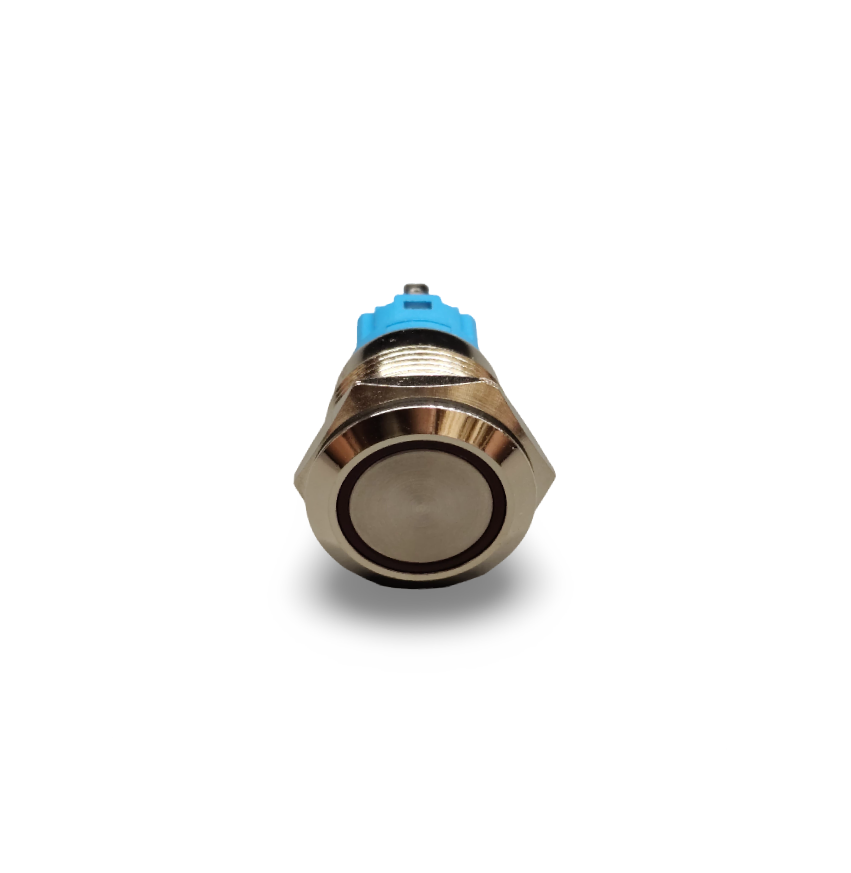

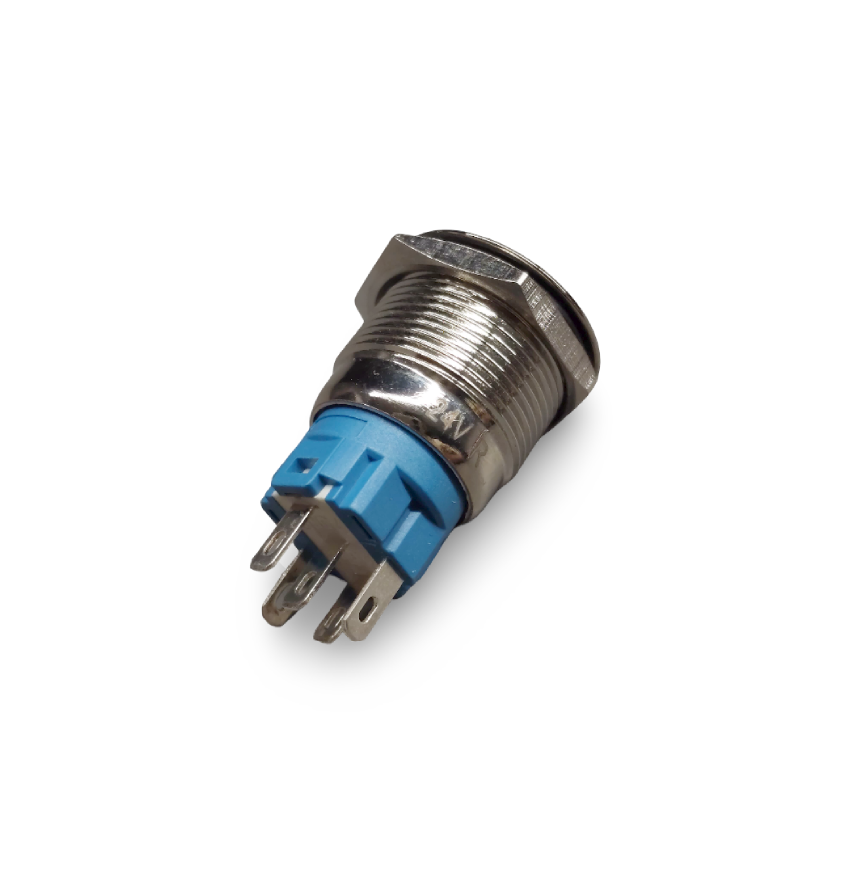

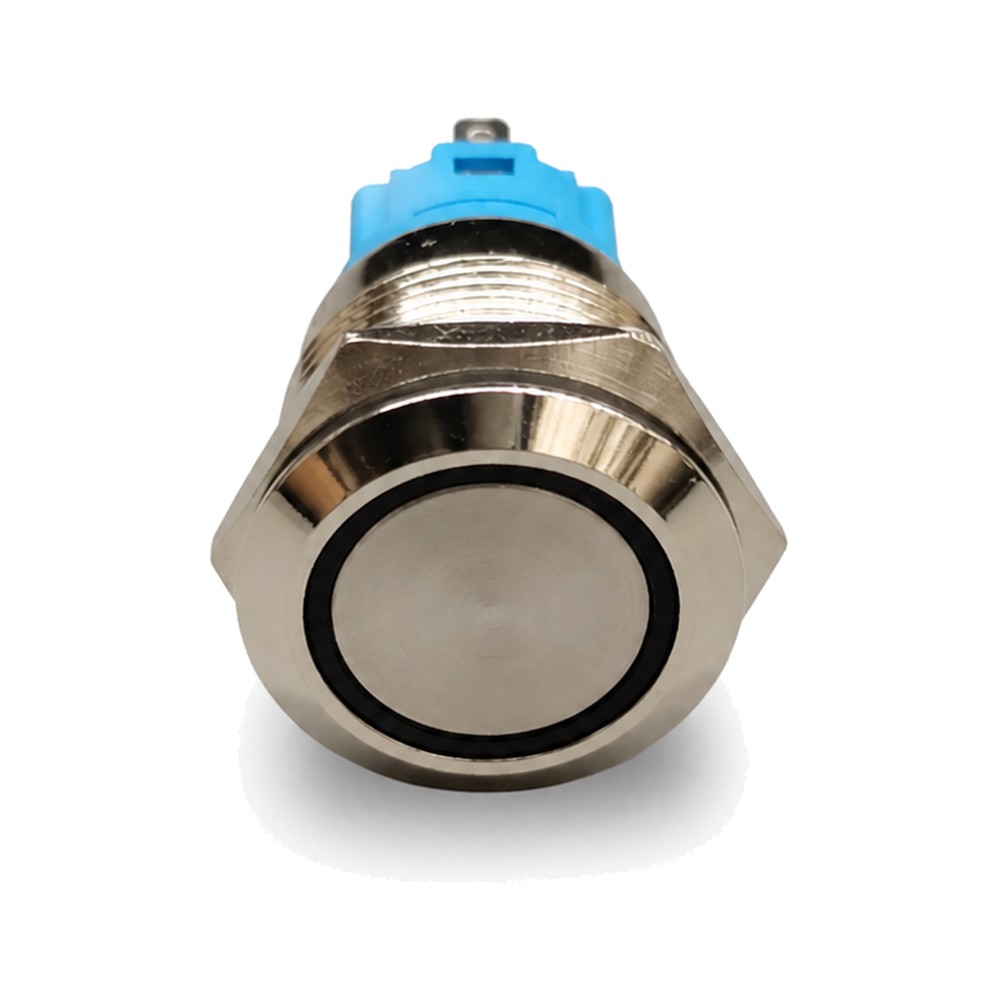

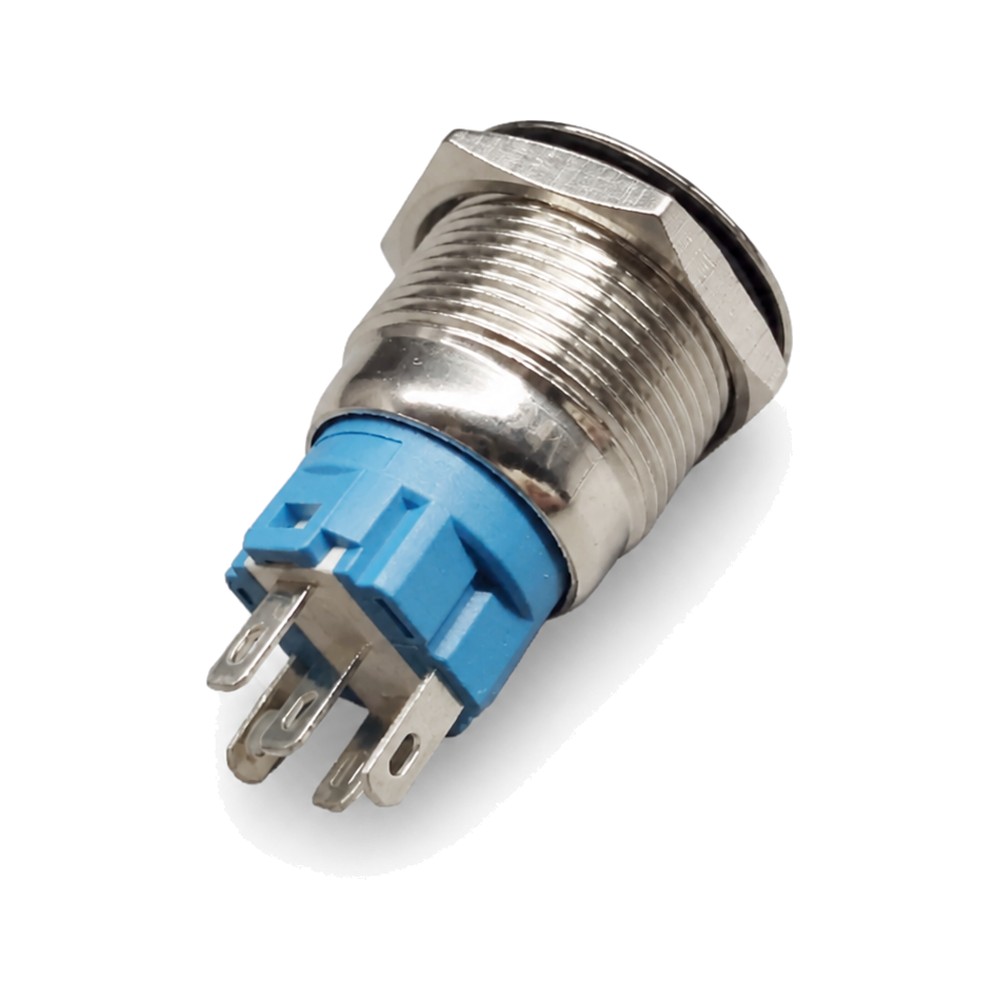

19MM 24V R SPRING RETURN Metal Push Button Switch
The JIGO 19MM 24V Red Spring Return Metal Push Button is a durable, momentary-action switch ideal for industrial control and automation systems. Featuring a 24V red LED indicator and spring return mechanism, it offers reliable performance and user-friendly operation in harsh environments.
Product Details:
Mounting Hole Size: 19mm diameter
Voltage Rating: 24V DC
Operation Type: Momentary (spring return – returns to original position after release)
Button Color: Red
Illumination: Integrated red LED (24V DC)
Material: Stainless steel or zinc alloy bezel with metal actuator
Contact Configuration: 1NO / 1NC or customizable
Ingress Protection: IP65 (dust and water resistant)
Terminal Type: Screw or quick-connect terminals
Mechanical Life: Over 1,000,000 cycles
Electrical Life: Over 50,000 cycles
Key Features:
Momentary (spring return) action for responsive control
Durable metal construction for industrial-grade reliability
Bright red LED illumination for status indication
Compact 19mm design saves panel space
IP65 rating ensures resistance to dust and water
Easy installation and wiring options
Applications:
Start/Stop controls in machinery and automation systems
Control panels and operator stations
Elevator call buttons
Security and access control systems
Industrial and commercial equipment interfaces
DIY projects and embedded systems
