22MM 220V G LATCHING Metal Push Button Switch

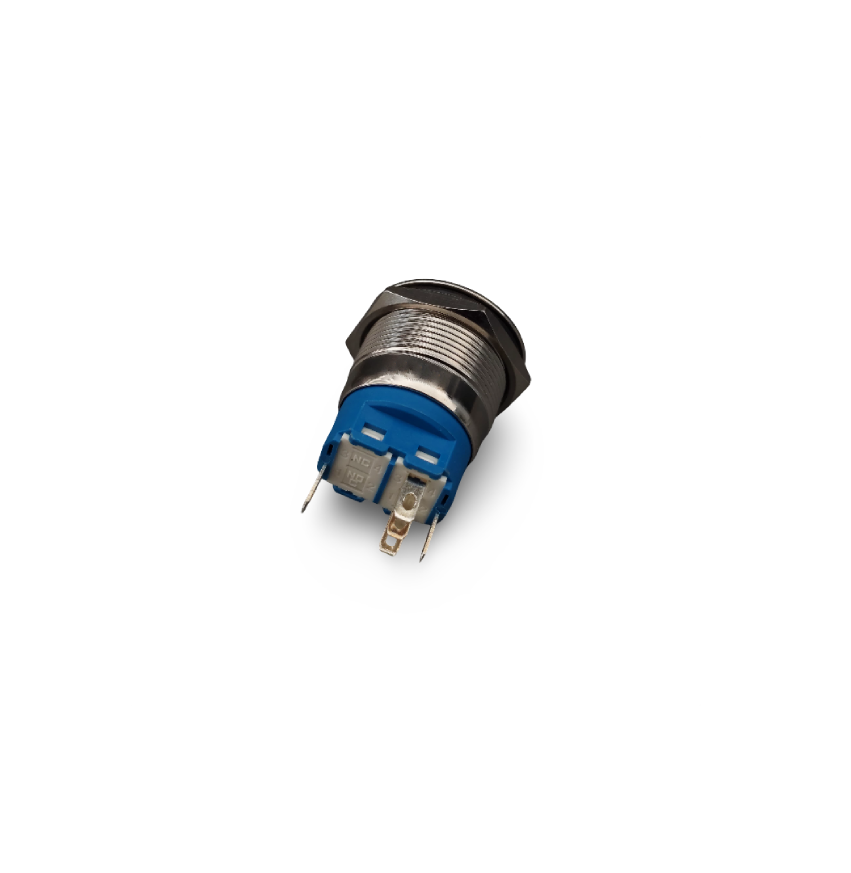

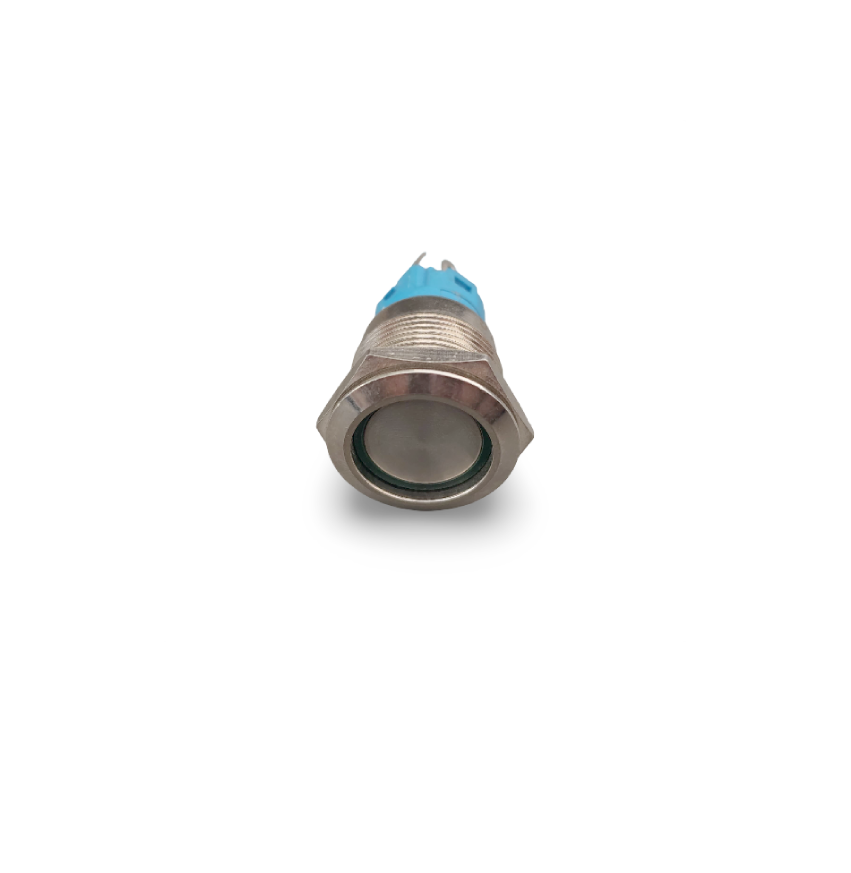

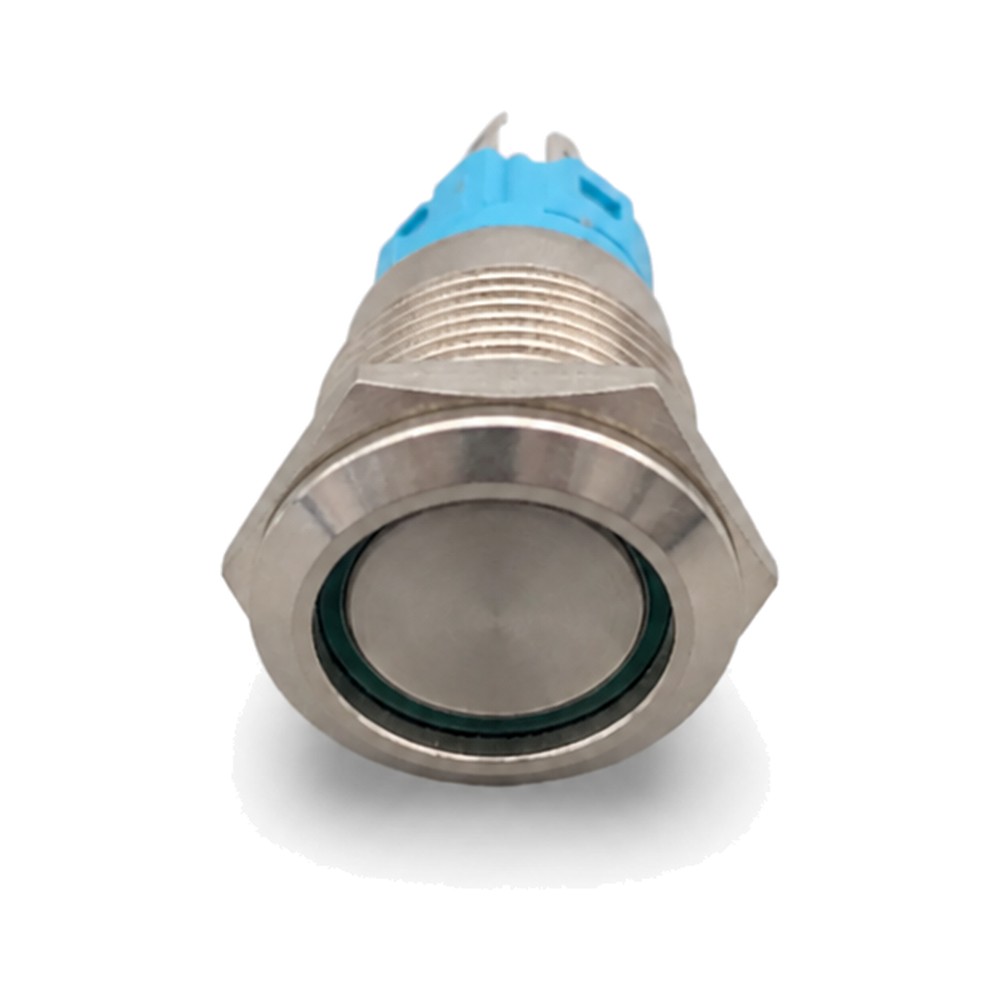

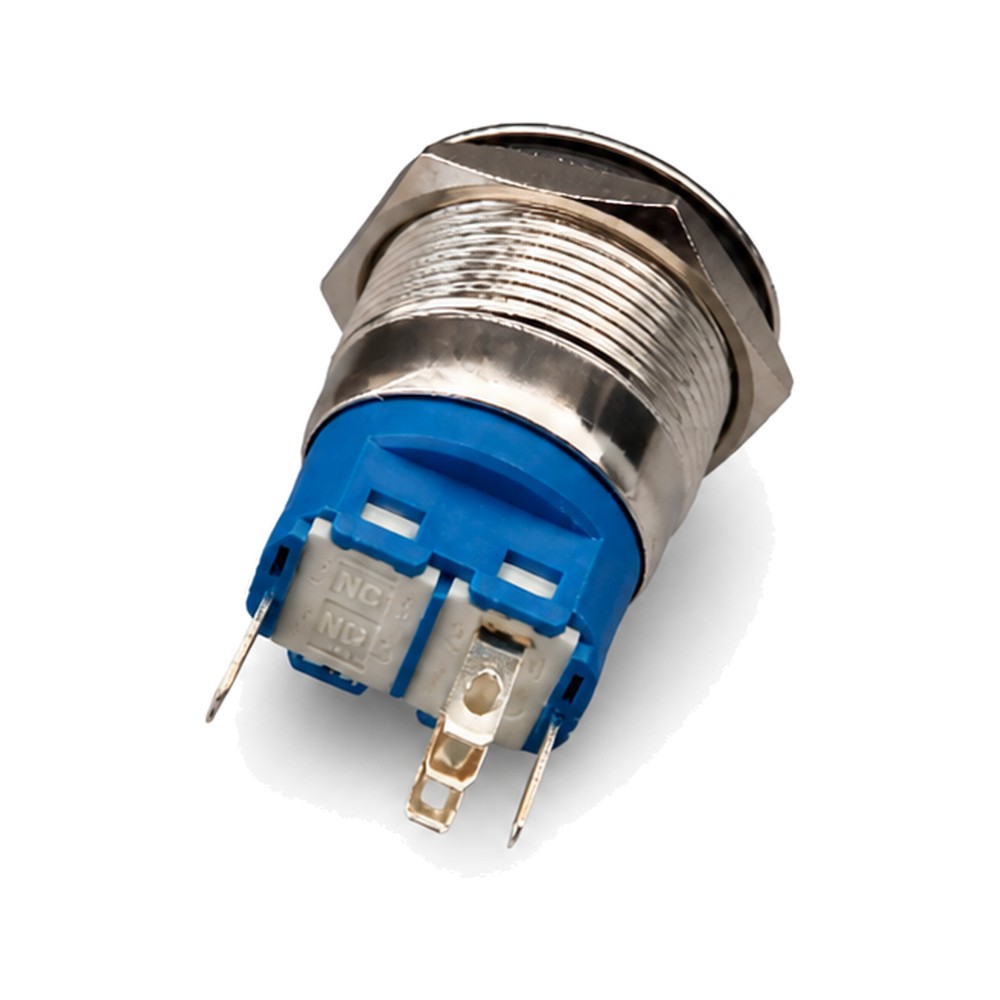

JIGO 22mm 220V Green Metal Push Button – Latching (Hold Type)
High-durability metal push button switch with green LED and latching function for ON/OFF control. Designed for industrial, commercial, and automation system use at 220V AC.
Product Details
Brand: JIGO
Mounting Hole Size: 22mm
Operating Voltage: 220V AC
LED Illumination: Green LED ring
Switch Type: Latching (Hold) – press to lock ON, press again to release
Body Material: Stainless steel or zinc alloy (anti-vandal housing)
Contact Configuration: SPST or SPDT (model-dependent)
Ingress Protection: IP65 – water and dust resistant
LED Lifespan: ≥50,000 hours
Panel Thickness Compatibility: 1–6mm
Terminal Type: Screw or solder terminals
Key Features
Latching action – perfect for ON/OFF applications
Green LED indicator – powered by 220V AC for visual feedback
Heavy-duty metal construction – vandal-resistant and corrosion-proof
IP65-rated – suitable for harsh industrial or outdoor environments
Standard 22mm mount – fits control panels, kiosks, and machines
Long-lasting and reliable – ideal for frequent use
Applications
Power switch for industrial machinery
Building and automation control panels
Lighting or motor ON/OFF control
Security access systems
Elevators, kiosks, vending machines
Marine and automotive switch panels
