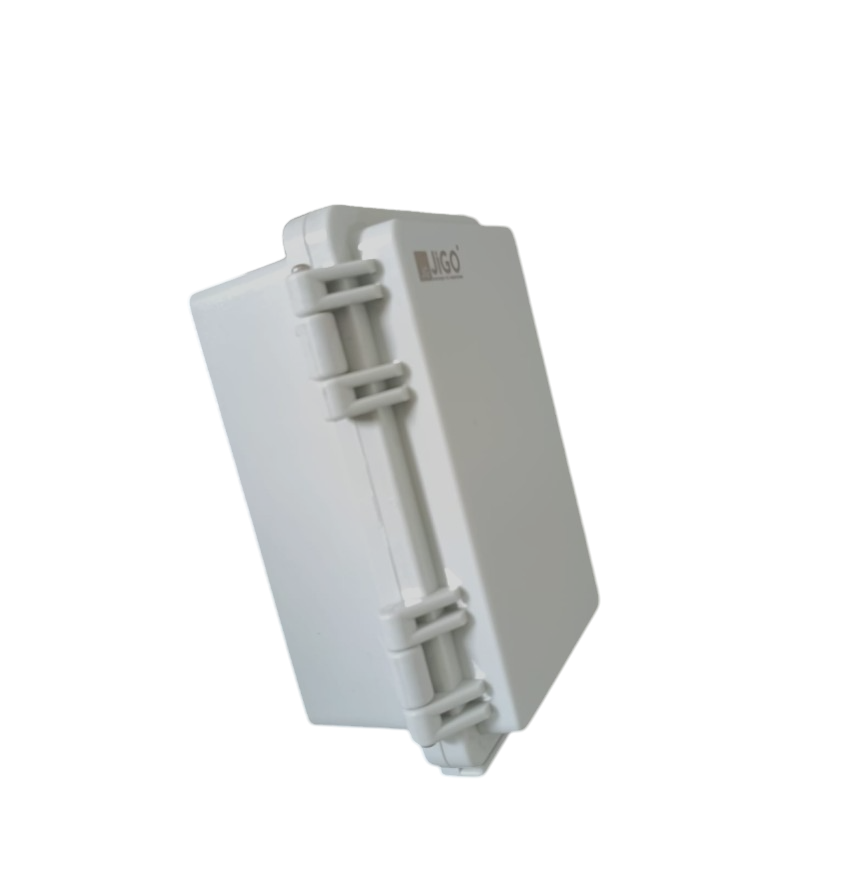

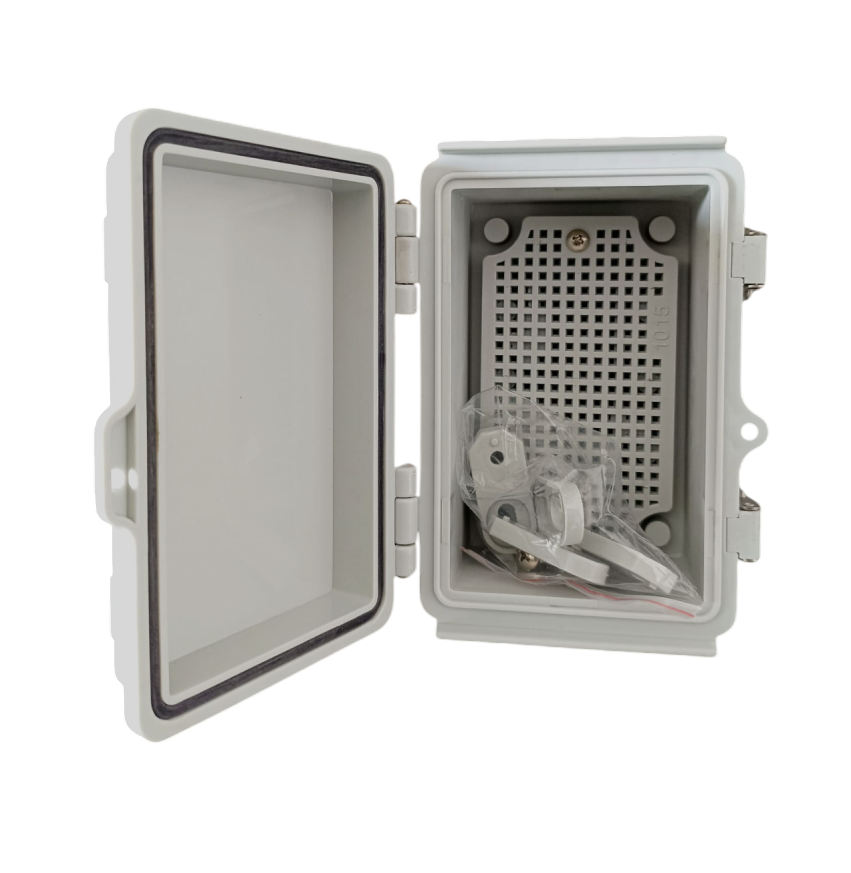

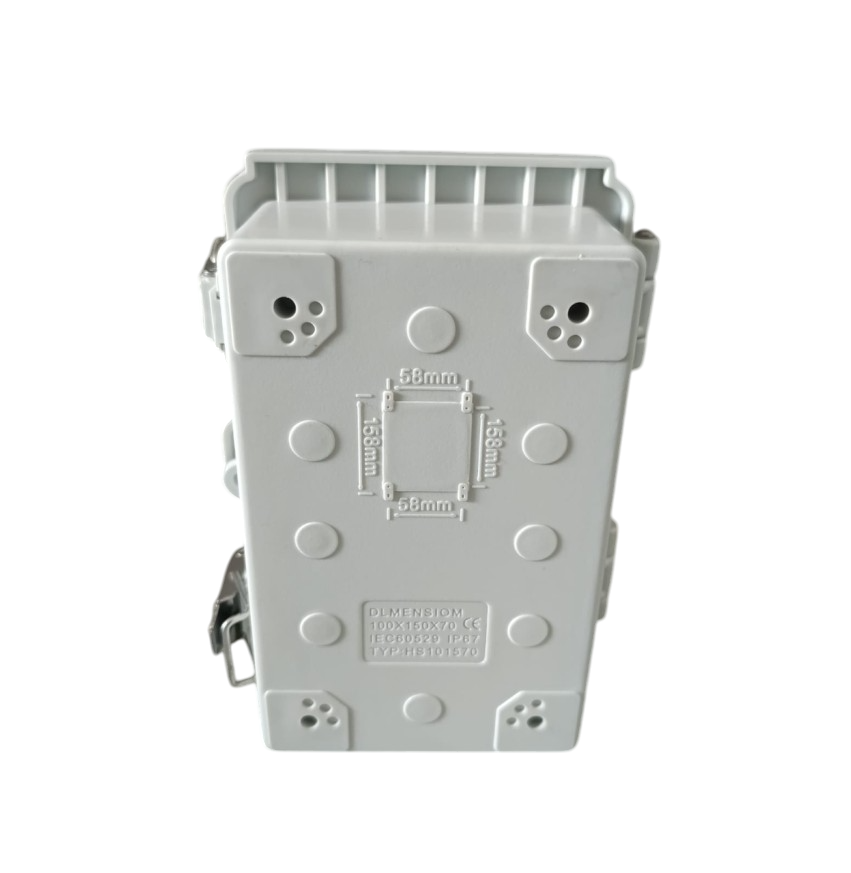

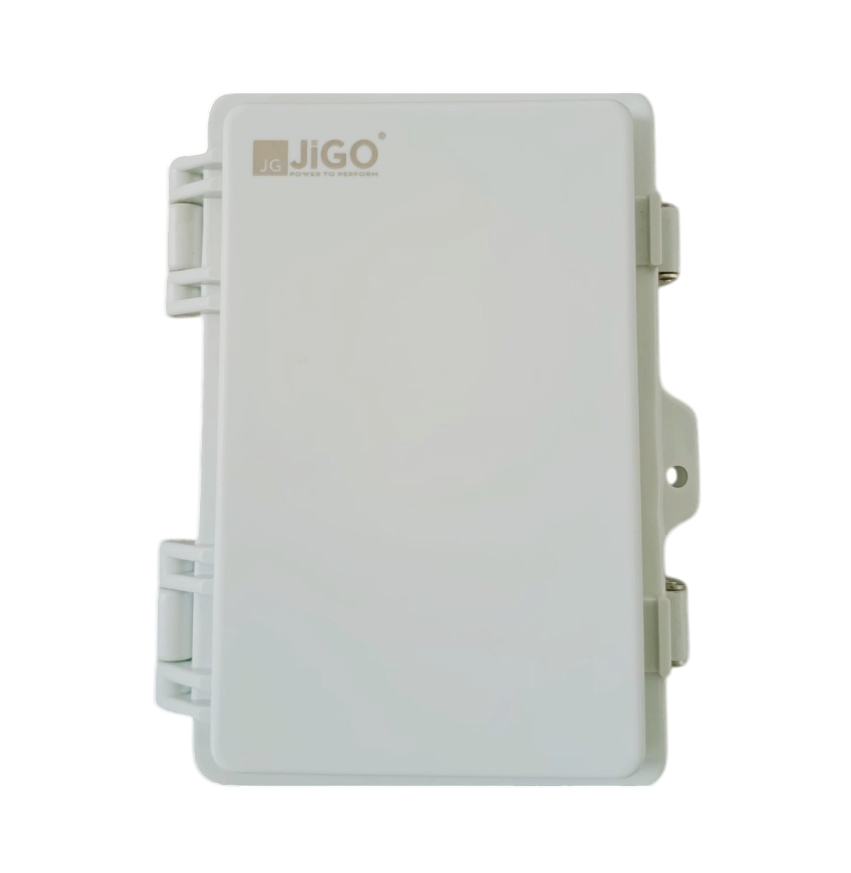

BG-150X100X70 G Waterproof Junction Box
The BG-150X100X70 G Junction Box is a compact, durable enclosure designed to protect electrical connections in small-scale or confined space installations. With a rugged design and high ingress protection rating, this model ensures reliable performance in demanding environments.
Product Details
Model: BG-150X100X70 G
External Dimensions: 150mm (L) x 100mm (W) x 70mm (H)
Material: Glass-reinforced Polycarbonate or ABS (depending on model)
Color: Grey (RAL7035 or equivalent)
Ingress Protection: IP65 / IP66 – resistant to dust and water ingress
Cover Type: Screw-fixed lid, optionally transparent
Mounting: Surface or wall mount with internal mounting bosses
Temperature Range: -25°C to +80°C (ABS), -40°C to +120°C (PC)
Standards & Approvals: CE, RoHS, optional UL
Key Features
Compact Size: Ideal for tight spaces or localized wiring needs
Durable Build: High impact resistance and UV-stabilized for outdoor use
Weatherproof Seal: Silicone or EPDM gasket ensures tight environmental protection
Flexible Cable Entry: Knockouts or custom drillable surface for glands
Easy Installation: Pre-molded bosses for DIN rail or component mounting
Fire Retardant: Material rated for electrical safety
Corrosion Resistant: Suitable for humid or chemically exposed areas
Applications
Sensor and Instrument Enclosures
Small Electrical and Signal Terminations
Control System Nodes
Telecommunications
Automation and Machinery Panels
Lighting Control Boxes
Renewable Energy Installations (e.g., small solar junctions)
Marine and Outdoor Devices
