F24-60 Crane Radio Remote Control
The F24-60 is a robust industrial radio remote control system designed for precise and safe operation of heavy machinery such as cranes, concrete pumps, and other complex equipment. Manufactured by brands like TELECRANE and LCC, this model is renowned for its dual joystick control, extensive safety features, and versatility in various industrial applications.
Product Details:

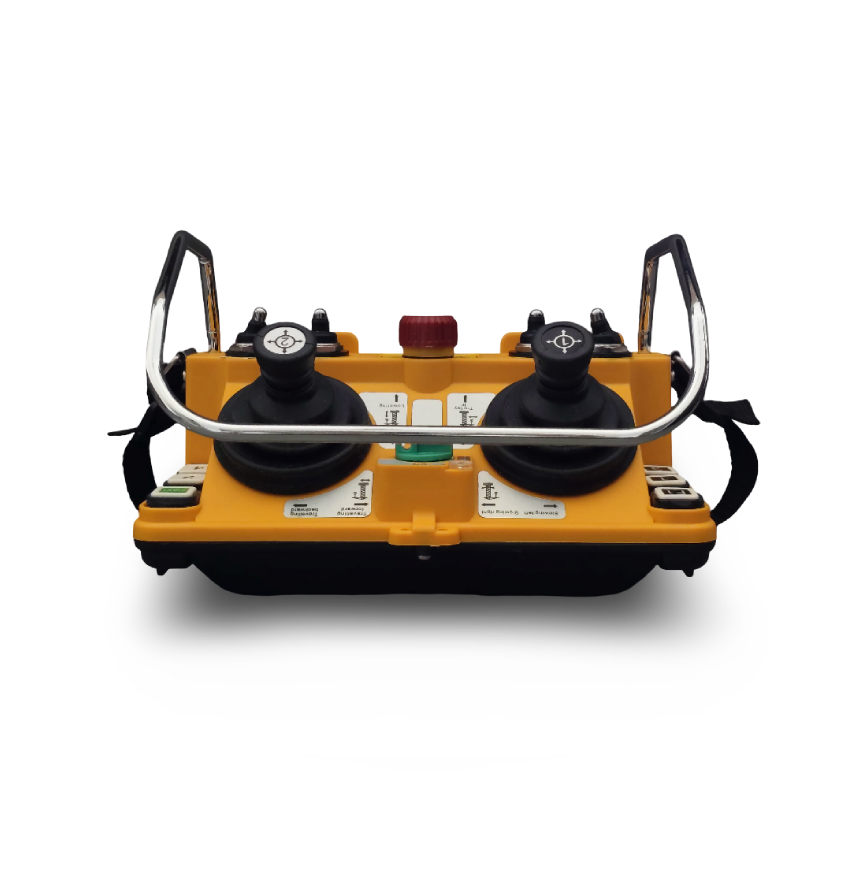

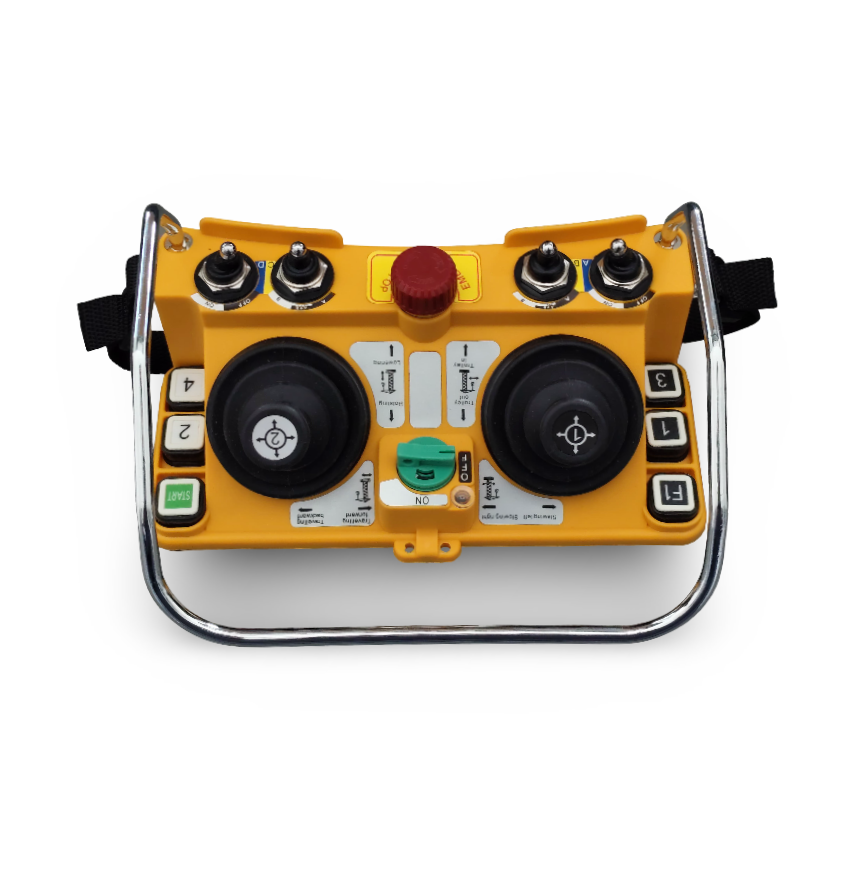

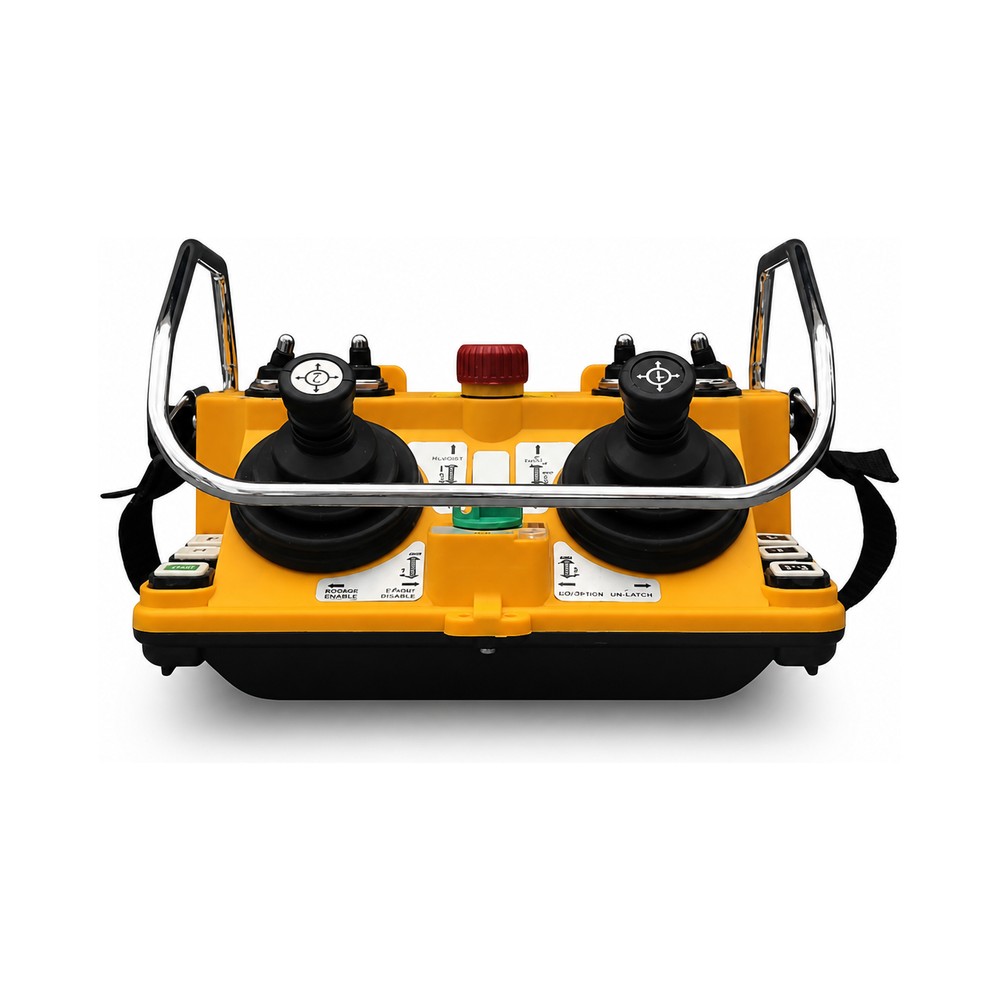

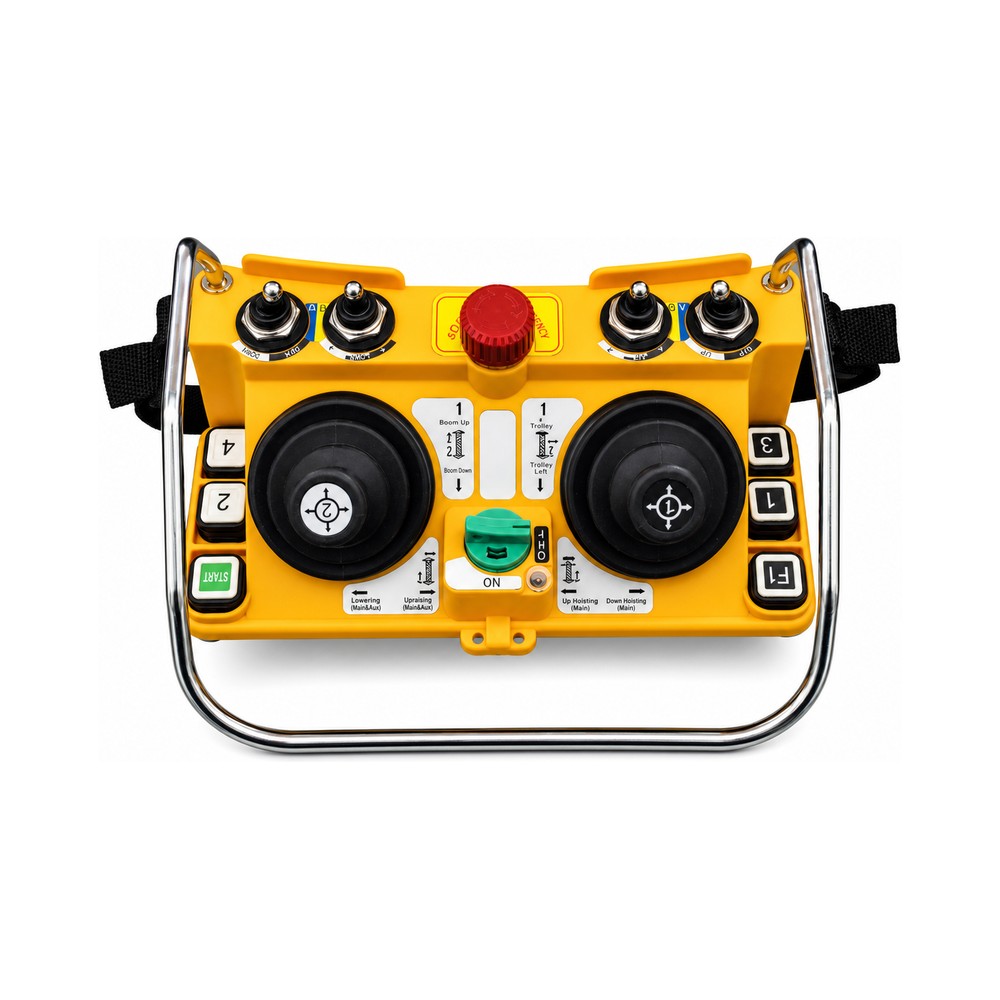

- Transmitter: Features 2 five-step joysticks with a mechanical life of 10 million times.
Buttons: Includes 6 function buttons, with 2 three-position and 2 two-position rotating switches.
Safety Features: Equipped with a battery voltage warning device and a safety switch key.
Programmable Functions: Computer software can program the button functions.
Range: Offers a typical range of 100 meters.
Operating Temperature: -30 to +80 degrees Celsius.
Decoding: Utilizes a microprocessor-based system.
Key Features
Dual 5-Step Joysticks: Each joystick offers 5-speed control with 8 directional movements, providing precise handling for complex operations.
Multiple Control Buttons: Includes 6 single-speed buttons, 4 toggle switches (2-position and 3-position), 1 emergency stop button, and 1 rotary key switch.
Programmable Functions: Buttons and switches can be programmed via computer interface to customize operations.
Relay Outputs: Supports up to 40 control contacts, allowing for extensive control over machinery functions.
Battery Voltage Warning: Features a low battery indicator and automatic power cut-off to prevent malfunction.
Enhanced Security: Incorporates Hamming code and CRC technology for error detection and prevention of unauthorized access.
Takeover and Release Function: Enables multiple operators to safely take turns controlling the machinery.
Acceleration Delay Control: Smoothens operations, especially for multi-speed cranes.
Applications
The F24-60 is ideal for controlling
Overhead and tower cranes
Concrete pumps
Hoists and winches
Loading/unloading machinery
Hydraulic and pneumatic equipment
Fire-fighting equipment
Railway, bridge, and tunnel construction machinery
Steel structure processing and shipbuilding equipment
