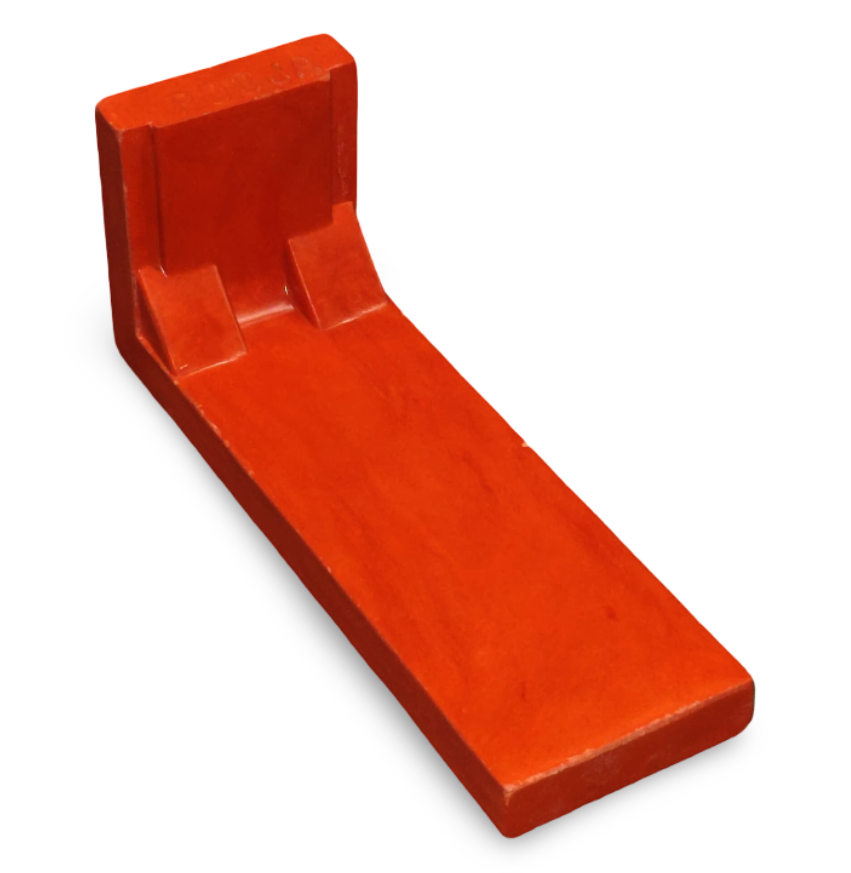

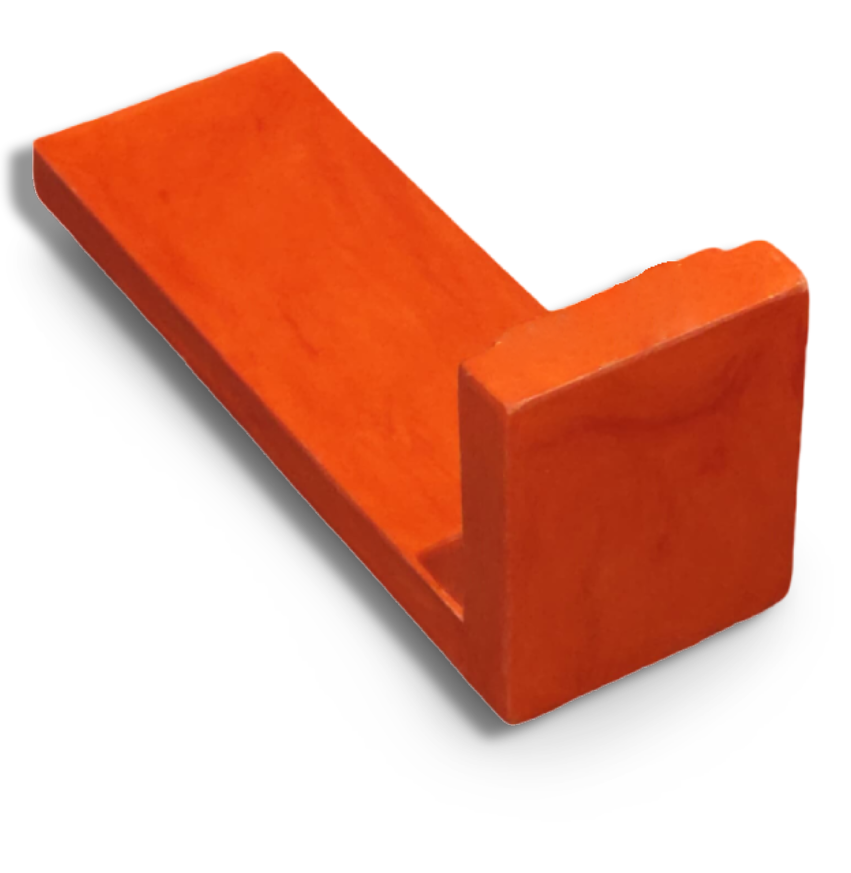

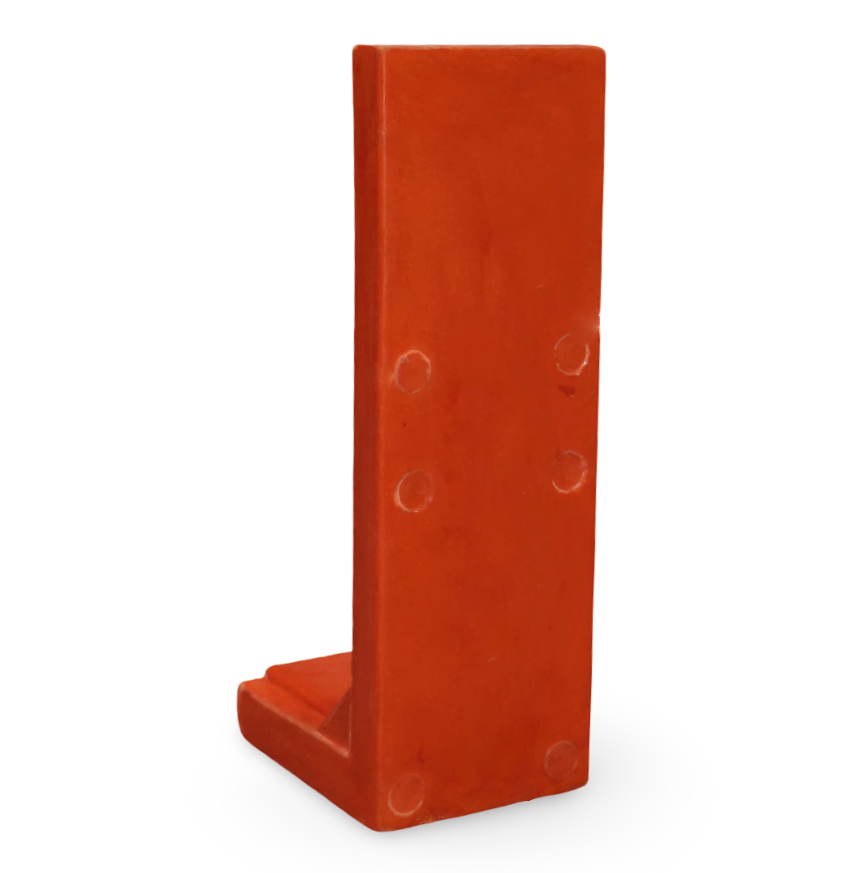

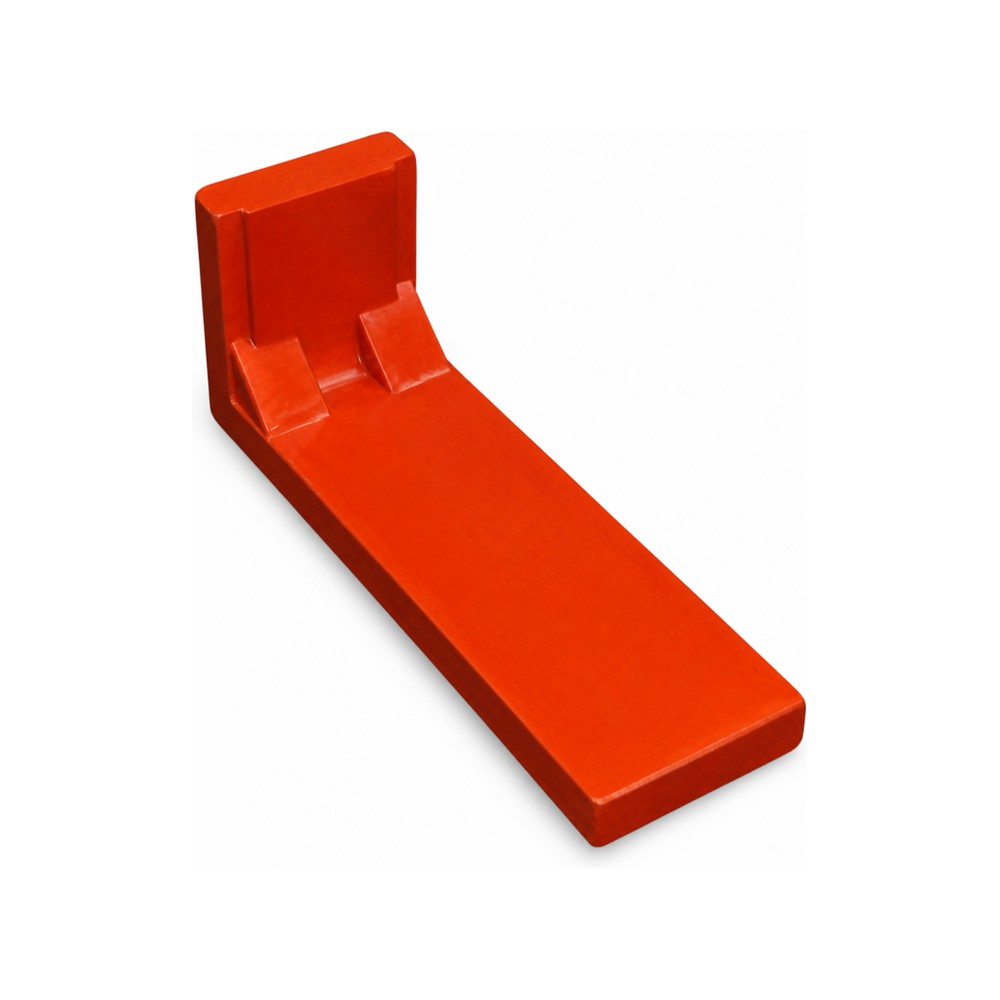

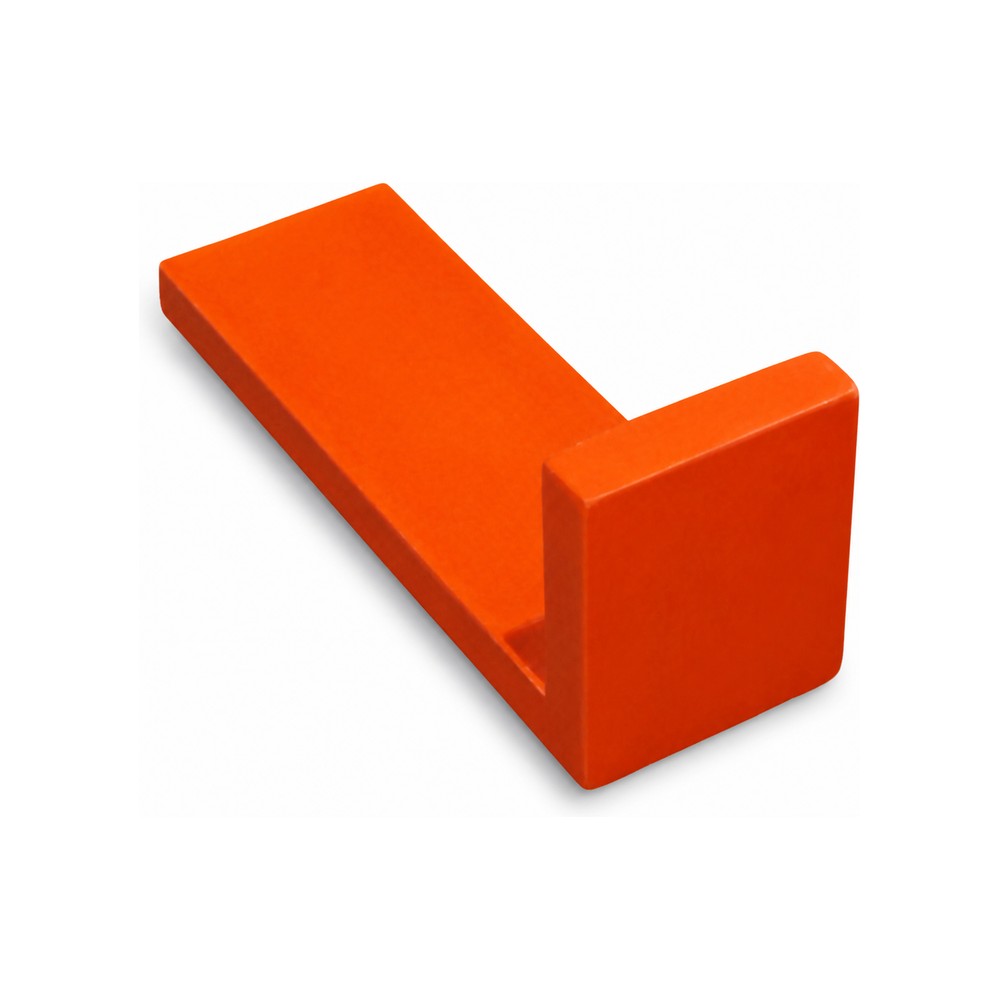

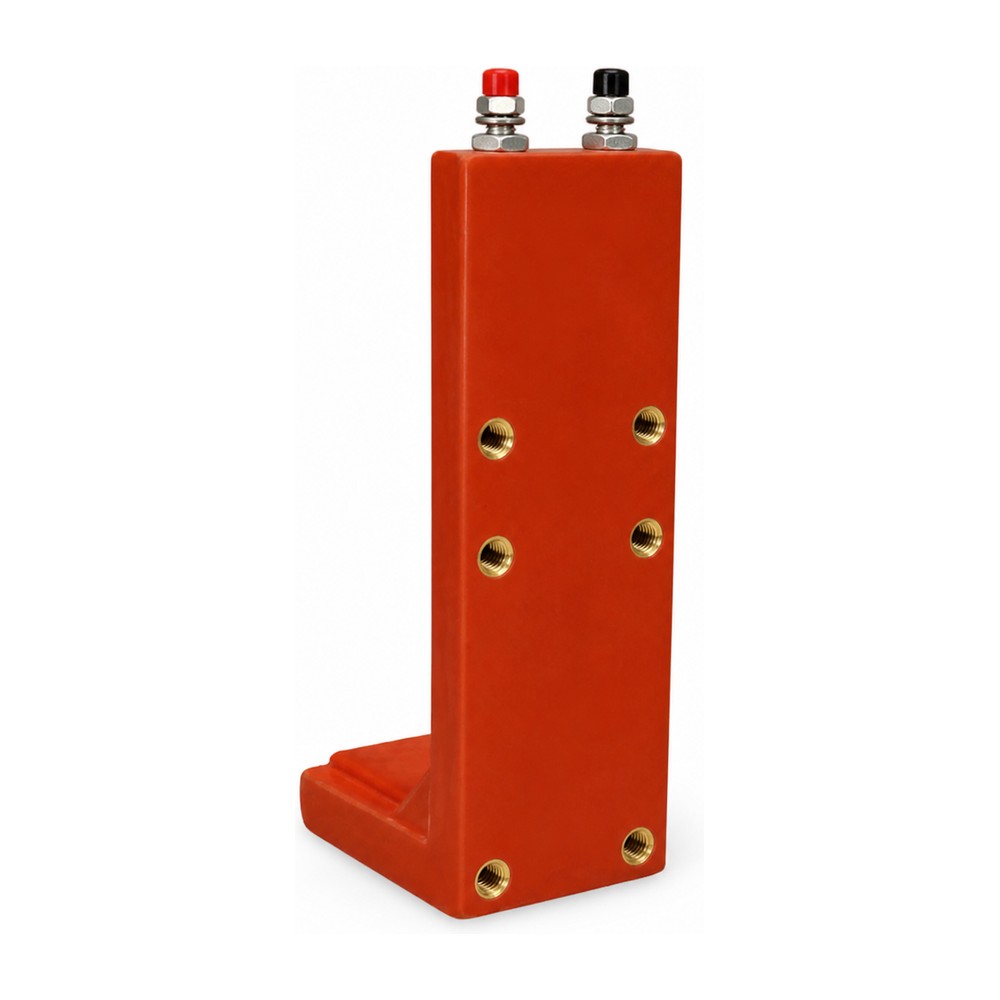

INSULATOR L-125 MM
L-125 mm Insulator is a high-strength insulating support, designed to separate and secure busbars in electrical panels, ensuring safe and efficient power distribution.
Product Details
Model: L-125
Height: 125 mm
Material: DMC (Dough Molding Compound) or Epoxy Resin
Threaded Insert: Brass (typically M8 or M10)
Diameter: ~50–65 mm (varies with design)
Rated Voltage: 660V or more
Temperature Resistance: -40°C to +130°C
Standard Color: Red or Brown
Mounting Type: Stud type / base flange
Key Features
Excellent dielectric strength and insulation
High mechanical load-bearing capacity
Brass inserts for firm mounting and conductivity isolation
Flame-retardant, UL94-V0 compliant
Moisture, heat, and corrosion-resistant
Long service life with low maintenance
Applications
LT & HT panel busbar support
MCC, control & relay panels
Power distribution units
Industrial switchgear
Capacitor banks, transformers, and renewable systems
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
