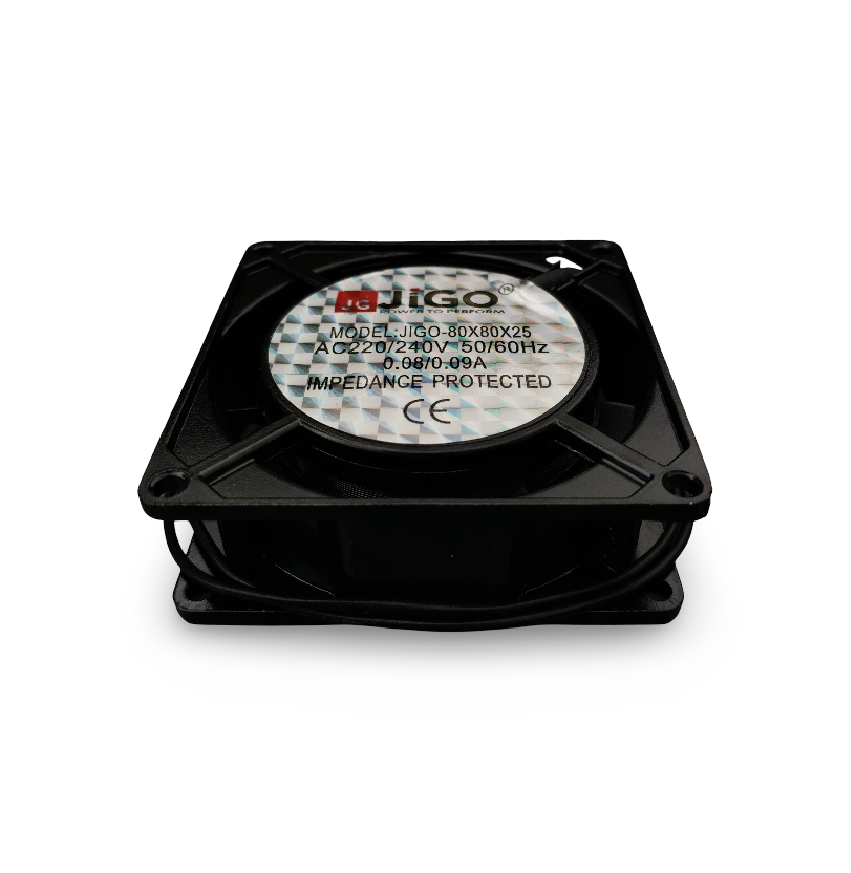

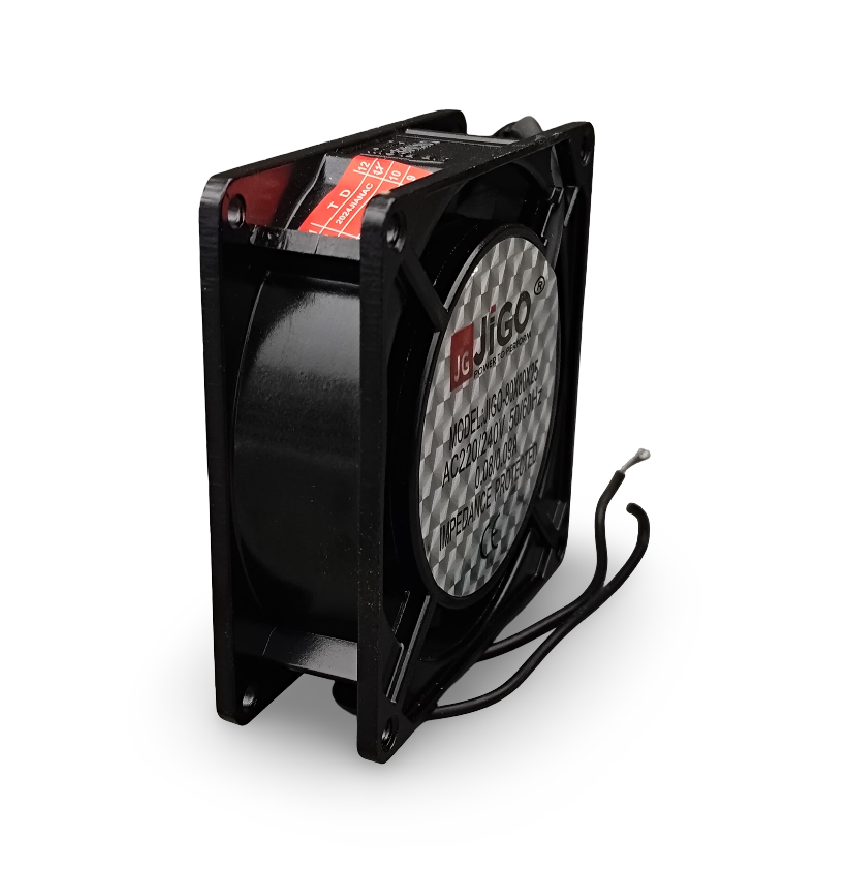

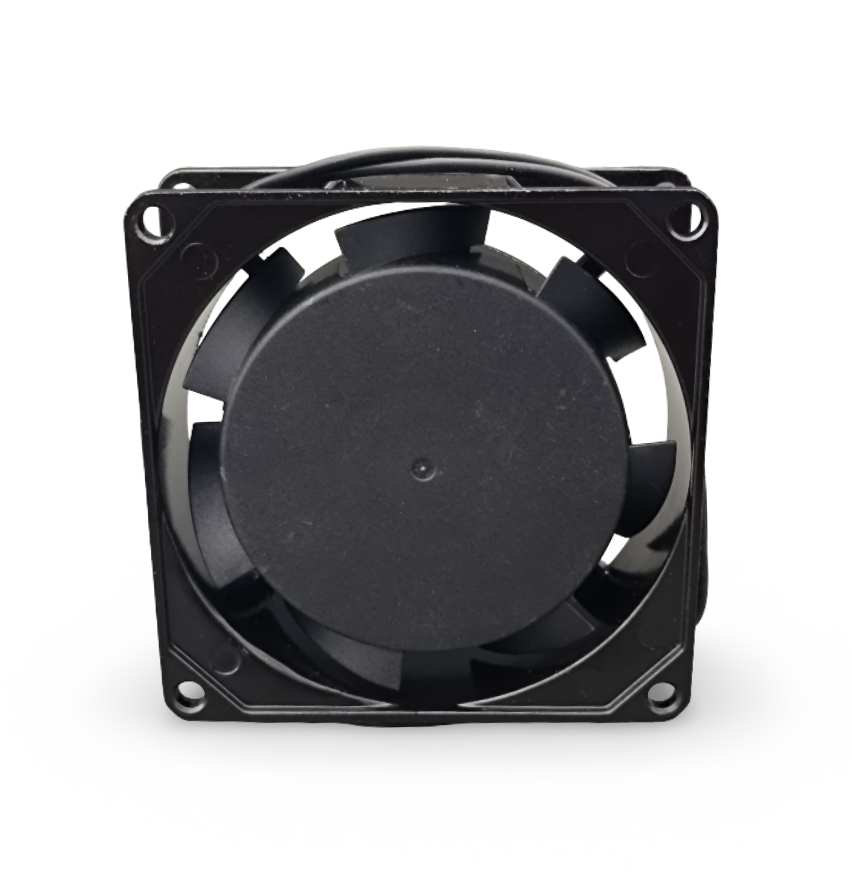

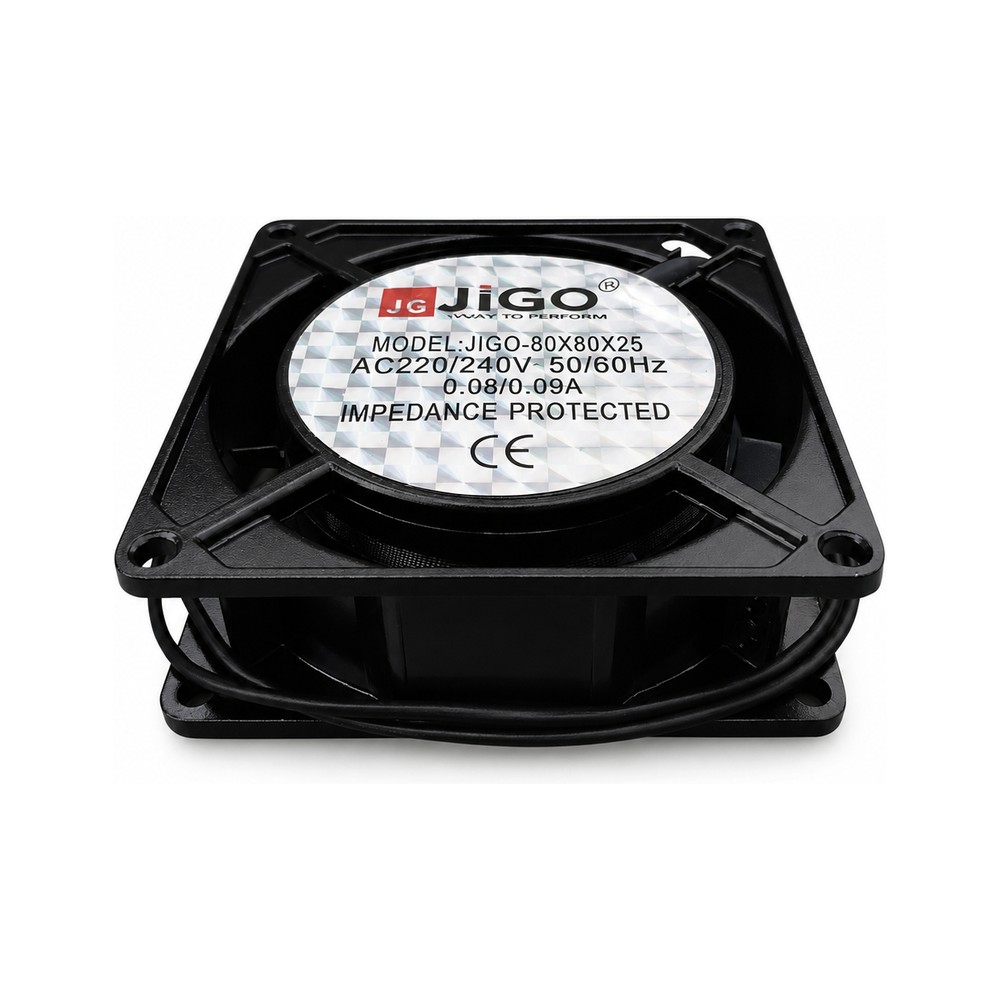

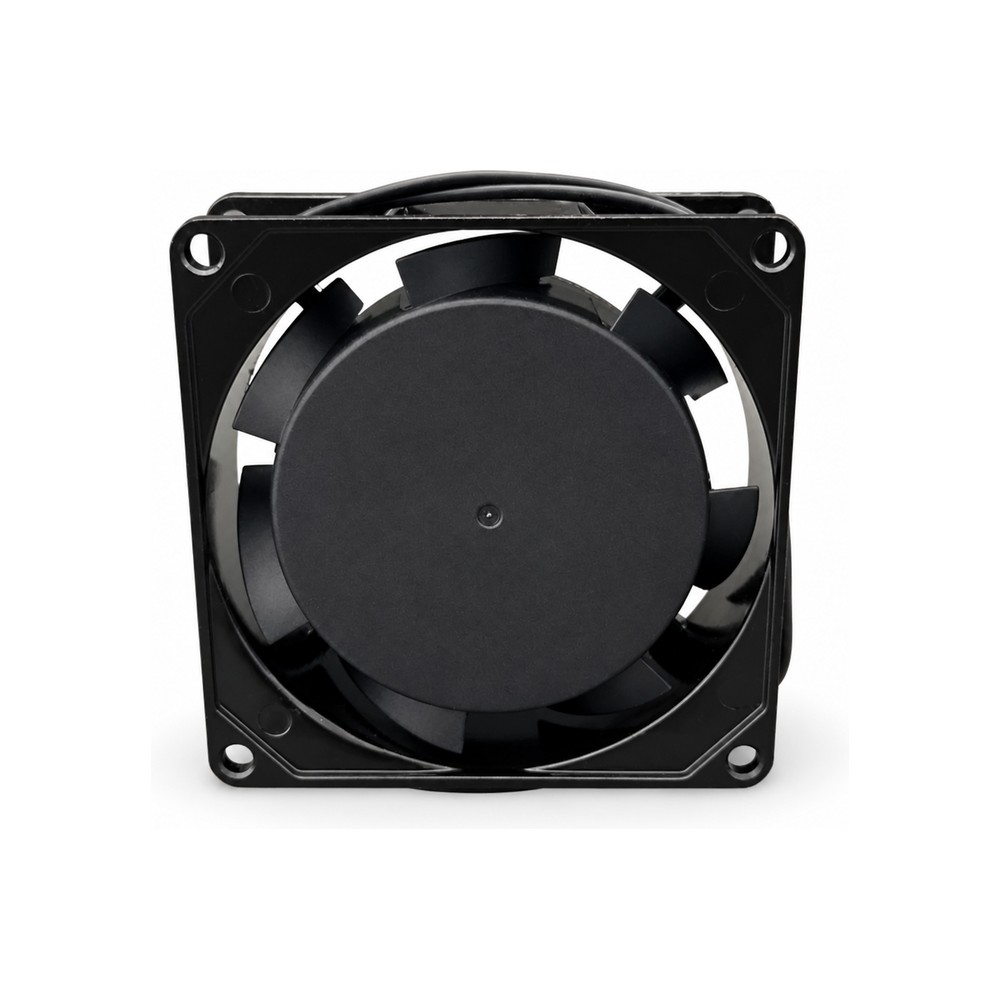

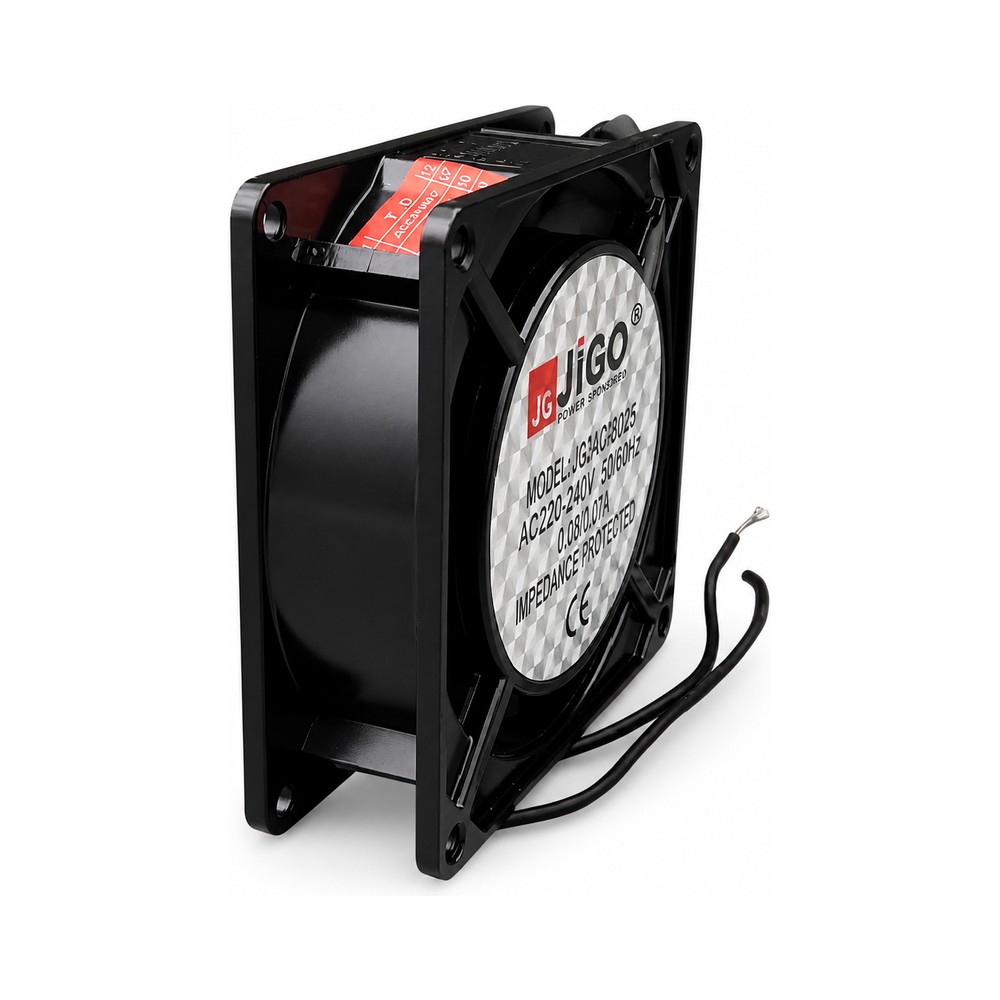

FAN JG-AC-8025 ( 3 INCH)
The JIGO JG-AC-8025 is a compact, high-speed 3-inch AC panel cooling fan ideal for cooling smaller electrical enclosures and devices. It offers stable performance, long service life, and quiet operation, making it suitable for both industrial and commercial ventilation applications.
Product Details:
Model: JG-AC-8025
Dimensions: 80 × 80 × 25 mm (3 inch)
Frame Shape: Square
Operating Voltage: AC 220–240V, 50/60 Hz
Power Consumption: Approx. 12–18 W
Speed: ~2500–3000 RPM
Airflow: 30–45 CFM (varies by version)
Bearing Type: Sleeve or Ball Bearing
Frame Material: Die-cast aluminum
Blade Material: PBT plastic (flame-retardant)
Motor Protection: Impedance protected
Temperature Range: –10°C to +60°C
Key Features:
Compact 3-inch design for space-limited enclosures
Good airflow performance for targeted cooling
Low noise and low power consumption
Durable, heat-resistant aluminum housing
Long-life operation with minimal maintenance
Easy installation with standard mounting holes
Applications:
Small electrical and control boxes
Compact power supply units
Home or office electronic cooling
Access control panels
UPS systems and battery cabinets
Telecom and network devices
