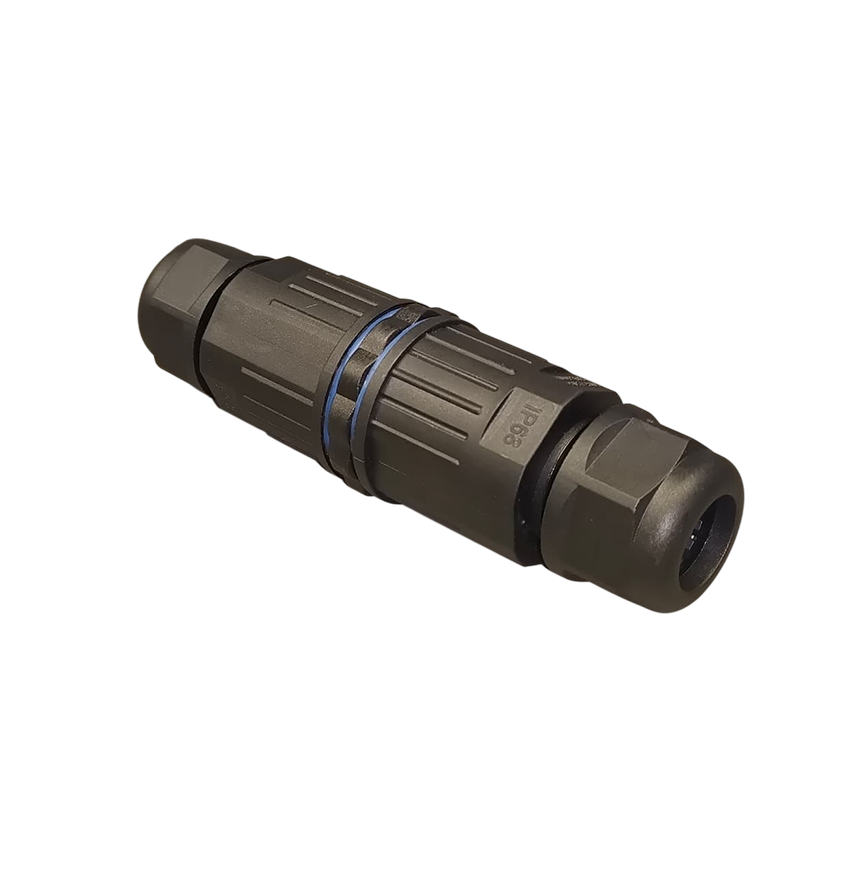

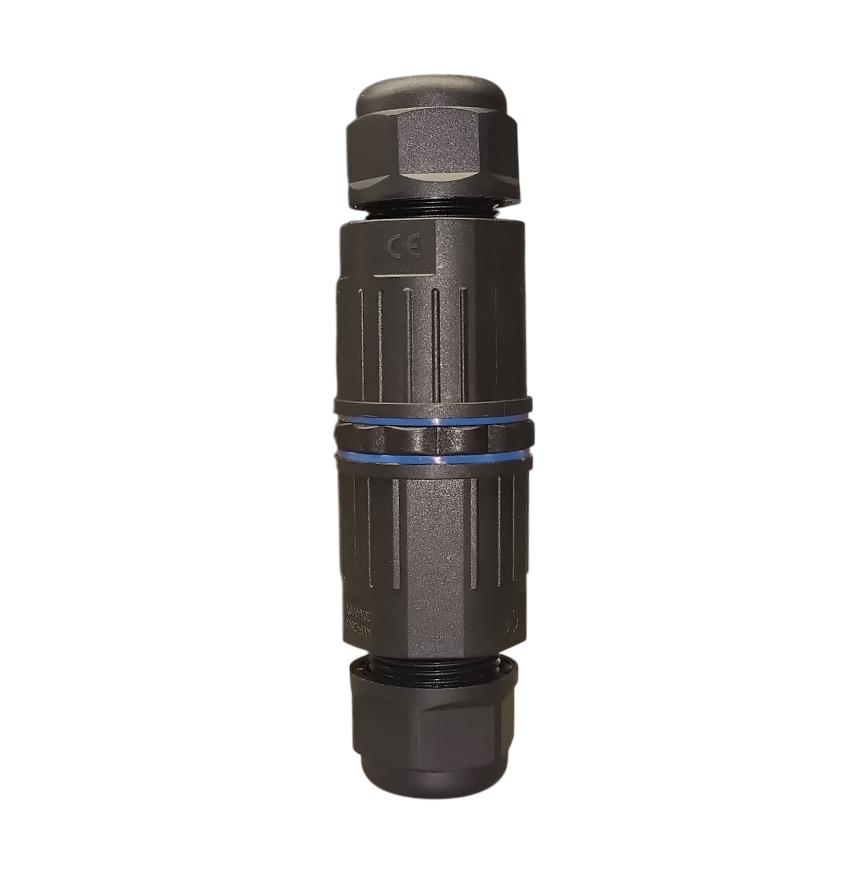

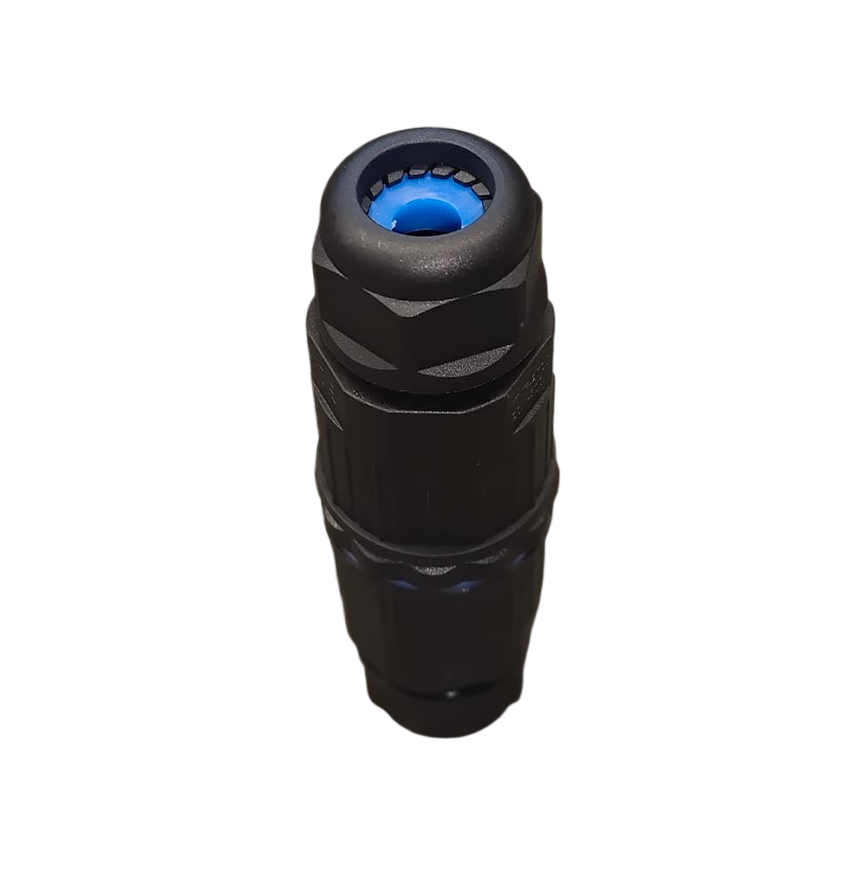

JG-F-2505-5P Waterproof Cable Connector
JG-F-2505-5P Waterproof Connector is a durable 5-pin electrical connector designed for secure power and signal transmission in harsh environments. It provides excellent protection against water, dust, and environmental damage, ensuring reliable performance in outdoor and industrial applications.
Product Details
The JG-F-2505-5P is a 5-pole (5P) waterproof connector engineered for applications requiring safe and stable electrical connections under wet, dusty, or rugged conditions. These connectors typically feature a sealed locking mechanism and high-quality insulating materials to prevent ingress of moisture and contaminants.
Waterproof connectors generally carry IP67 or IP68 protection ratings, meaning they are dust-tight and can withstand water immersion for a certain period without failure.
The 5-pin configuration is commonly used for three-phase power (L1, L2, L3 + Neutral + Earth) or multi-signal connections, depending on the application.
Typical Specifications (approx.):
- Model: JG-F-2505-5P
- Type: 5-Pin Waterproof Connector
- Rated Voltage: 250V – 450V
- Rated Current: 10A – 32A (depending on design)
- Protection Rating: IP67 / IP68
- Contact Material: Copper alloy (tin/nickel plated)
- Insulation Material: PA66 / PBT / thermoplastic
- Cable Range: 0.5 – 2.5 mm² (typical)
- Operating Temperature: -40°C to +105°C
Key Features
- 5-Pin Configuration: Supports multi-line power or signal connections
- Waterproof & Dustproof: IP67/IP68 protection for harsh environments
- Secure Locking Mechanism: Prevents accidental disconnection and ensures tight sealing
- High Durability: مقا Resistant to shock, vibration, and corrosion
- Reliable Conductivity: Low resistance contacts for stable performance
- Easy Installation: Plug-and-play or screw/lock type connection
- Long Service Life: Designed for continuous industrial and outdoor use
Applications
- Outdoor electrical installations
- Industrial machinery and equipment
- LED lighting and street lighting systems
- Marine and automotive applications
- Construction sites and temporary power setups
- Renewable energy systems (solar/wind connections)
