JG-M2003-3P
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

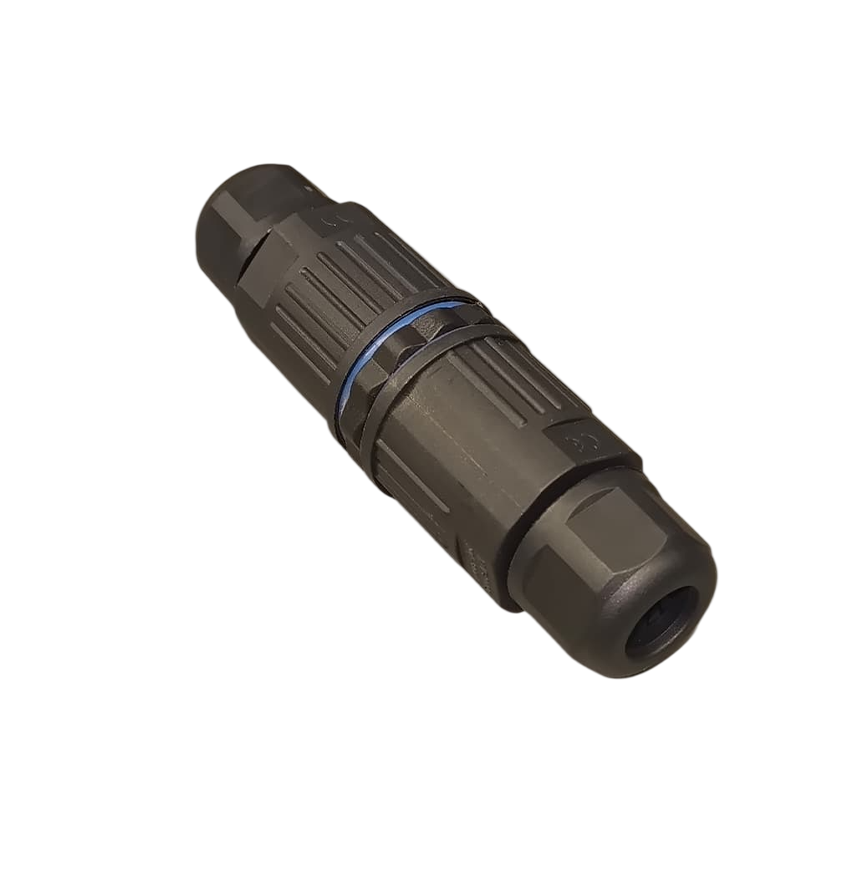

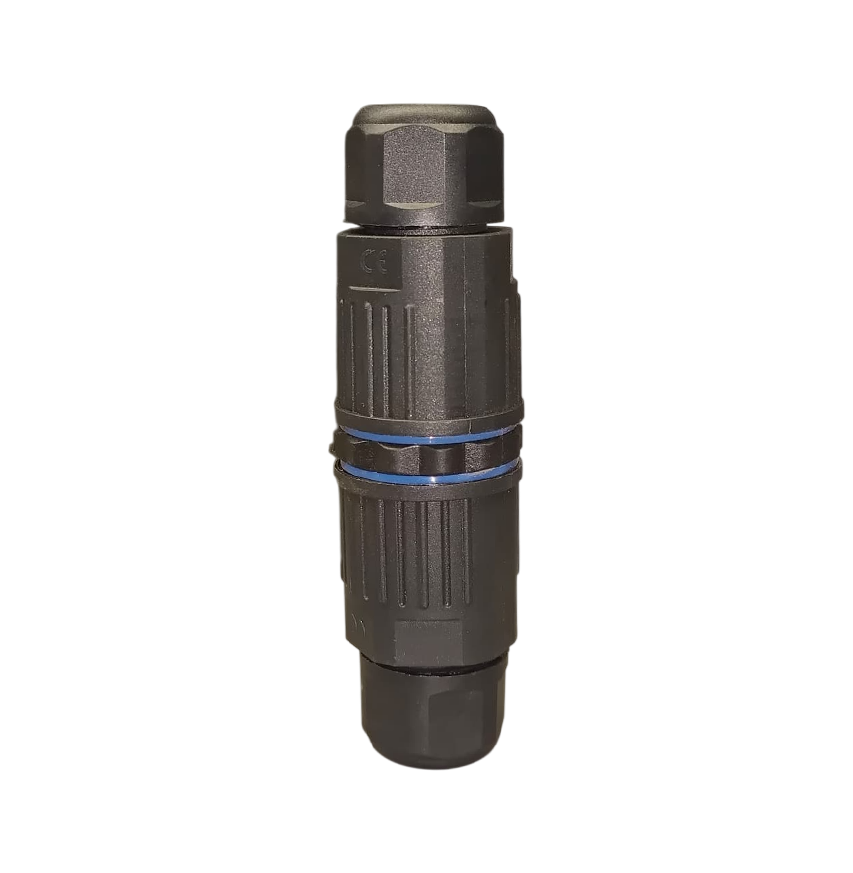

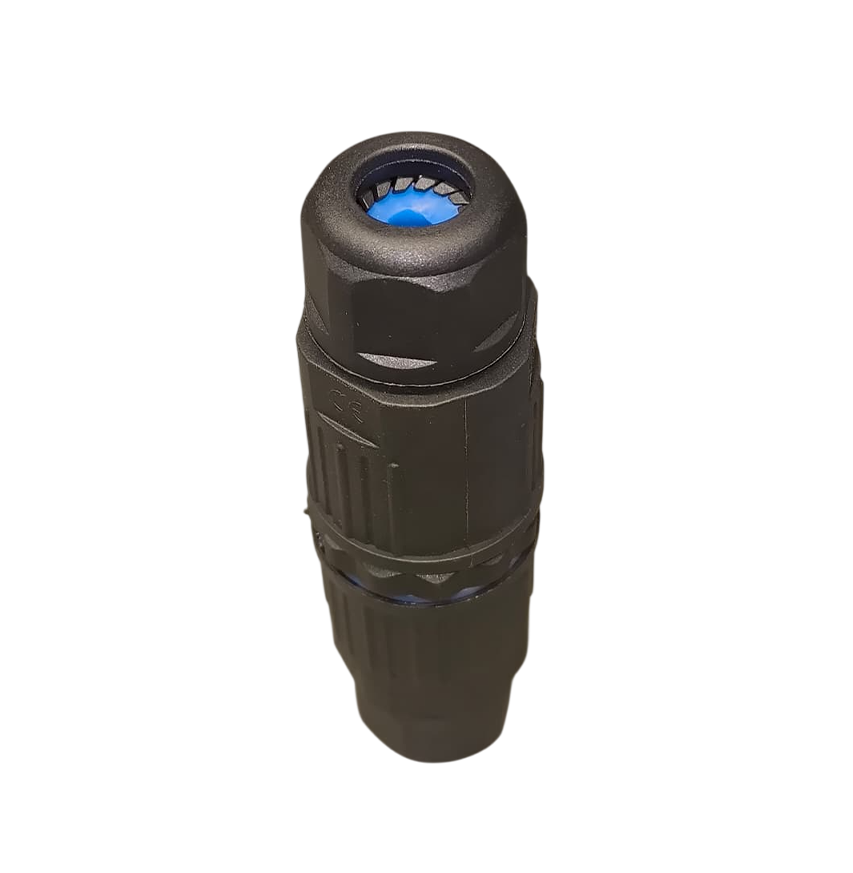

JG‑M2003‑3P Waterproof Connector is a rugged 3‑pin sealed electrical connector designed for reliable transmission of power and signals in wet, dusty, and outdoor conditions. Its waterproof construction makes it suitable for industrial, automotive, and outdoor electrical systems.
Product Details
The JG‑M2003‑3P is a 3‑pole (3P) waterproof connector engineered to maintain continuous electrical connections even in harsh environments by preventing water and dust ingress. These connectors typically meet IP67 or IP68 ratings, ensuring full protection against particles and temporary water immersion.
Waterproof connectors like this use sealed housings, rubber gaskets, and threaded or locking couplings to secure a tight connection and safeguard internal contacts. They are commonly constructed from high‑strength plastics and corrosion‑resistant metal contacts.
Typical Specifications (approx.):
- Model: JG‑M2003‑3P
- Type: 3‑Pin Waterproof Connector
- Rated Voltage: ~250 V – 600 V
- Rated Current: ~10 A – 20 A (varies by size)
- Protection Rating: IP67 / IP68 (waterproof & dustproof)
- Contact Material: Copper alloy (tin/nickel plated)
- Insulation Material: PA66 / Nylon (flame‑retardant)
- Cable Diameter Range: ~5–9 mm
- Sealing: Silicone or rubber gaskets
- Operating Temperature: -40 °C to +105 °C
Key Features
- 3‑Pin Configuration: Suitable for power and signal line connections
- Waterproof & Dustproof: IP67/IP68 sealed design for outdoor use
- Robust Construction: Durable insulating housing with corrosion‑resistant contacts
- Secure Locking: Threaded or clip‑type coupling ensures strong joint
- Stable Performance: Reliable conductivity even in wet, dusty, or corrosive environments
- Wide Temperature Range: Performs reliably across a broad climate range
- Easy Installation: Plug‑and‑play design with waterproof seals
Applications
- Outdoor lighting and LED systems
- Industrial control and automation panels
- Marine and automotive electrical connections
- Solar and renewable energy installations
- Power distribution and outdoor devices
- Sensors and instrumentation in wet environments
- Construction site power systems
