JG-M25-R3
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

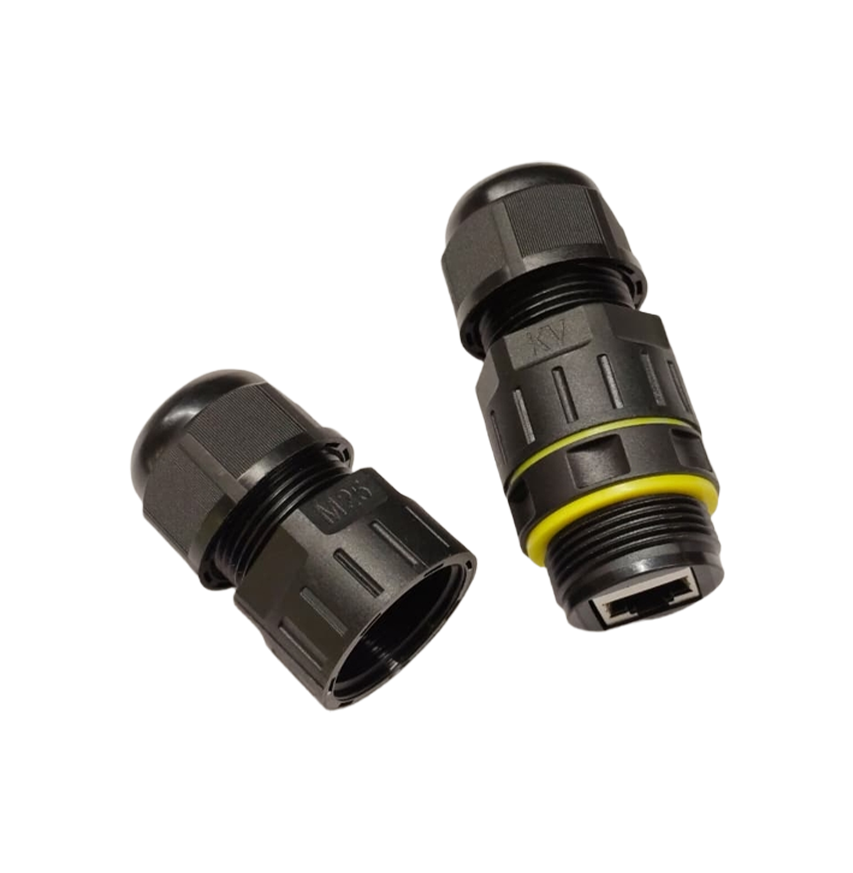

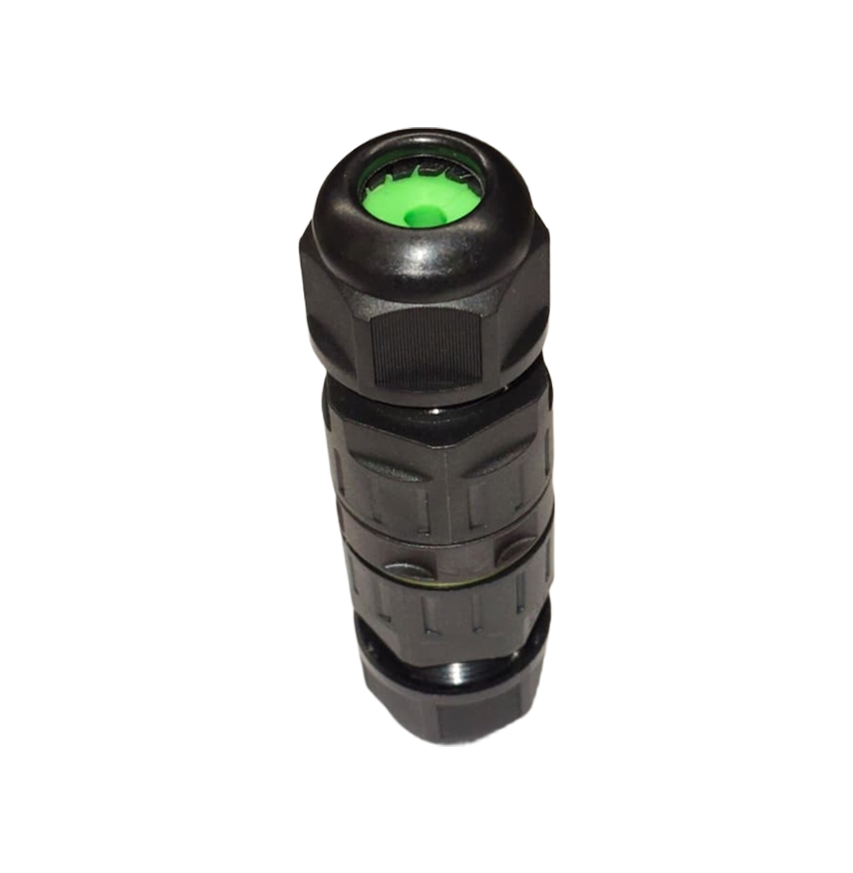

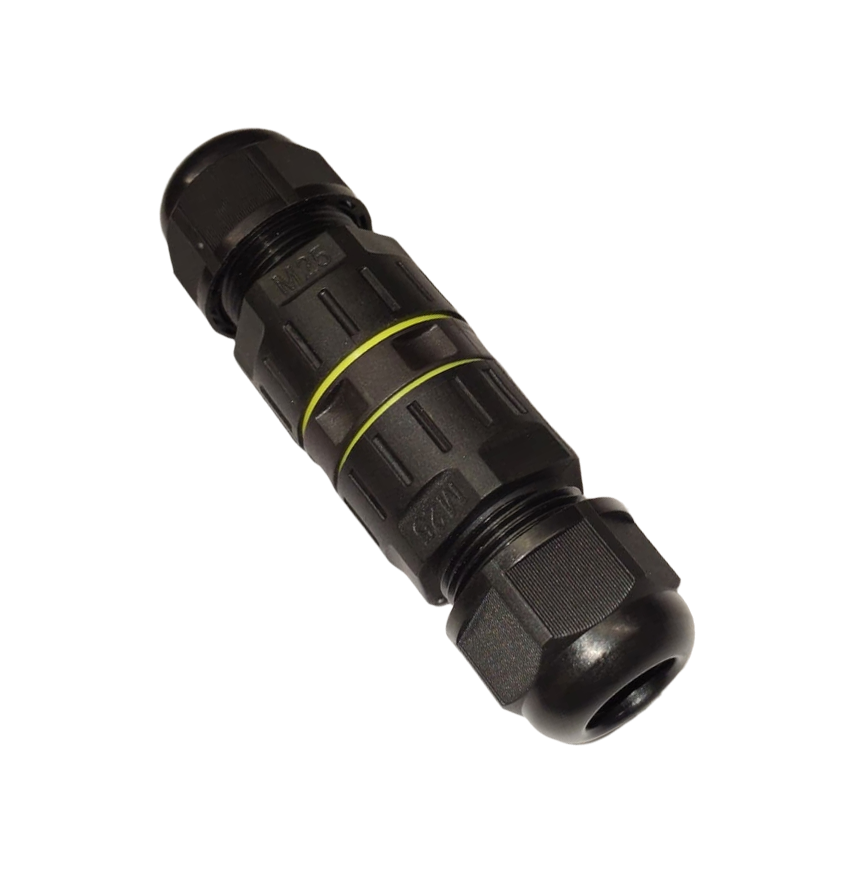

JG‑M25‑R3 Waterproof Connector is a rugged, compact 3‑pin circular electrical connector designed for reliable power and signal connections in harsh environments. With an M25 threaded housing and IP‑rated sealing, it provides excellent protection against water, dust, and contaminants, making it ideal for outdoor and industrial applications.
Product Details
The JG‑M25‑R3 is a 3‑pole (3P) waterproof circular connector featuring an M25 thread size and robust construction. It is engineered for environments where moisture, dust, vibration, and temperature variations are present.
Waterproof connectors with an M25 form factor commonly meet IP67 or higher ratings, meaning they are fully dust‑tight and can withstand temporary immersion in water without performance loss. These connectors use threaded coupling with sealing gaskets to ensure tight, secure connections.
Typical 3‑pin waterproof connectors are used for power feed, signal transmission, or sensor connections where environmental protection is critical.
Typical Specifications (approx.):
- Model: JG‑M25‑R3
- Type: 3‑Pin Waterproof Circular Connector
- Thread Size: M25
- Rated Voltage: 250V – 600V
- Rated Current: 10A – 20A (varies by design)
- Protection Rating: IP67 / IP68
- Cable Diameter Range: ~5mm – 8mm
- Contact Material: Copper alloy (tin/nickel plated)
- Insulation Material: PA66 / Nylon (flame‑retardant)
- Sealing Material: Silicone rubber
- Operating Temperature: -40°C to +105°C
Key Features
- 3‑Pin Configuration: Ideal for power or signal connections
- Waterproof & Dustproof: IP67/IP68 rated for severe conditions
- M25 Threaded Coupling: Secure and vibration‑resistant connection
- Robust Construction: High‑strength thermoplastic and metal contacts
- Sealed Design: Silicone gaskets prevent moisture ingress
- Wide Cable Compatibility: Works with 5–8 mm cable diameters
- Easy Assembly: Threaded connector allows simple installation
Applications
- Outdoor lighting and LED installations
- Industrial automation equipment
- Outdoor power distribution points
- Sensor and control signal wiring
- Marine and automotive electrical systems
- Construction and temporary power setups
