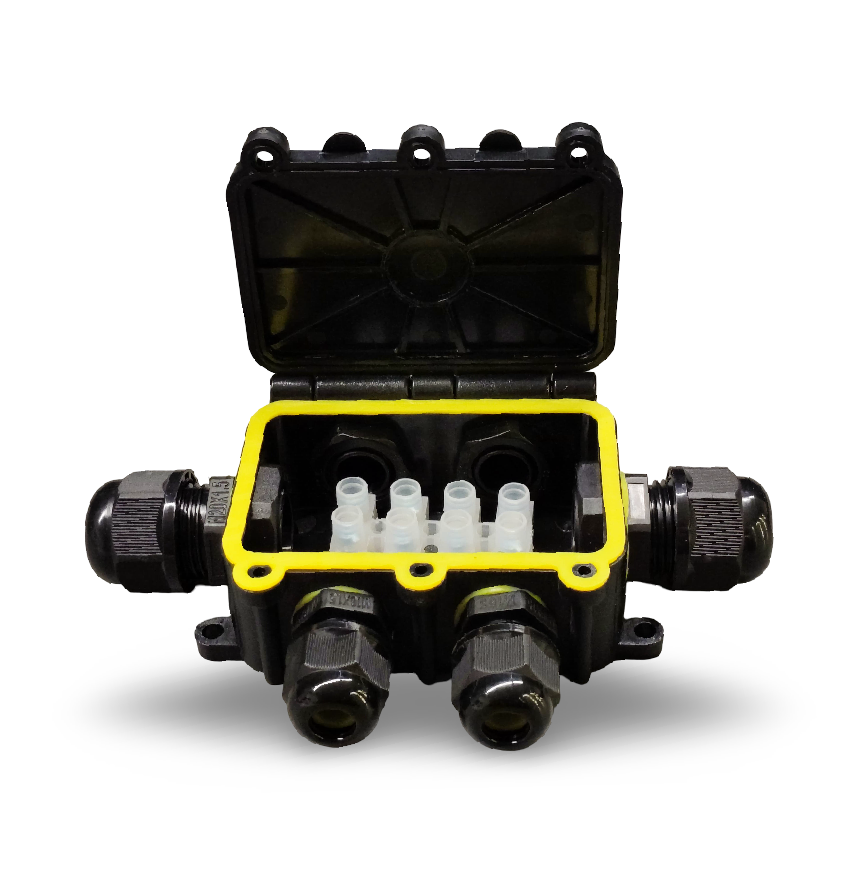

JG-M686-6
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 350
The JG‑M686‑6 is a premium waterproof cable gland from JIGO, designed with robust nylon construction and IP68 protection to ensure reliable, dust-tight, and water-resistant sealing for cables in industrial and outdoor environments.
Product Details
Model: JG‑M686‑6
Thread Sizes: M12 through M63 (industry-standard M‑thread range)
Cable Diameter Range: 3 mm – 44 mm (varies by thread size)
Grip Depth (GL): Typically 8 mm–20 mm
Overall Length (H): 21 mm–47 mm (depending on variant)
Body: Durable Nylon (PA, UV- and chemical-resistant)
Seal: Flexible NBR (Nitrile Rubber) ring
Protection Rating: Fully IP68—dust-tight and submersible
Temperature Range:
Static: –40 °C to +100 °C
Short-term: up to +120 °C
Dynamic use: –20 °C to +80 °C (briefly +120 °C)
Colors: Available in White, Grey, and Black
Mounting Style: Standard threaded gland with locknut—panel or enclosure mount
Key Features
Superior IP68 sealing ensures protection in the harshest environments
Wide cable compatibility supports a broad range of wire sizes from 3 mm to 44 mm
Rugged nylon housing resists UV exposure, chemicals, and physical impact
High-performance NBR seal for reliable leak-proof performance
Easy installation with standardized threads and spanner sizes
Temperature-resilient for both indoor and outdoor use
Applications
Cable entries for electrical & control panels
Enclosures in industrial & automation systems
Outdoor lighting, telecom, and CCTV installations
Solar, battery, and renewable energy inverter setups
Marine, HVAC, and exposed mechanical equipment
Any environment requiring effective waterproof and dustproof cable sealing
