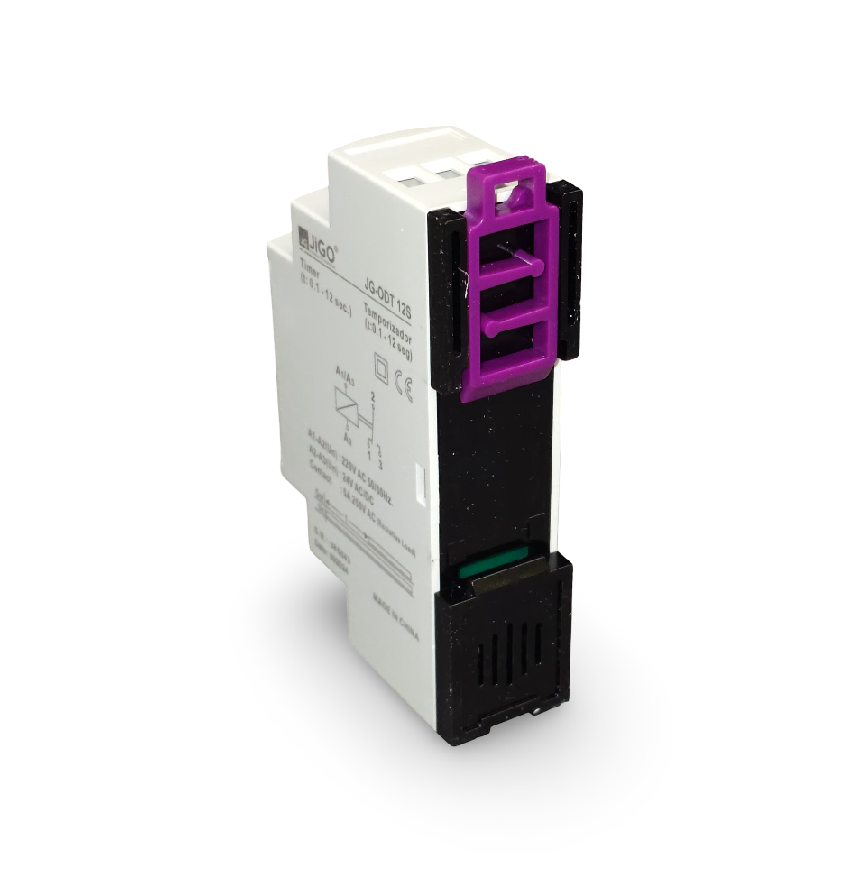

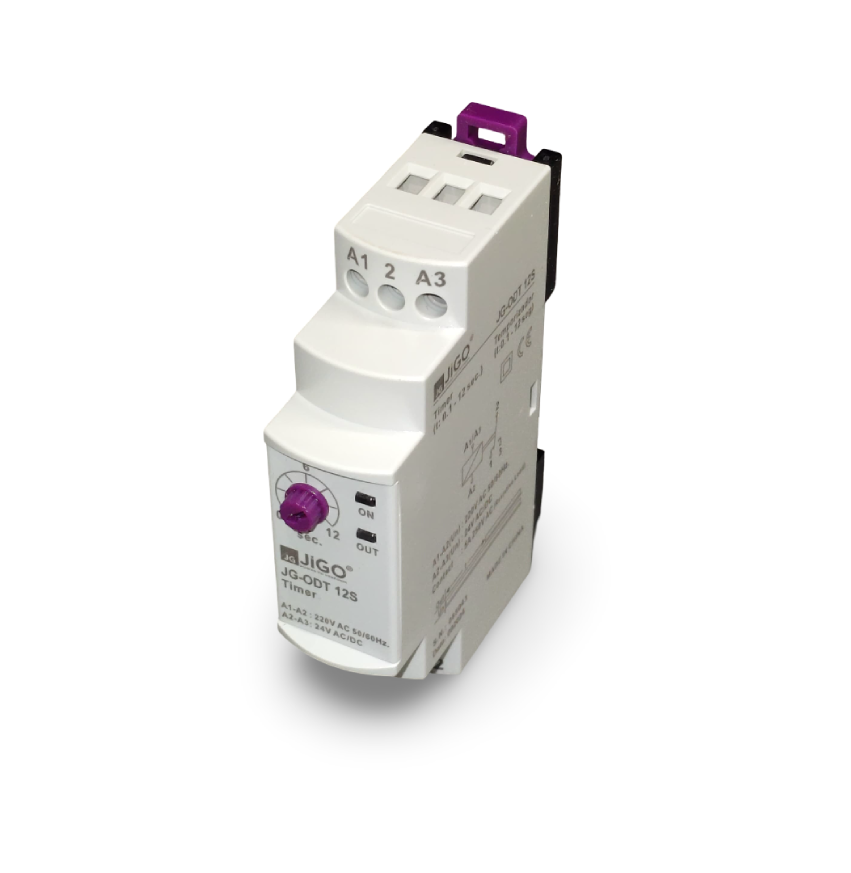

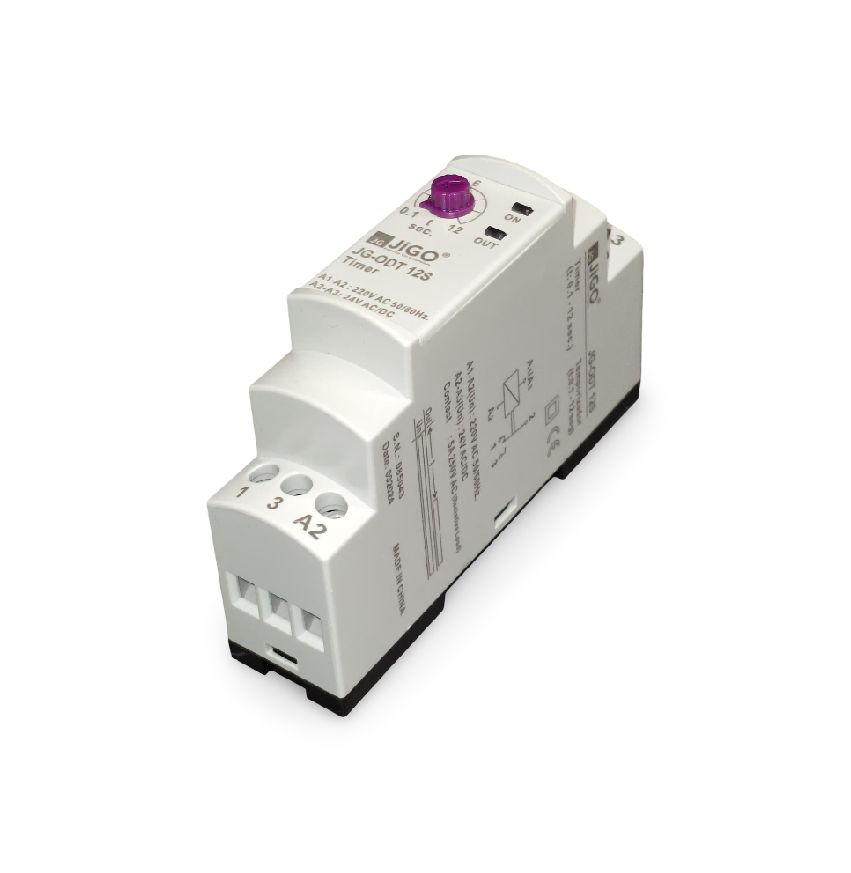

JG-ODT-12S Timer Relay
The JG-ODT-12S is a reliable analog on-delay timer designed to provide delayed switching in control circuits, suitable for both industrial and commercial applications.
Product Details:
Model: JG-ODT-12S
Function: ON Delay
Operating Voltage: 12V AC/DC
Time Range: 0.1 sec to 10 min (adjustable via knob)
Output Contact: 1 C/O (SPDT) – 5A @ 250VAC
Mounting Type: DIN rail mounting (35mm)
Housing Width: 22.5mm
Indication: LED indicators for power and output status
Accuracy: ±10% of full scale
Key Features:
Simple and easy-to-use analog time setting
Compact DIN rail design saves panel space
Clear status indication with dual LEDs
Stable and accurate time control
Maintenance-free, long-lasting performance
Applications:
Delay start for motors and pumps
Lighting and heating control systems
Conveyor and packaging machines
Sequential start/stop circuits
Industrial process automation
