JG-SF-25
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

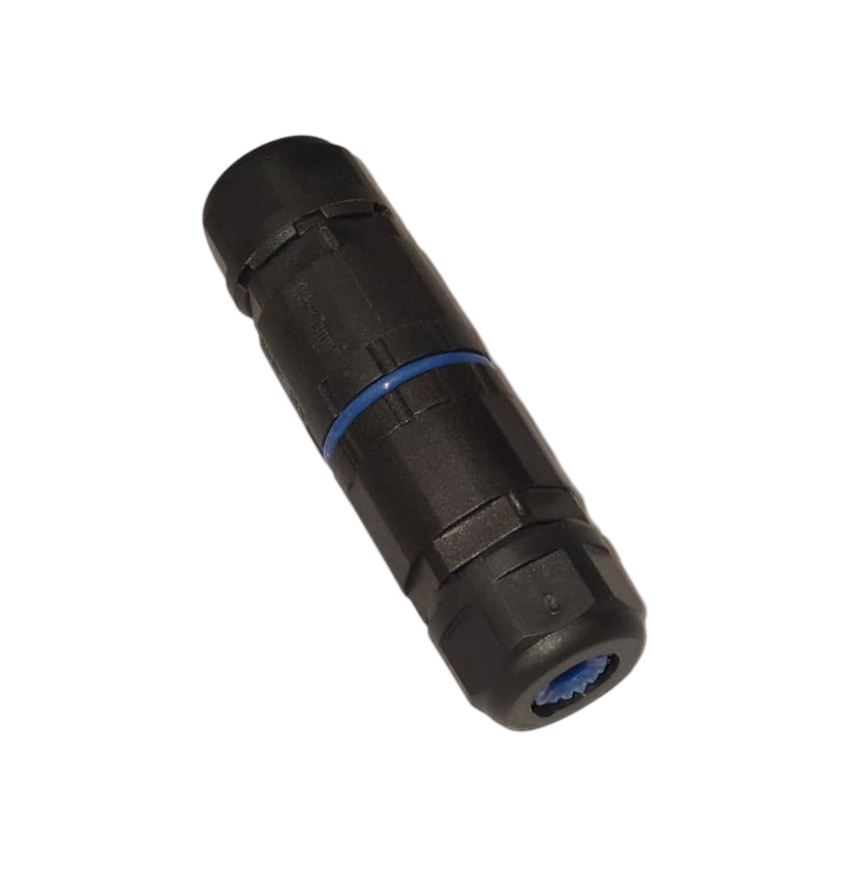

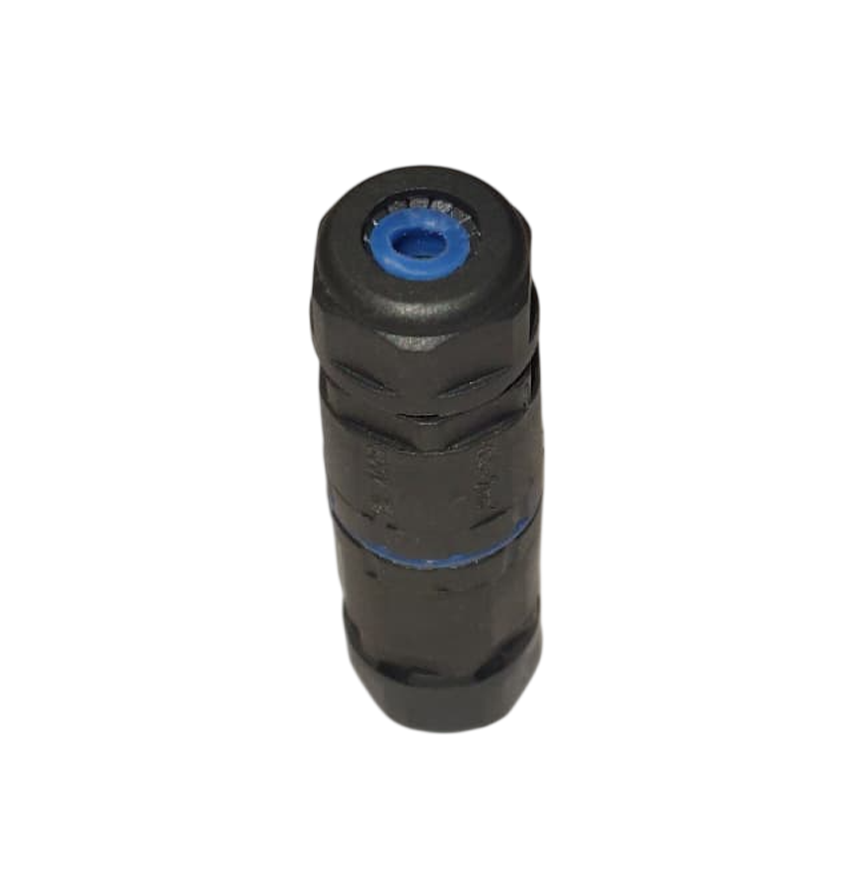

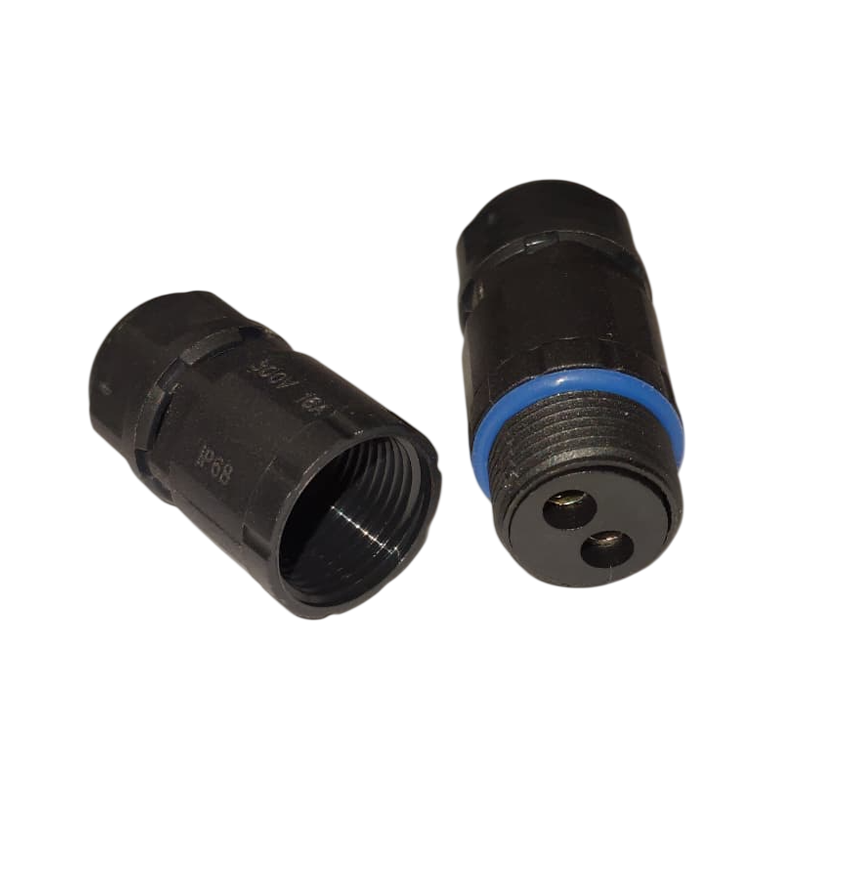

JG‑SF‑25 Waterproof Connector is a robust circular connector designed to deliver reliable, sealed electrical connections in harsh environments. With waterproof protection and secure coupling, it’s ideal for both power and signal applications where moisture, dust, and rough conditions are present.
Product Details
The SF series waterproof connectors are rugged IP67‑rated (dust‑tight and protected against temporary water immersion) circular connectors with a push‑pull coupling mechanism that provides a secure, single‑hand connection and quick, positive locking.
These connectors are typically constructed with durable metal or reinforced plastic housings, sealed contacts, and flexible cable options. They are well suited for cable‑to‑cable or cable‑to‑panel connections, offering choices in male or female ends and a variety of pin counts depending on the specific SF‑25 variant.
Typical Specifications (approx.):
- Connector Type: Circular waterproof connector
- Series: SF‑25 (part of SF waterproof push‑pull family)
- Protection Rating: IP67 (water & dust sealed)
- Coupling: Push‑pull locking for secure engagement
- Contact Options: Multiple pins (varies by version)
- Housing Material: Brass or reinforced plastic with surface treatment
- Contact Plating: Gold or tin‑plated for improved conductivity
- Mount Types: Cable mount or panel mount
Key Features
- IP67 Waterproof & Dustproof: Fully sealed for outdoor and harsh environments.
- Push‑Pull Locking: Ensures fast and secure connections with positive tactile engagement.
- Strong Housing: Rugged construction resists shock and vibration.
- Versatile Pin Configurations: Supports both signal and power circuits.
- Cable or Panel Mount: Flexible installation options.
- Reliable Contacts: Gold/tin plating for corrosion resistance and stable conductivity.
Applications
- Outdoor equipment (lighting, sensors, control systems)
- Industrial automation and machinery
- Marine and automotive systems
- Outdoor telecom and communication devices
- Solar and renewable energy installations
- Testing and medical equipment requiring sealed connections
