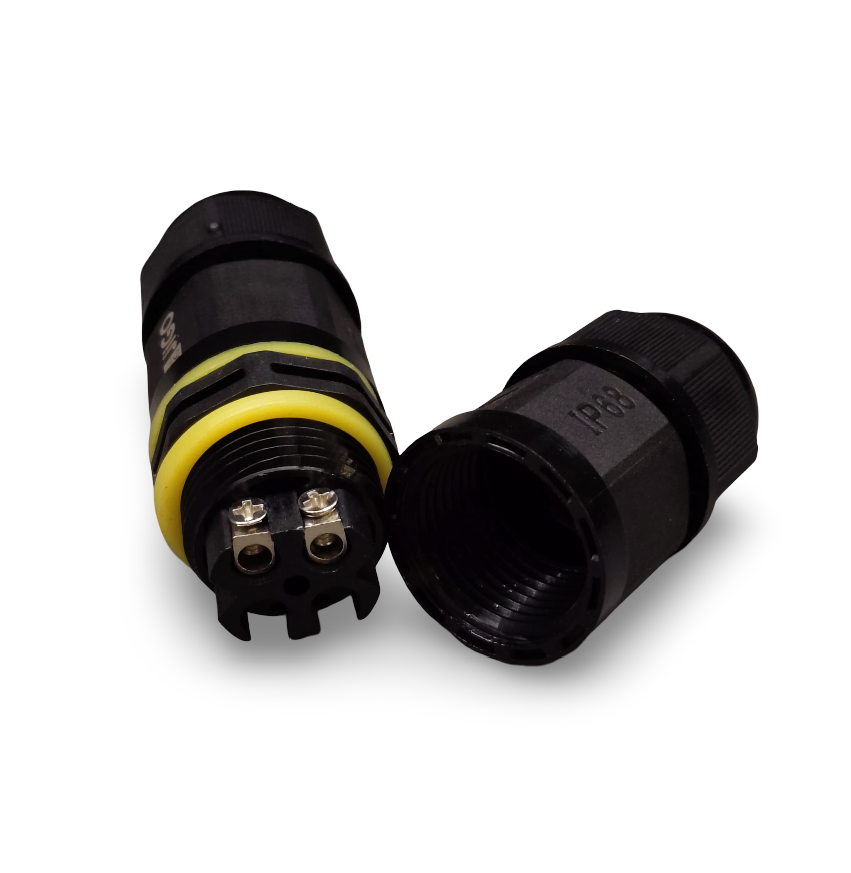

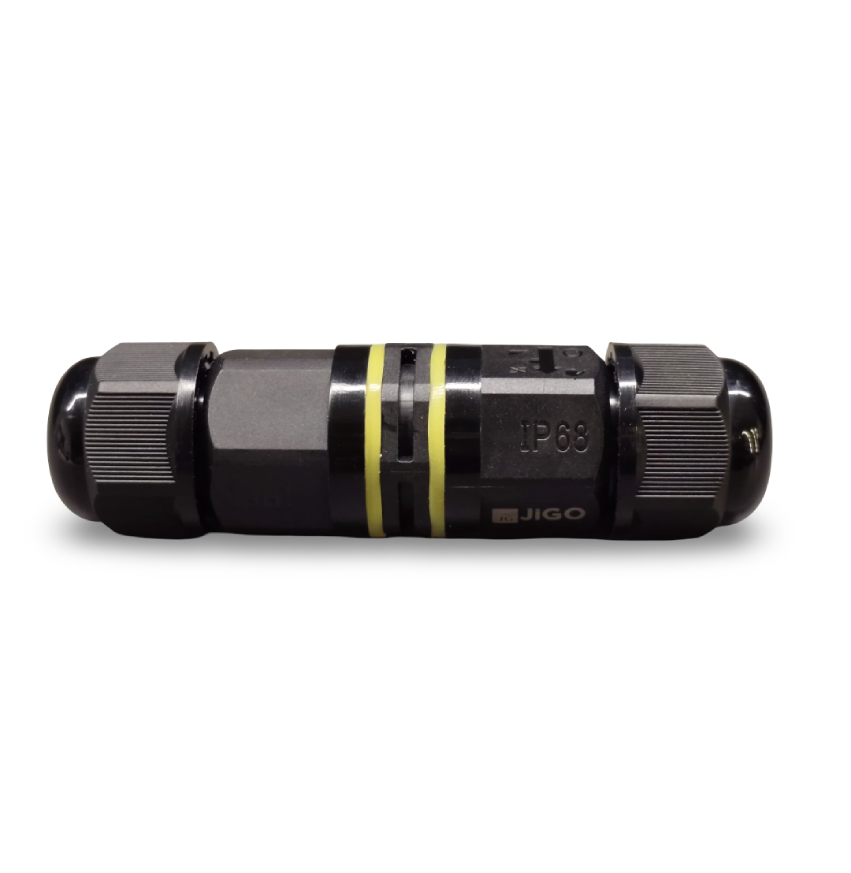

JG-YT M20-2 Waterproof Cable Connector
The JG‑YT M20‑2 by JIGO is a waterproof nylon cable gland featuring a standard M20×1.5 thread. With IP68 protection, it's designed to offer secure sealing and strain relief for cable entries in industrial, electrical, and outdoor environments.
Product Details
Model: JG‑YT M20‑2 (M‑thread series)
Thread Size: M20 × 1.5
Cable Diameter Range: ~6 – 12 mm
Grip Depth (GL): ~9 mm
Overall Length (H): ~27 mm
Spanner Size: ~24 mm — compatible with standard M20 installation tools
Material: Nylon (PA) body with NBR rubber sealing ring
Protection Rating: IP68 — resistant to dust ingress and submersible in water
Temperature Range:
Static: –40 °C to +100 °C (short-term up to +120 °C)
Dynamic: –20 °C to +80 °C (short bursts to +120 °C)
Colour Options: White, Grey, Black
Key Features
Full IP68 protection ensures a watertight and dust-tight seal
Nylon housing delivers UV, chemical, and impact resistance
NBR sealing ring guarantees secure grip and long-term leakage prevention
Standard M20 thread facilitates easy installation using locknut
Compact size & robust design for reliable strain relief and mechanical stability
Applications
Entry point for cables in electrical control panels and junction boxes
Outdoor lighting, security camera, and telecom installations
Solar inverter and battery enclosure cabling
Industrial machinery and automation setups
Marine, HVAC units, and any environment exposed to water or dust
