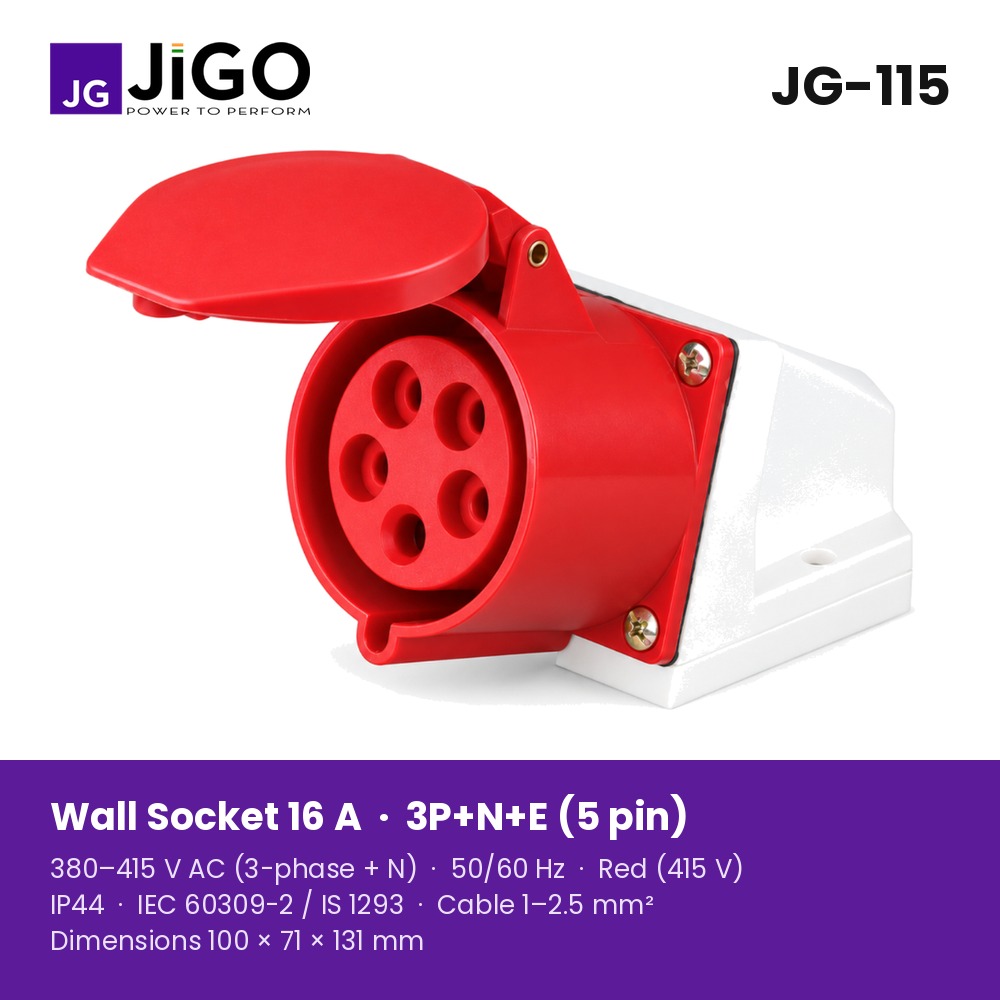

JiGO JG-115 Wall Socket 16 A 5-pin IP44
JiGO JG-115 surface / wall-mounting socket (female, fixed), 16 A, 3P+N+E (5 pin), 380–415 V AC (3-phase + N), IP44, red (415 V) body to IEC 60309-2. List ₹330 — ATC price ₹115 + GST.
The JiGO JG-115 is a 16 A 3P+N+E (5 pin) surface / wall-mounting socket (female, fixed) from JiGO's IEC 60309-2 industrial connector range. Rated 380–415 V AC (3-phase + N) at 50/60 Hz with the red (415 V) colour code and the 6h earth-contact position that makes IEC 60309 plugs and sockets of the same rating interchangeable across brands. The housing is impact-resistant, flame-retardant engineering plastic, contacts are solid brass with a spring-loaded earth-first design, and the protection class is IP44 splash-proof (indoor and covered outdoor use). Cable clamp and gland take 1–2.5 mm² flexible cable.
Mount on a wall, panel side or machine frame to feed the matching JiGO plug of the same rating and pin count. Typical uses: machine feeder points, workshop power outlets, pump houses, construction-site boards, cold rooms and event power.
Arjun Trading Company stocks the complete JiGO range — standard IP44, IP67 and 3rd-generation plugs, wall sockets, connector sockets, panel sockets, inlets, splitters and interlocked sockets from 16 A to 125 A — in Ludhiana for same-day dispatch, with JiGO cable glands and PVC cable to match.

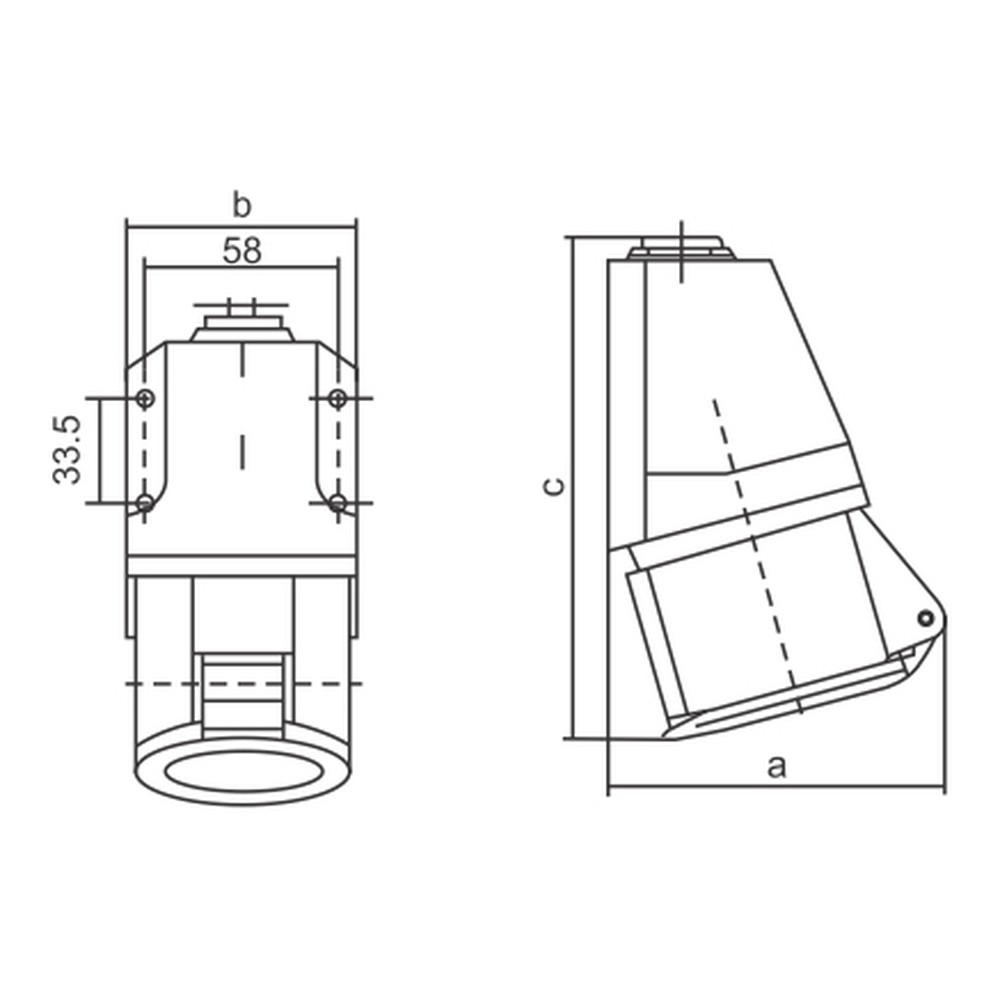

Model: JG-115 | Brand: JiGO | Type: surface / wall-mounting socket (female, fixed) | Series: Standard | Rated current: 16 A | Poles: 3P+N+E (5 pin) | Rated voltage: 380–415 V AC (3-phase + N) | Frequency: 50/60 Hz | Earth contact position: 6h | Colour code: red (415 V) | Degree of protection: IP44 | Dimensions: 100 × 71 × 131 mm | Cable cross-section: 1–2.5 mm² | Material: thermoplastic housing, brass contacts | Standard: IEC 60309-1 / IEC 60309-2 (IS 1293) | JiGO list price: ₹330 | ATC price: ₹115 + 18 % GST
Brand: JiGO (JiGO India — Hirawat Electricals Pvt. Ltd., Kolkata). Sold and supported by Arjun Trading Company, Ludhiana, Punjab — regular stock for immediate dispatch across India, GST invoice with every order. Call or WhatsApp +91 99887 74490 for quantity prices, matching plugs and sockets, cable glands and complete connection kits.
