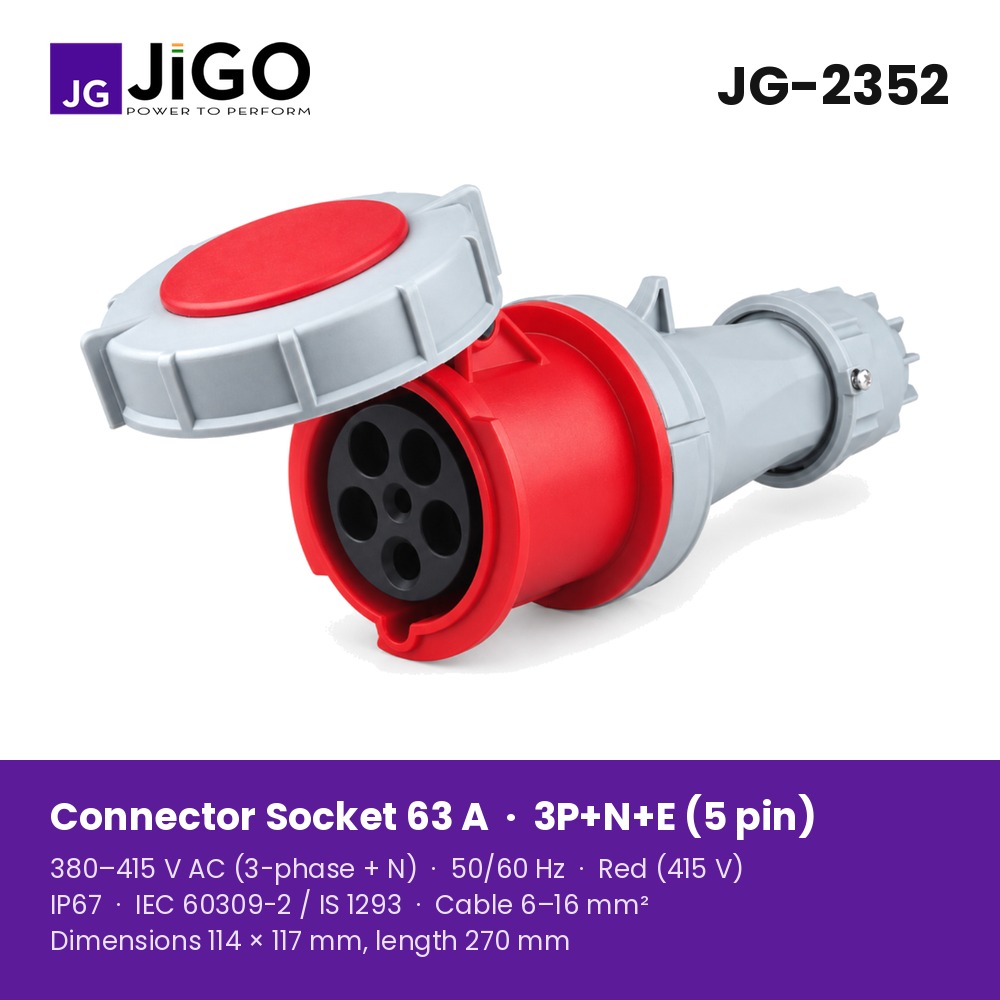

JiGO JG-2352 Connector Socket 63 A 5-pin IP67
JiGO JG-2352 straight connector socket (female, cable-mounted / trailing), 63 A, 3P+N+E (5 pin), 380–415 V AC (3-phase + N), IP67, red (415 V) body to IEC 60309-2. List ₹2,250 — ATC price ₹788 + GST.
The JiGO JG-2352 is a 63 A 3P+N+E (5 pin) straight connector socket (female, cable-mounted / trailing) from JiGO's IEC 60309-2 industrial connector range — IP67 series. Rated 380–415 V AC (3-phase + N) at 50/60 Hz with the red (415 V) colour code and the 6h earth-contact position that makes IEC 60309 plugs and sockets of the same rating interchangeable across brands. The housing is impact-resistant, flame-retardant engineering plastic, contacts are solid brass with a spring-loaded earth-first design, and the protection class is IP67 dust-tight and immersion-proof with screw-cap sealing (outdoor, washdown and marine duty). Cable clamp and gland take 6–16 mm² flexible cable.
Fitted on the end of a cable to extend a line or make a trailing outlet; mates with the matching JiGO plug of the same rating and pin count. Typical uses: extension cords, generator leads, temporary site power, event and stage supplies.
Arjun Trading Company stocks the complete JiGO range — standard IP44, IP67 and 3rd-generation plugs, wall sockets, connector sockets, panel sockets, inlets, splitters and interlocked sockets from 16 A to 125 A — in Ludhiana for same-day dispatch, with JiGO cable glands and PVC cable to match.

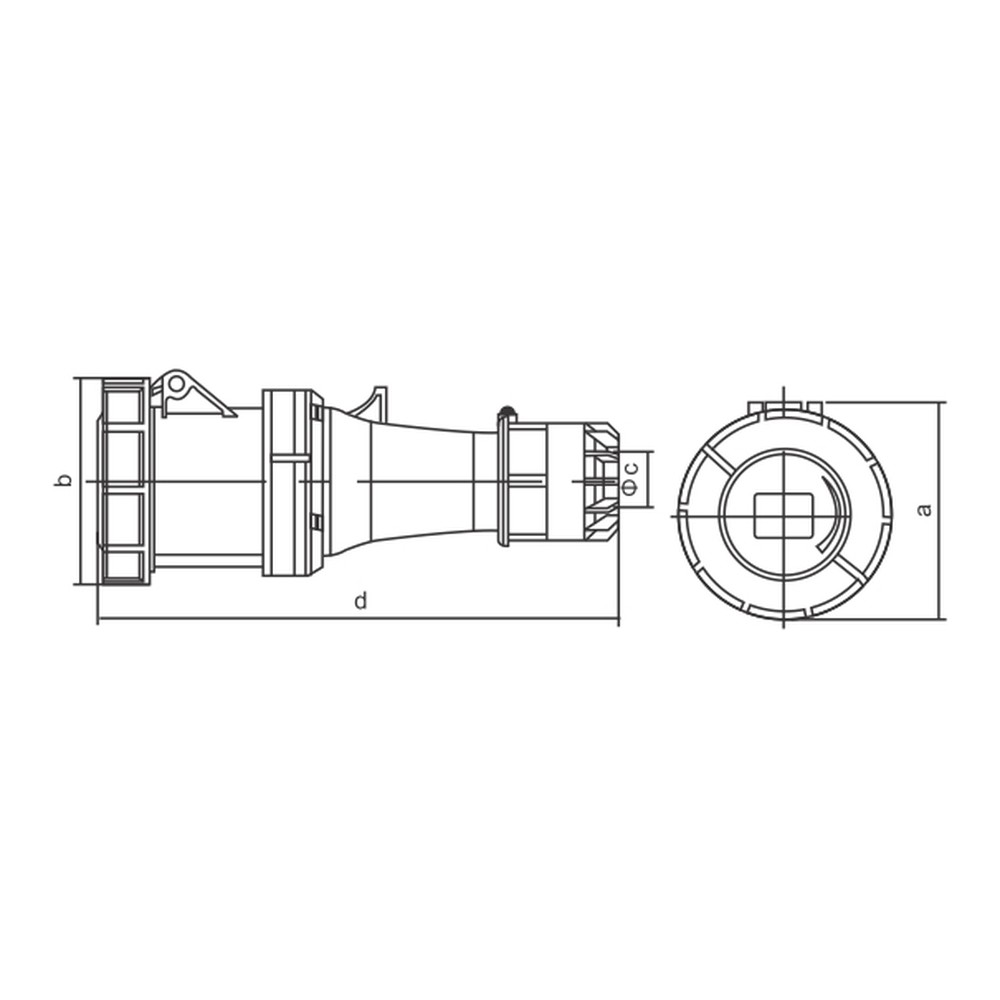

Model: JG-2352 | Brand: JiGO | Type: straight connector socket (female, cable-mounted / trailing) | Series: IP67 | Rated current: 63 A | Poles: 3P+N+E (5 pin) | Rated voltage: 380–415 V AC (3-phase + N) | Frequency: 50/60 Hz | Earth contact position: 6h | Colour code: red (415 V) | Degree of protection: IP67 | Dimensions: 114 × 117 mm, length 270 mm | Cable cross-section: 6–16 mm² | Material: thermoplastic housing, brass contacts | Standard: IEC 60309-1 / IEC 60309-2 (IS 1293) | JiGO list price: ₹2,250 | ATC price: ₹788 + 18 % GST
Brand: JiGO (JiGO India — Hirawat Electricals Pvt. Ltd., Kolkata). Sold and supported by Arjun Trading Company, Ludhiana, Punjab — regular stock for immediate dispatch across India, GST invoice with every order. Call or WhatsApp +91 99887 74490 for quantity prices, matching plugs and sockets, cable glands and complete connection kits.
