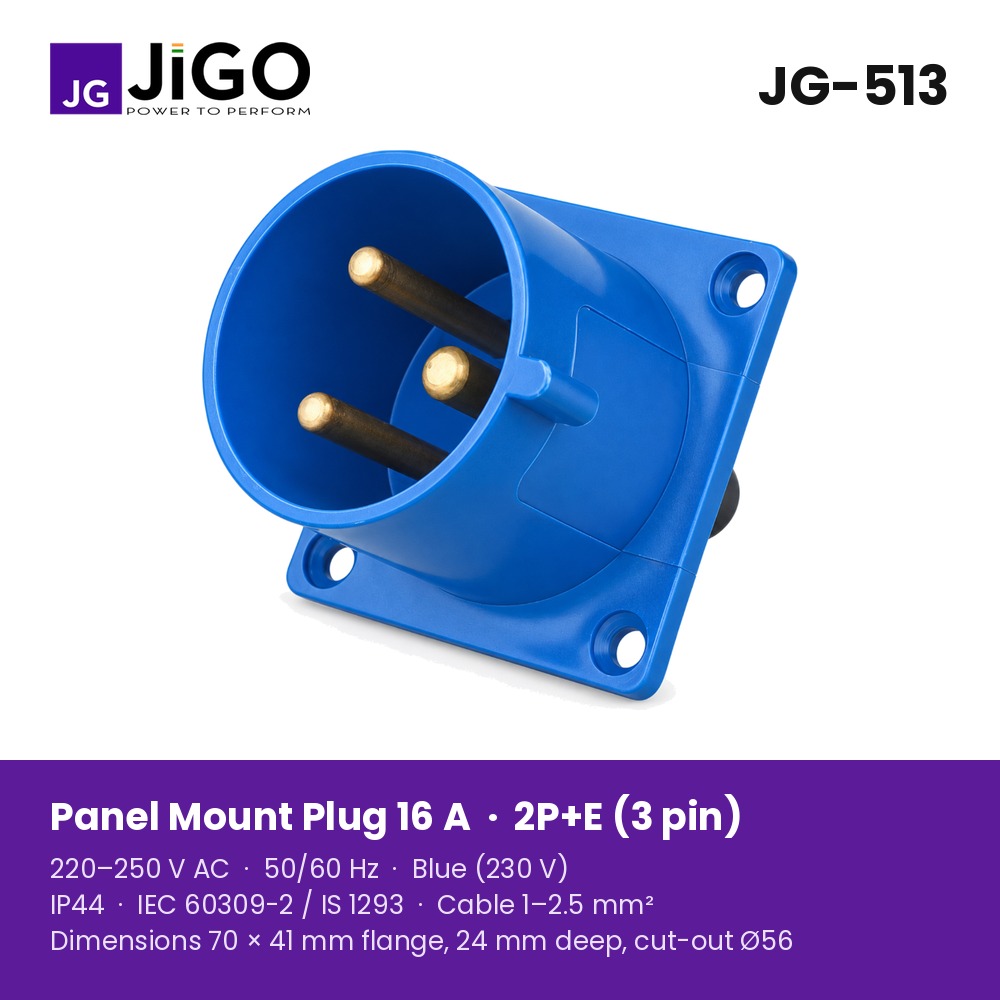

JiGO JG-513 Panel Mount Plug 16 A 3-pin IP44
JiGO JG-513 panel-mounting plug / appliance inlet (male, flange), 16 A, 2P+E (3 pin), 220–250 V AC, IP44, blue (230 V) body to IEC 60309-2. JiGO catalogue code JG-613. List ₹275 — ATC price ₹96 + GST.
The JiGO JG-513 is a 16 A 2P+E (3 pin) panel-mounting plug / appliance inlet (male, flange) from JiGO's IEC 60309-2 industrial connector range. Rated 220–250 V AC at 50/60 Hz with the blue (230 V) colour code and the 6h earth-contact position that makes IEC 60309 plugs and sockets of the same rating interchangeable across brands. The housing is impact-resistant, flame-retardant engineering plastic, contacts are solid brass with a spring-loaded earth-first design, and the protection class is IP44 splash-proof (indoor and covered outdoor use). Cable clamp and gland take 1–2.5 mm² flexible cable.
Mounts through a panel cut-out so the machine or enclosure takes a JiGO connector socket on the supply cable — the detachable-cord inlet for machines, portable panels and generators.
Arjun Trading Company stocks the complete JiGO range — standard IP44, IP67 and 3rd-generation plugs, wall sockets, connector sockets, panel sockets, inlets, splitters and interlocked sockets from 16 A to 125 A — in Ludhiana for same-day dispatch, with JiGO cable glands and PVC cable to match.

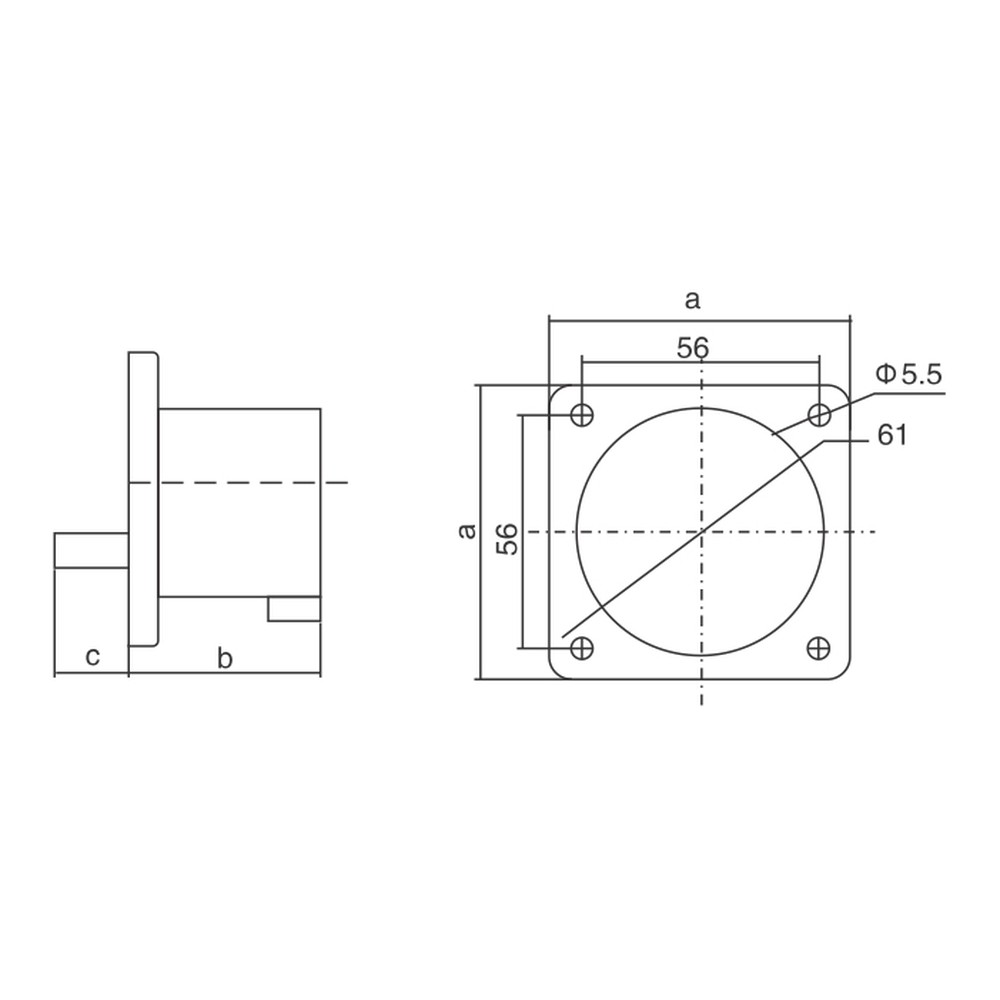

Model: JG-513 | Brand: JiGO | Type: panel-mounting plug / appliance inlet (male, flange) | Series: Standard | Rated current: 16 A | Poles: 2P+E (3 pin) | Rated voltage: 220–250 V AC | Frequency: 50/60 Hz | Earth contact position: 6h | Colour code: blue (230 V) | Degree of protection: IP44 | Dimensions: 70 × 41 mm flange, 24 mm deep, cut-out Ø56 | Cable cross-section: 1–2.5 mm² | Material: thermoplastic housing, brass contacts | Standard: IEC 60309-1 / IEC 60309-2 (IS 1293) | Note: JiGO catalogue code JG-613 | JiGO list price: ₹275 | ATC price: ₹96 + 18 % GST
Brand: JiGO (JiGO India — Hirawat Electricals Pvt. Ltd., Kolkata). Sold and supported by Arjun Trading Company, Ludhiana, Punjab — regular stock for immediate dispatch across India, GST invoice with every order. Call or WhatsApp +91 99887 74490 for quantity prices, matching plugs and sockets, cable glands and complete connection kits.
