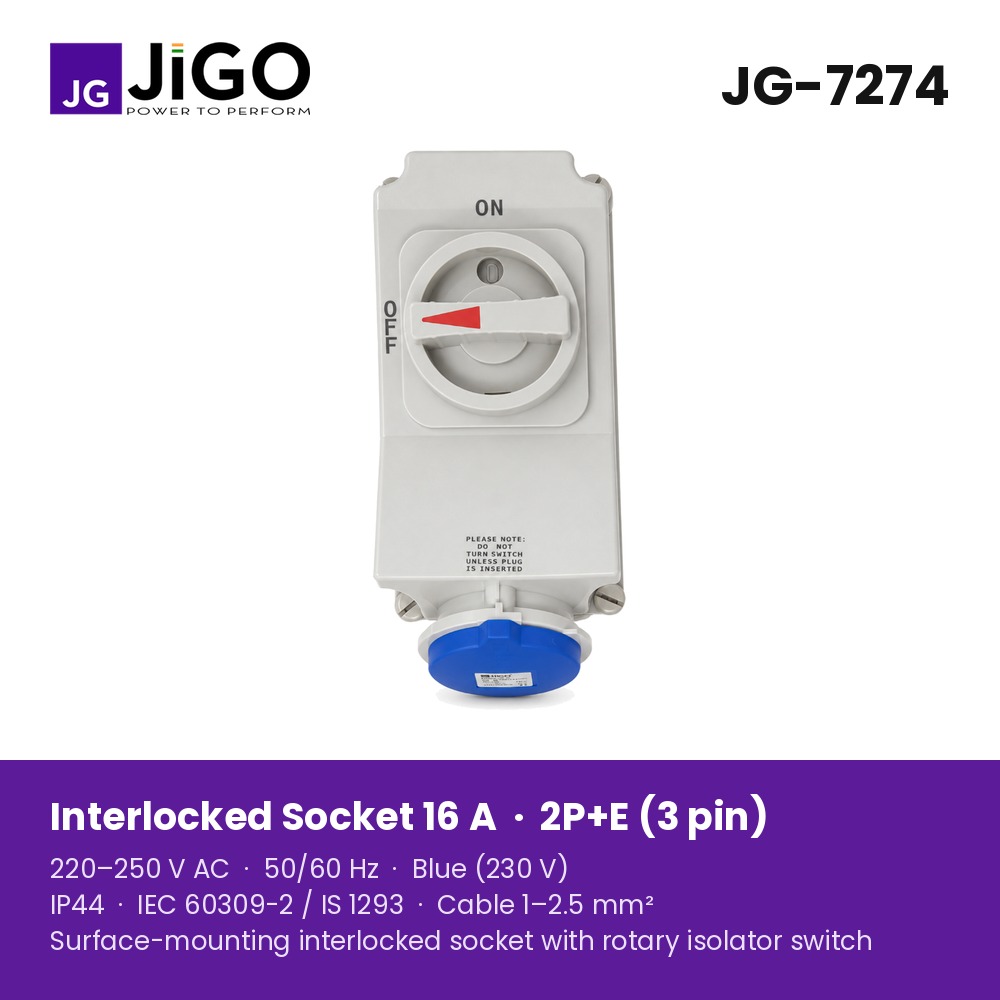

JiGO JG-7274 Interlocked Socket with Switch 16 A 3-pin IP44
JiGO JG-7274 mechanically interlocked socket with isolator switch, 16 A, 2P+E (3 pin), 220–250 V AC, IP44, blue (230 V) body to IEC 60309-2. socket can only be opened / withdrawn with the switch OFF. List ₹5,500 — ATC price ₹1,925 + GST.
The JiGO JG-7274 is a 16 A 2P+E (3 pin) mechanically interlocked socket with isolator switch from JiGO's IEC 60309-2 industrial connector range. Rated 220–250 V AC at 50/60 Hz with the blue (230 V) colour code and the 6h earth-contact position that makes IEC 60309 plugs and sockets of the same rating interchangeable across brands. The housing is impact-resistant, flame-retardant engineering plastic, contacts are solid brass with a spring-loaded earth-first design, and the protection class is IP44 splash-proof (indoor and covered outdoor use). Cable clamp and gland take 1–2.5 mm² flexible cable.
The rotary switch must be OFF before the plug can be inserted or withdrawn, so the socket is never made or broken on load. For motors, welding sets and machines where arcing at the plug must be avoided.
Arjun Trading Company stocks the complete JiGO range — standard IP44, IP67 and 3rd-generation plugs, wall sockets, connector sockets, panel sockets, inlets, splitters and interlocked sockets from 16 A to 125 A — in Ludhiana for same-day dispatch, with JiGO cable glands and PVC cable to match.
Model: JG-7274 | Brand: JiGO | Type: mechanically interlocked socket with isolator switch | Series: Standard | Rated current: 16 A | Poles: 2P+E (3 pin) | Rated voltage: 220–250 V AC | Frequency: 50/60 Hz | Earth contact position: 6h | Colour code: blue (230 V) | Degree of protection: IP44 | Dimensions: Surface-mounting interlocked socket with rotary isolator switch | Cable cross-section: 1–2.5 mm² | Material: thermoplastic housing, brass contacts | Standard: IEC 60309-1 / IEC 60309-2 (IS 1293) | Note: socket can only be opened / withdrawn with the switch OFF | JiGO list price: ₹5,500 | ATC price: ₹1,925 + 18 % GST
Brand: JiGO (JiGO India — Hirawat Electricals Pvt. Ltd., Kolkata). Sold and supported by Arjun Trading Company, Ludhiana, Punjab — regular stock for immediate dispatch across India, GST invoice with every order. Call or WhatsApp +91 99887 74490 for quantity prices, matching plugs and sockets, cable glands and complete connection kits.
